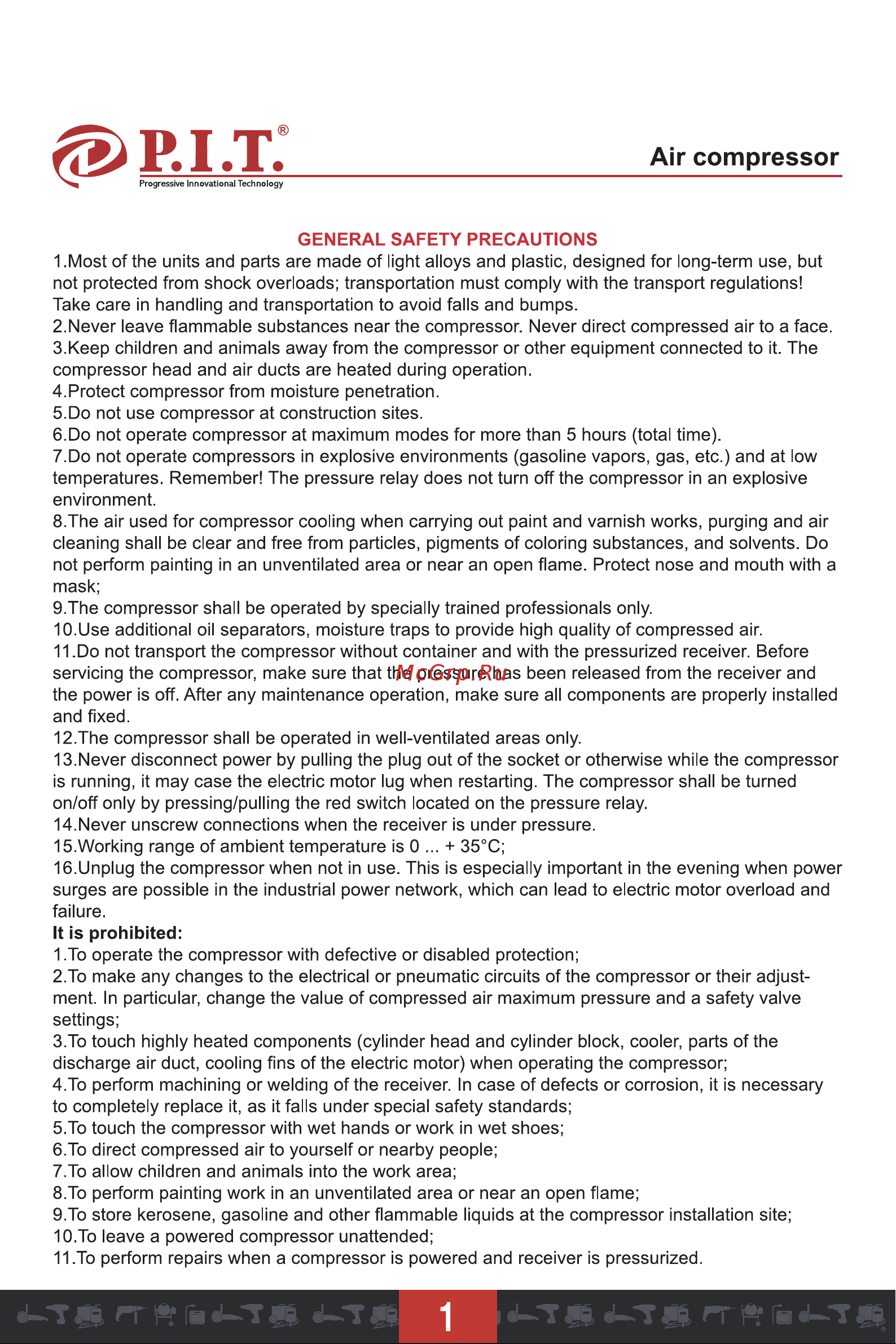

Air compressor GENERAL SAFETY PRECAUTIONS 1 Most of the units and parts are made of light alloys and plastic designed for long term use but not protected from shock overloads transportation must comply with the transport regulations Take care in handling and transportation to avoid falls and bumps 2 Never leave flammable substances near the compressor Never direct compressed air to a face 3 Keep children and animals away from the compressor or other equipment connected to it The compressor head and air ducts are heated during operation 4 Protect compressor from moisture penetration 5 Do not use compressor at construction sites 6 Do not operate compressor at maximum modes for more than 5 hours total time 7 Do not operate compressors in explosive environments gasoline vapors gas etc and at low temperatures Remember The pressure relay does not turn off the compressor in an explosive environment 8 The air used for compressor cooling when carrying out paint and varnish works purging and air cleaning shall be clear and free from particles pigments of coloring substances and solvents Do not perform painting in an unventilated area or near an open flame Protect nose and mouth with a mask 9 The compressor shall be operated by specially trained professionals only 10 Use additional oil separators moisture traps to provide high quality of compressed air 11 Do not transport the compressor without container and with the pressurized receiver Before servicing the compressor make sure that the pressure has been released from the receiver and the power is off After any maintenance operation make sure all components are properly installed and fixed 12 The compressor shall be operated in well ventilated areas only 13 Never disconnect power by pulling the plug out of the socket or otherwise while the compressor is running it may case the electric motor lug when restarting The compressor shall be turned on off only by pressing pulling the red switch located on the pressure relay 14 Never unscrew connections when the receiver is under pressure 15 Working range of ambient temperature is 0 35 C 16 Unplug the compressor when not in use This is especially important in the evening when power surges are possible in the industrial power network which can lead to electric motor overload and failure It is prohibited 1 To operate the compressor with defective or disabled protection 2 To make any changes to the electrical or pneumatic circuits of the compressor or their adjust ment In particular change the value of compressed air maximum pressure and a safety valve settings 3 To touch highly heated components cylinder head and cylinder block cooler parts of the discharge air duct cooling fins of the electric motor when operating the compressor 4 To perform machining or welding of the receiver In case of defects or corrosion it is necessary to completely replace it as it falls under special safety standards 5 To touch the compressor with wet hands or work in wet shoes 6 To direct compressed air to yourself or nearby people 7 To allow children and animals into the work area 8 To perform painting work in an unventilated area or near an open flame 9 To store kerosene gasoline and other flammable liquids at the compressor installation site 10 To leave a powered compressor unattended 11 To perform repairs when a compressor is powered and receiver is pressurized 1
