Sirius SL 107 [12/16] Схема подключения sltc 107 g 900

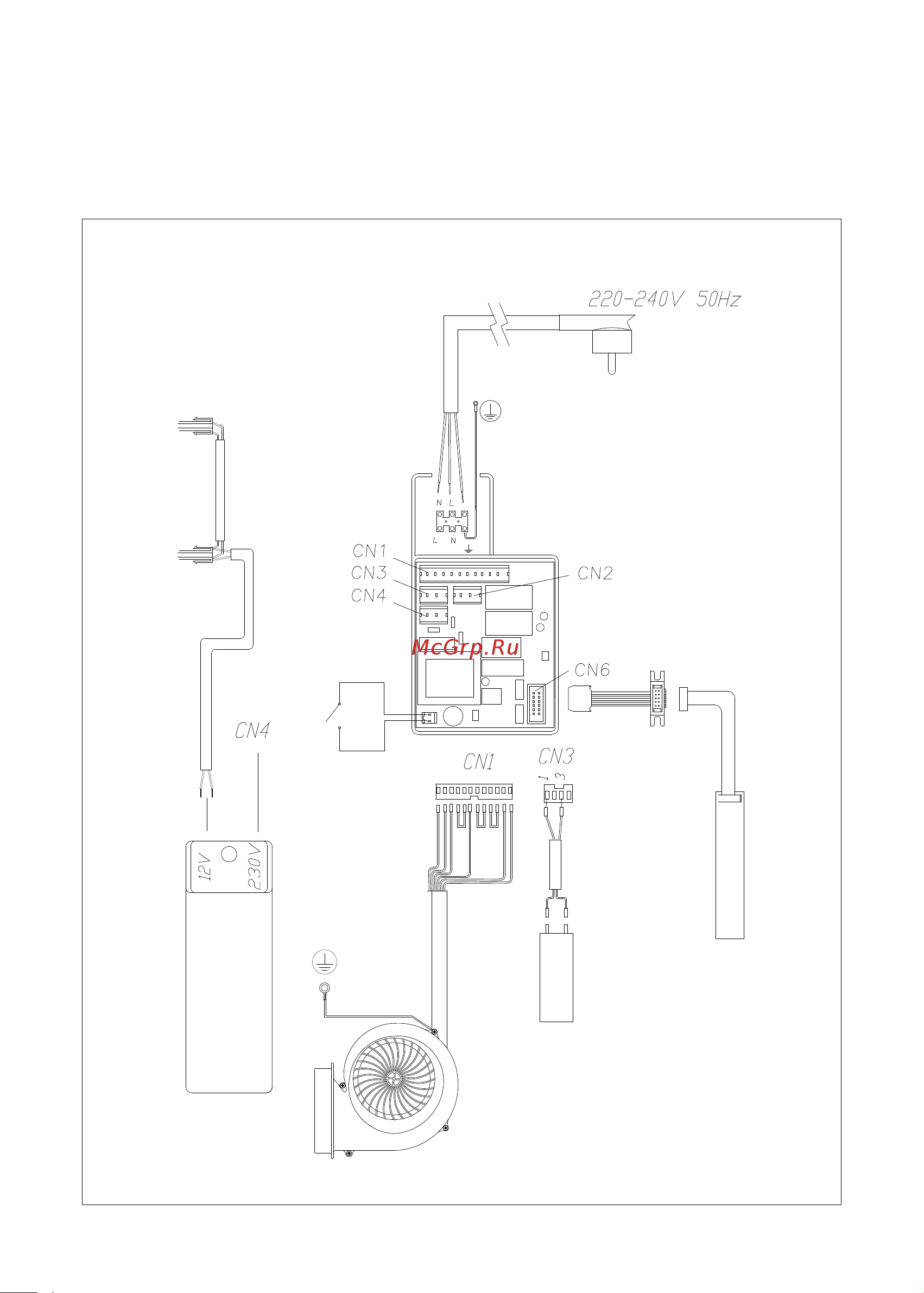

СХЕМА ПОДКЛЮЧЕНИЯ

SLTC 107 G 900

СВЕТОДИОДНАЯ ПАНЕЛЬ

СЕНСОРНОЕ УПРАВЛЕНИЕ

КОНДЕНСАТОР

ТРАНСФОРМАТОР

ЭФУ

жёлтый / зелёный
