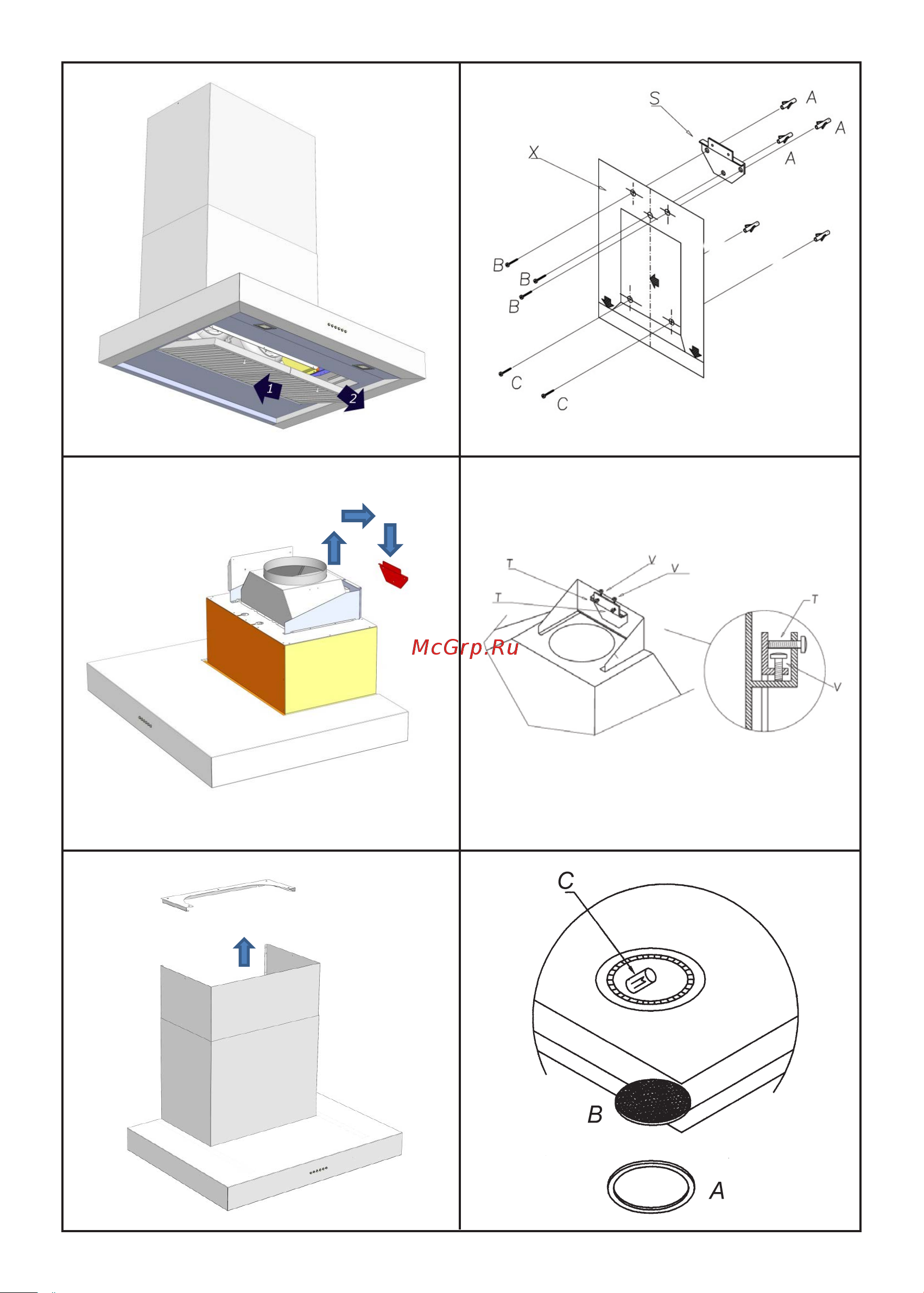

Fig. 2

Содержание

Руководство по установке эксплуатации и обслуживанию 1
Содержание 4
Предупреждения 5
An accurate maintenance guarantees good functioning and long lasting performance particular care is due to the grease filter panel it can be removed by pushing its special handle toward the back side of the cooker hood and turning the filter downwards so to unfasten it from its slot fig to insert the filter just perform the opposite operation after 30 hours working the push button control panel will signal the saturation of the grease filter by lighting all the buttons 6
By using the special drilling jig fig 2 x perforate the wall according to the pattern indicated by the jig itself and pay attention in order not to damage water pipes and electric wires perforation should be performed with a ø 8 mm wall drill then insert into the proper plastic reinforcements fig a the hood bearing stirrup fig 2 s can be applied by using the screws provided with the equipment fig b now hook the cooker hood onto its bearing fig and then adjust horizontally and vertically the position of the appliance by acting on the special metric screws fig 4 v t 6
Fix the supporting bracket of the chimney to the wall or to to ceiling fig 5 install both chimneys in their suitable place above the hood then lift the upper chimney the internal one until it reaches the supporting bracket previously installed fix the upper chimney both in the right and in the left side through the two screws supplied 6
Fixing the ornamental chimney before fixing the chimney place the electric feeding equipment into the ornamental pipe and provide it with a hole for the air outlet if the appliance is used in its sucking version 6
If the supply cord is damaged it must be replaced by the manufacturer or its sevice agent or a similarly qualified person in order to avoid a hazard 6
Maintenance 6
Mod sl a light switch on off b motor switch on off 1st rate level c 2nd rate level switch d 3rd rate level switch e 4th rate level switch f 10 minute timer 6
The grease filter needs cleaning by regular hand washing or in dishwashers every two months at least or depending on its use 6
To clean the appliance itself tepid water and neutral detergent are recommended while abrasive products should be avoided for steel appliances specialized detergents are recommended please follow the instructions indicated o the product itself to obtain the desired results 6
To replace the bulbs in the square lights press the light frame where it says push fig 6 and fig 7 then replace the bulb and press the frame back into place 6
Working 6
Работа 6
Установка 6
Обслуживание 7
Вход 8
Выход 8
Жёлтый зелёный 8
Конденсатор 8
Схема подключения sl 80 fresco 900 sl 80 fresco 1200 8
Схема подключения sl 107 s 1200 10
Схема подключения sl em107 s 900 sl em107 s 1200 11
Схема подключения sltc 107 g 900 12
Схема подключения sltc em107 13
