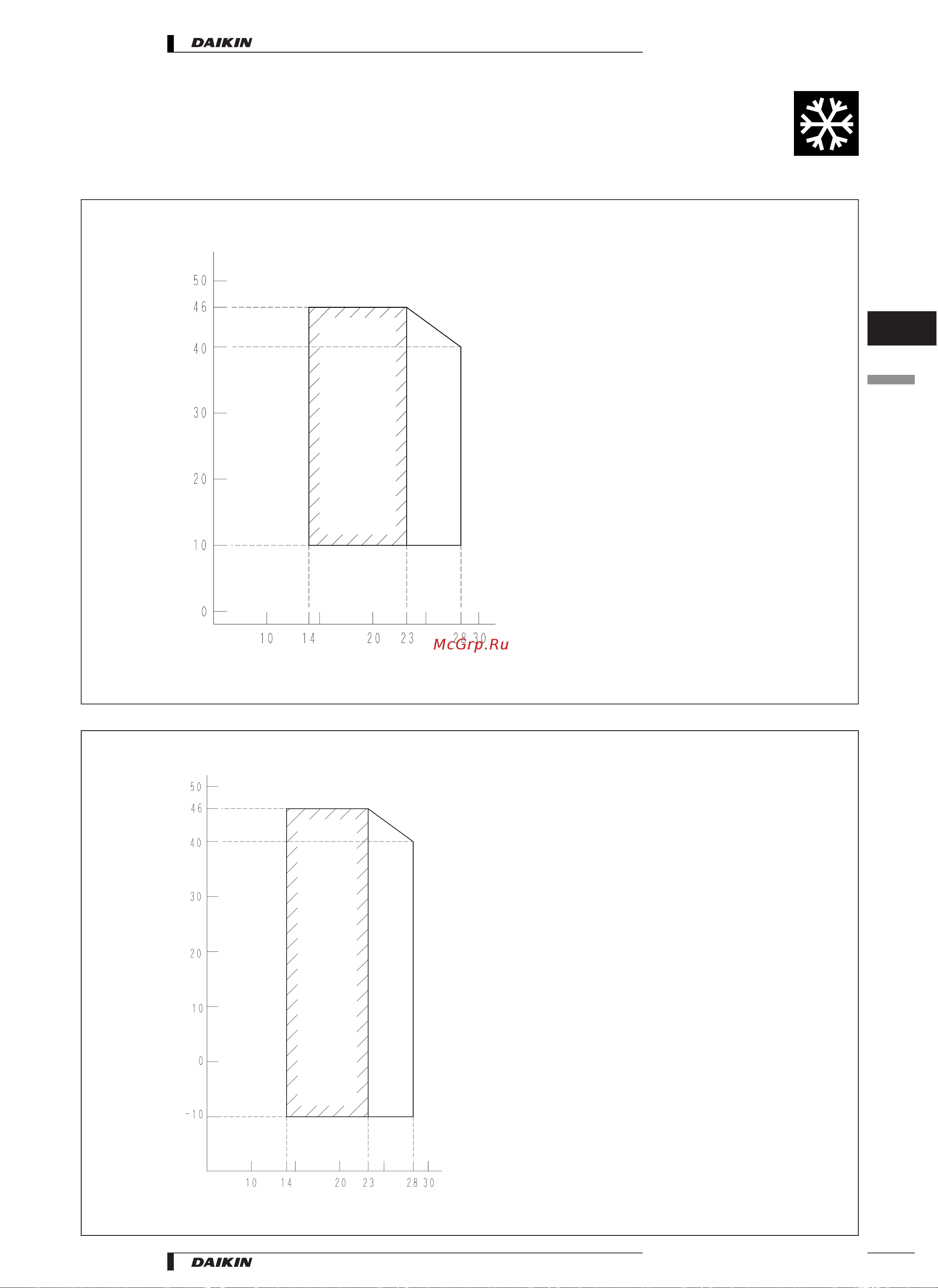

Operation range
RN20,25,35C
4D044283
Outdoor temp. (°CDB)
Pull-down period
Indoor temp. (°CWB)
Notes:
The graph is based on the following conditions:
1. Equivalent piping length 7.5 m
2. Level difference 0 m
3. Air flow rate high
RS50,60B
4D029297B
Outdoor temp. (°CDB)
Pull-down period
Indoor temp. (°CWB)
Notes:
The graph is based on the following conditions:
1. Equivalent piping length 7.5 m
2. Level difference 0 m
3. Air flow rate high
•
Pair Application •
R-410A •
RN20,25,35CVMB • RS50,60BVMB
26
5
467
• Split - Sky Air • Outdoor Units
