11
Installation

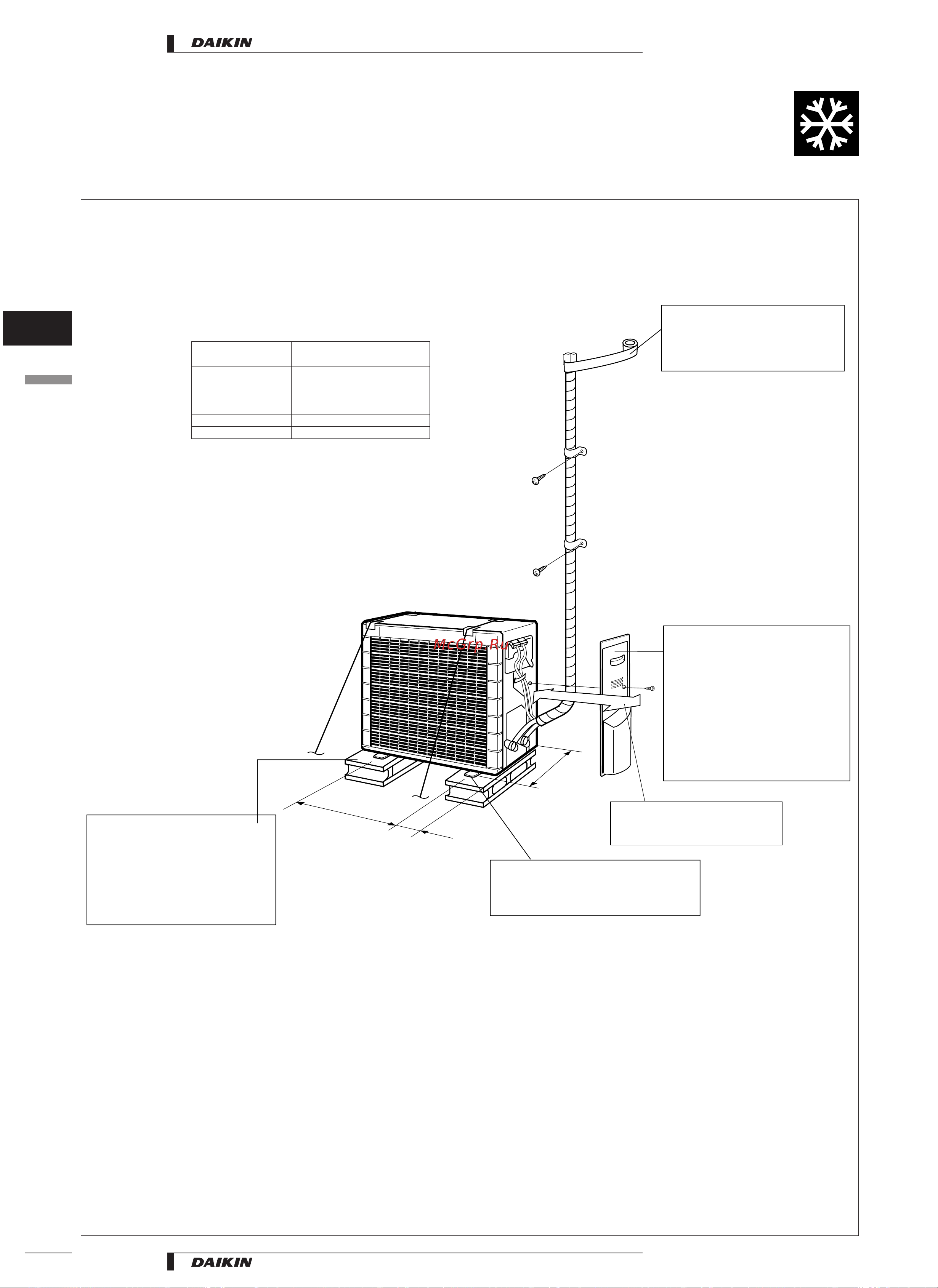

Outdoor unit installation drawings
Wrap the installation pipe with the finishing tape
from bottom to top
Model 20 / 25 / 35 class
Max. allowable length 15m
Max. allowable height 15m
Additional refrigerant required
for refrigerant pipe exceeding
10 m in length.
20 g/m
Gas pipe O.D. 9.5 mm
Liquid pipe O.D. 6.4 mm
* Be sure to add the proper amount of additional refrigerant.
Failure to do so may result in reduced performance.
In sites with poor drainage, use block bases for
outdoor unit. Adjust foot height until the unit is
leveled. Otherwise, water leakage or pooling of water
may occur.
Where there is a danger of the unit falling, use foot bolts, or
wires.
Allow space for piping and electrical servicing.
Service lid
How to remove the service lid.
+
This service lid is an open/close type.
+
Slide the lid downward to remove it.
How to attach the service lid.
+
Insert the upper part of the service lid into the
outdoor unit to install.
+
Tighten the screws.
Foot bolt-hole
centres
Foot bolt-hole
centres
From unit’s side
470
115
288
250 mm from wall
RN20,25,35C
•
Pair Application •
R-410A •
RN20,25,35CVMB • RS50,60BVMB
26
11
476
• Split - Sky Air • Outdoor Units
