Indoor Unit SiBE041010
118 Removal Procedure

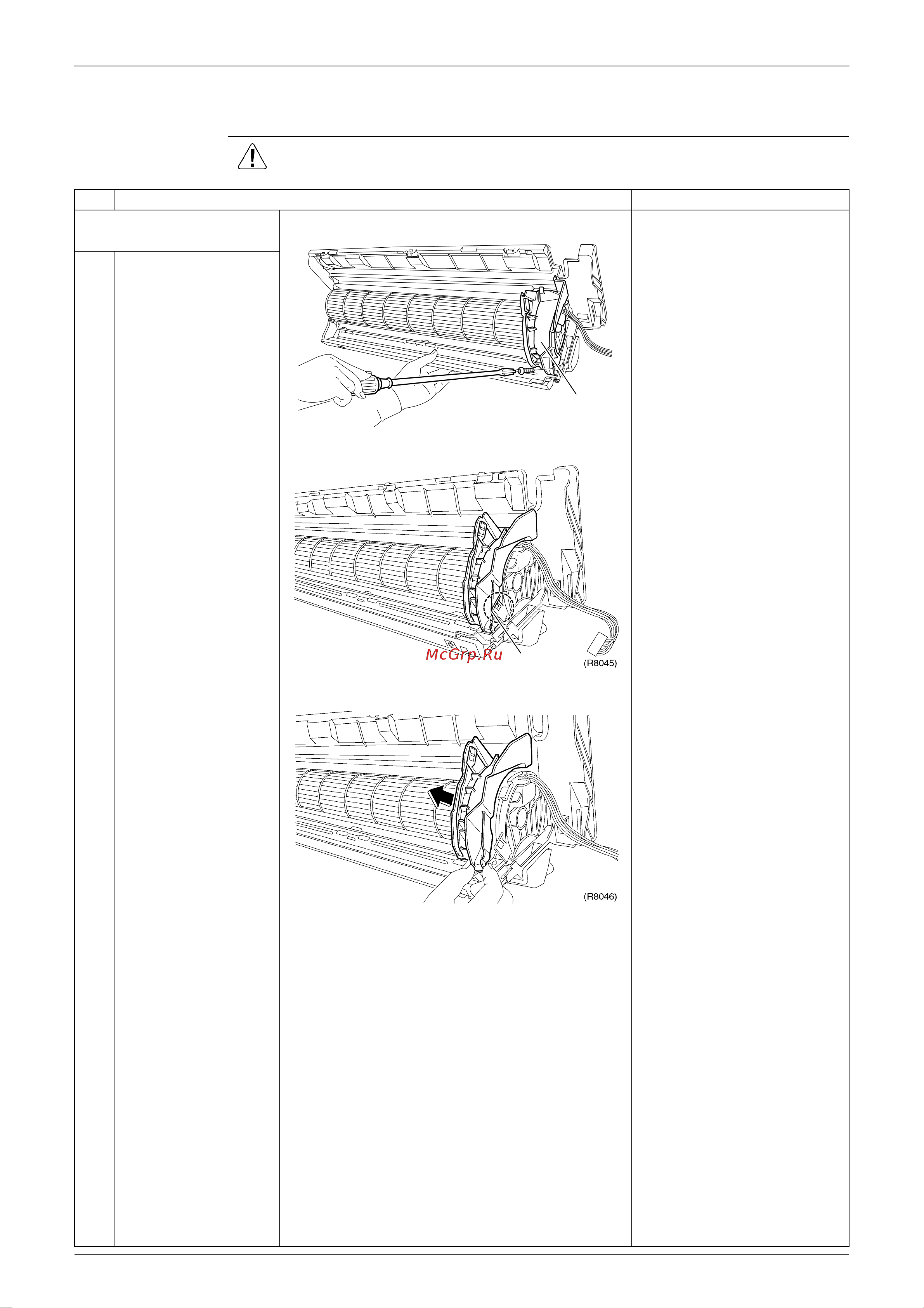

1.8 Removal of Fan Rotor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the right side
panel.
Preparation
Remove the indoor heat
exchanger according to the
“Removal of Indoor Heat
Exchanger”.
1
Remove the screw of
the right side panel.
2
Unfasten the hook of
the right side panel.
3
Remove the right side
panel.
Right side panel
(R8044)
Hook
