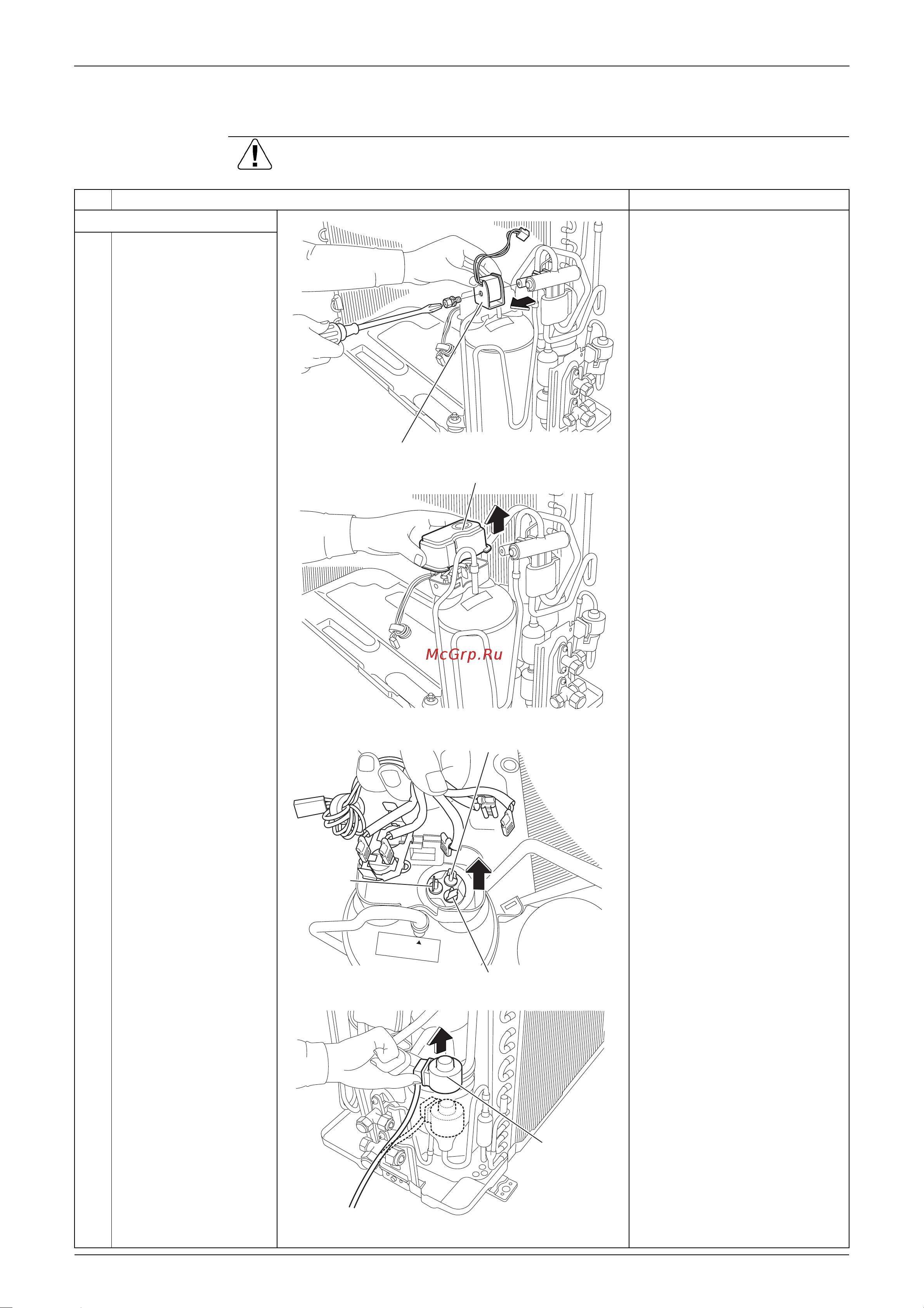

Outdoor Unit SiBE041010
134 Removal Procedure
2.5 Removal of Four Way Valve
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the peripheries.
Remove the four
way valve coil and
the putty so as not
to burn them.
1
Remove the screw and
remove the four way
valve coil.
2
Remove the terminal
cover.
3
Disconnect the
terminals.
4
Remove the electronic
expansion valve coil.
Four way valve coil
(R7412)
Terminal cover
(R7413)
U
V
W
(R7414)
U(red)
V(yellow)
W(blue)
(R7415)
Electronic
expansion
valve coil
