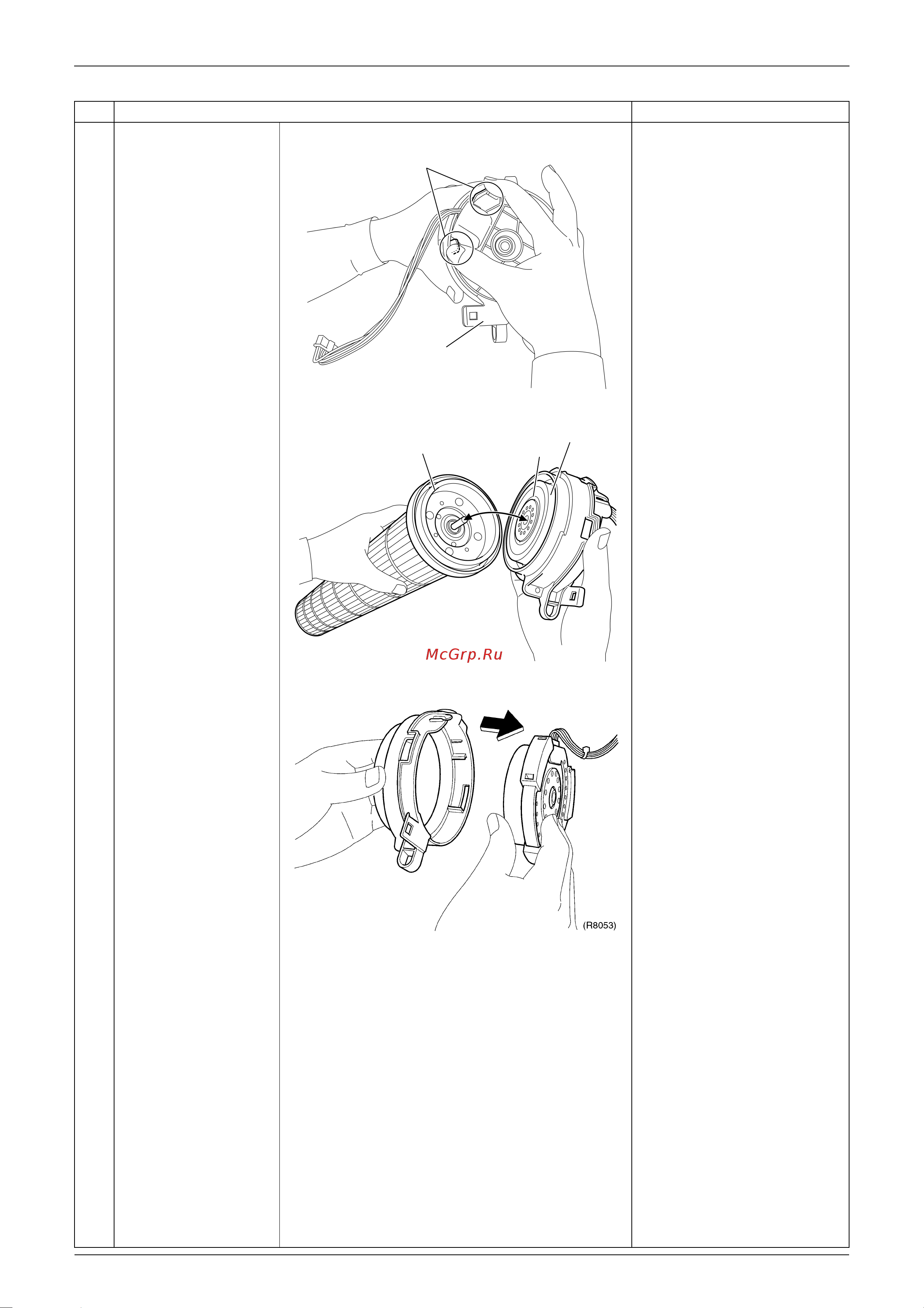

Indoor Unit SiBE041010
120 Removal Procedure
5
Unfasten the 2 hooks of
the motor cover.
6
Pull out the fan motor
from the fan rotor to
remove.
The magnet of the fan motor
is united with the fan rotor.
Be careful not to attract
metal waste to the magnet.
Keep away from the
materials that can be
affected by magnetic force
also.
Step Procedure Points
(R8051)
Hooks
Motor cover
Magnet
Coil
Fan motor
(R8052)
