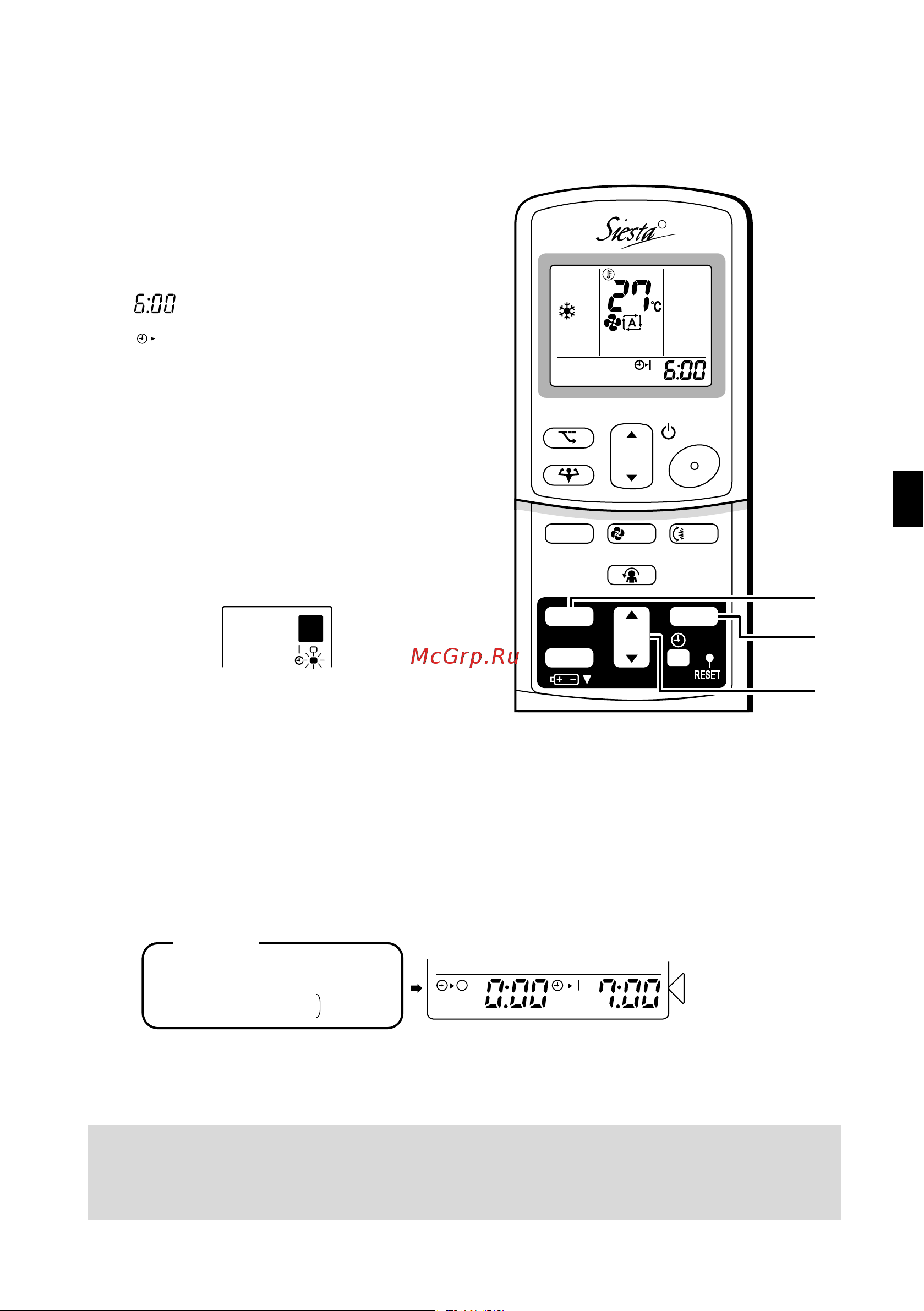

■ To use ON TIMER operation
• Check that the clock is correct. If not, set the
clock to the present time
(page 9.).
1. Press “ON TIMER button”.
is displayed.
blinks.
2. Press “TIMER Setting button”
until the time setting reaches the
point you like.
• Every pressing of either button increases or
decreases the time setting by 10 minutes.
Holding down either button changes the
setting rapidly.
3. Press “ON TIMER button” again.
•
The TIMER lamp lights up.
■ To cancel ON TIMER
operation
4. Press “CANCEL button”.
•
The TIMER lamp goes off.
■ To combine ON TIMER and OFF TIMER
• A sample setting for combining the two timers is shown below.
ATTENTION
■
In the following cases, set the timer again.
•
After a breaker has turned OFF.
•
After a power failure.
•
After replacing batteries in the remote controller.
TEMP
ON/OFF
POWERFUL
MODE
FAN
SWING
ECONO
COMFORT
TIMER
ON
CANCEL
OFF
2
1, 3
4
R
Display
(Example)
Present time: 11:00 p.m.
(The unit operating)
OFF TIMER at 0:00 a.m.
ON TIMER at 7:00 a.m.
Combined
01_EN_3P208145-2F.fm Page 17 Thursday, August 20, 2009 5:19 PM
