Daikin ATX35JV1B [6/26] Outdoor unit
![Daikin ATX20GV1B [6/26] Outdoor unit](/views2/1775183/page6/bg6.png)
5
■ Outdoor Unit
■
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter:
•
These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
•
It senses the air temperature around the unit.
7. Display
8. Air outlet
9. Horizontal blades (Flaps):
(page 12.)
10. Vertical blades (Louvers):
• The louvers are inside of the air outlet.
(page 12.)
11. Indoor Unit ON/OFF switch:
(page 10.)
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refers to the following
table.
•
This switch is useful when the remote controller
is missing.
12. Operation lamp (green)
13. TIMER lamp (yellow):
(page 16.)
14. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep
■

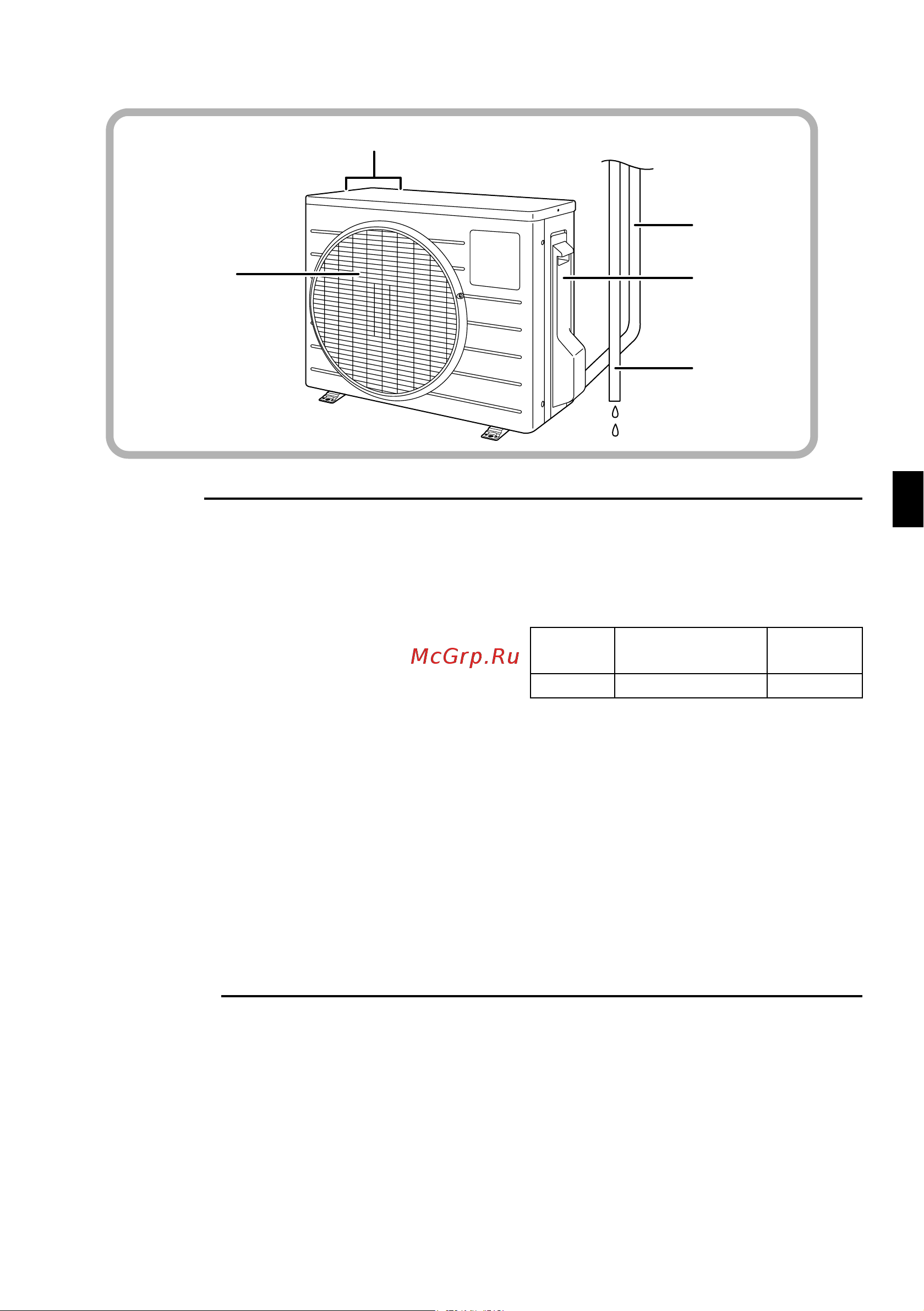

Outdoor Unit
15. Air inlet:
(Back and side)
16. Air outlet
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
• It is inside of this cover.
Appearance of the outdoor unit may differ from some models.
15
16
17
19
18
Mode
Temperature
setting
Airflow
rate
AUTO
25°C
AUTO
01_EN_3P208145-2F.fm Page 5 Thursday, August 20, 2009 5:19 PM
