Daikin ATX35JV1B [20/26] Filters
![Daikin ATX35JV1B [20/26] Filters](/views2/1775183/page20/bg14.png)
19

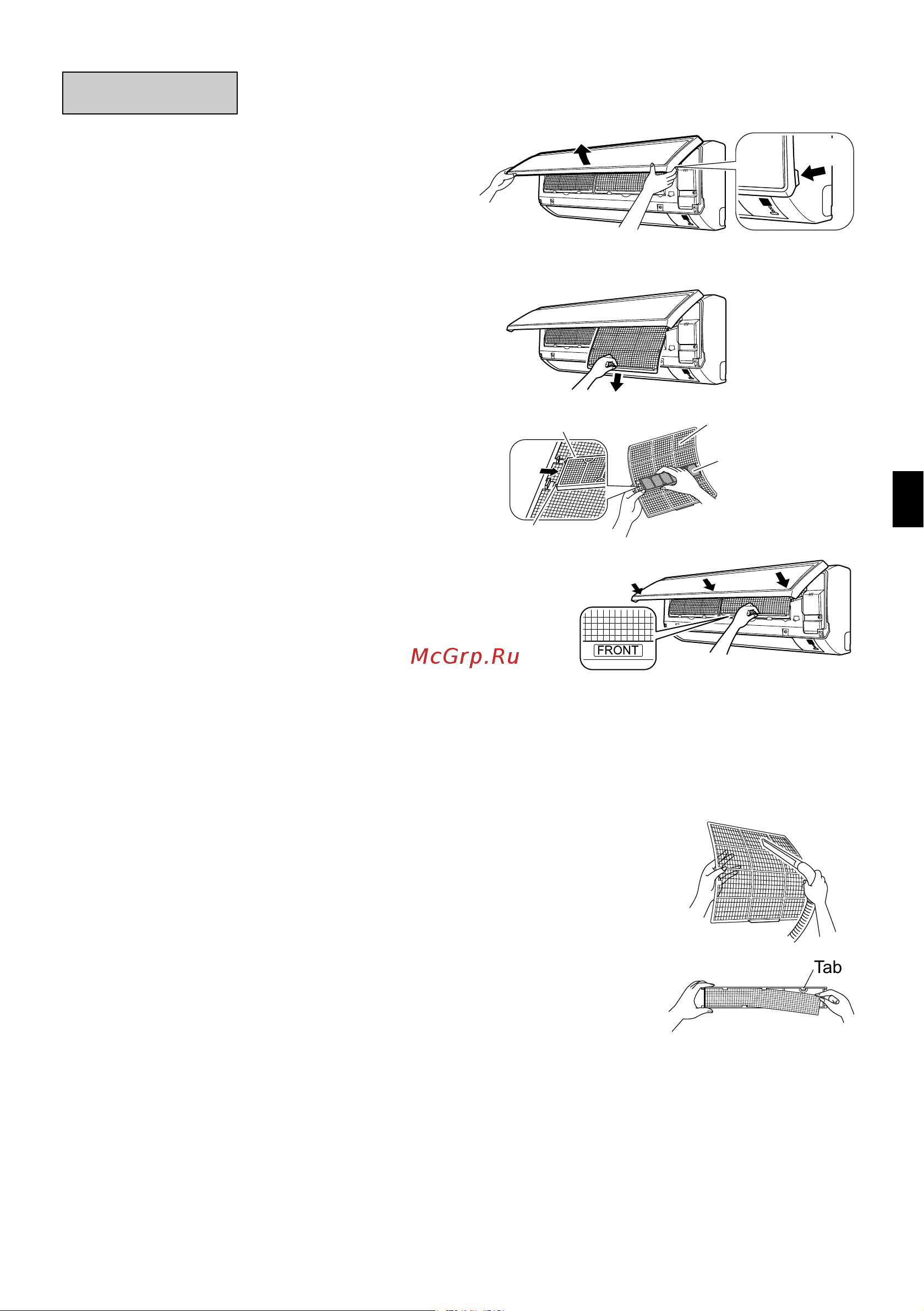

1. Open the front panel. (page 18.)
• Hold the panel at the recesses on the
main unit (2 recesses on right and left
sides) and lift it until it stops.
2. Pull out the air filters.
• Push a little upwards the tab at the center of each air filter, then pull it down.
3. Take off the Titanium Apatite
Photocatalytic Air-Purifying Filter.
• Hold the recessed parts of the frame and
unhook the four claws.
4. Clean or replace each filter.
See figure.
• When shaking off remaining water, do not
wring the filter.
5. Set the air filter and Titanium
Apatite Photocatalytic Air-Purifying Filter
as they were and close the front panel.
• Insert claws of the filters into slots of the front panel.
Close the front panel slowly and push the panel at
the 3 points. (1 on each side and 1 in the middle.)
•
The air filter and the Titanium Apatite Photocatalytic
Air-Purifying Filter have a symmetrical form in the hor-
izontal direction.
■ Air Filter
1. Wash the air filters with water or clean them with
vacuum cleaner.
• If the dust does not come off easily, wash them with neutral
detergent thinned with lukewarm water, then dry them up in the
shade.
• It is recommended to clean the air filters every two weeks.
■
Titanium Apatite Photocatalytic
Air-Purifying Filter
.
The Titanium Apatite Photocatalytic Air-Purifying Filter can be renewed by washing it with water
once every 6 months. We recommend replacing it once every 3 years.
Filters
Recess on
main unit
Air filter
Titanium Apatite
Photocatalytic
Air-Purifying Filte
r
Filter frame
Tab
FRONT
Tab
01_EN_3P208145-2F.fm Page 19 Thursday, August 20, 2009 5:19 PM
