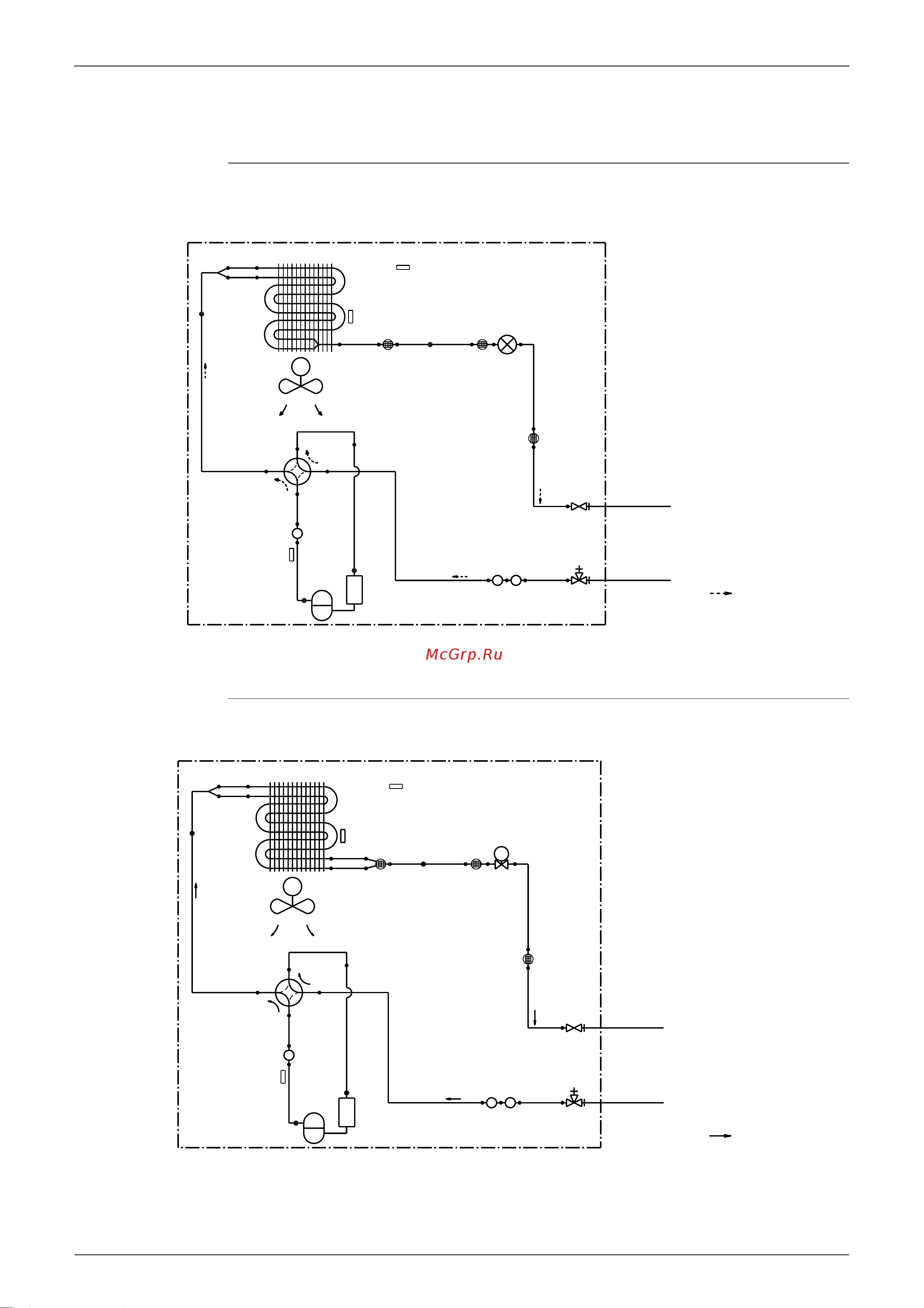

Piping Diagrams SiBE04-808_C
158 Appendix
1.2 Outdoor Unit
1.2.1 Cooling Only
RKS20G2V1B, RKS20G2V1B9
RKS25/35G2V1B, RKS25/35G2V1B9
6.4CuT
OUTDOOR UNIT
M
MUFFLER
7.0CuT
MUFFLER
6.4CuT
9.5CuT
ACCUMULATOR
7.9CuT
9.5CuT
7.0CuT
9.5CuT
REFRIGERANT FLOW
9.5CuT
7.0CuT
9.5CuT
MUFFLER
COMPRESSOR
6.4CuT
COOLING
7.9CuT
HEAT EXCHANGER
PROPELLER FAN
9.5CuT
φ.4.0×ID. 2.0CuT
HEAT EXCHANGER
THERMISTOR
OUTDOOR TEMPERATURE
THERMISTOR
MOTOR OPERATED
VALVE
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
DISCHARGE PIPE
THERMISTOR
GAS STOP
VALVE
LIQUID STOP
VALVE
FIELD PIPING
(6.4CuT)
FIELD PIPING
(9.5CuT)
FOUR WAY
VALVE
NORMALLY: OFF
3D059588B
OUTDOOR UNIT
HEAT EXCHANGER
7.0CuT
7.0CuT
9.5CuT
4.8CuT
6.4CuT 6.4CuT
4.8CuT
M
PROPELLER FAN
φ
.4.0 × ID.2.0CuT
9.5CuT
9.5CuT
6.4CuT
7.9CuT
9.5CuT
MUFFLER
9.5CuT9.5CuT
COMPRESSOR
MUFFLER MUFFLER
7.9CuT
ACCUMULATOR
REFRIGERANT FLOW
COOLING
OUTDOOR TEMPERATURE
THERMISTOR
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
LIQUID
STOP
VALVE
HEAT EXCHANGER
THERMISTOR
FOUR WAY
VALVE
NORMALLY:
OFF
DISCHARGE PIPE
THERMISTOR
GAS STOP
VALVE
FIELD PIPING
(9.5CuT)
FIELD PIPING
(6.4CuT)
EV
ELECTRONIC
EXPANSION
VALVE
3D059589G
