SiBE04-609 Instruction
System Configuration 95
2.3.5 POWERFUL Operation
14

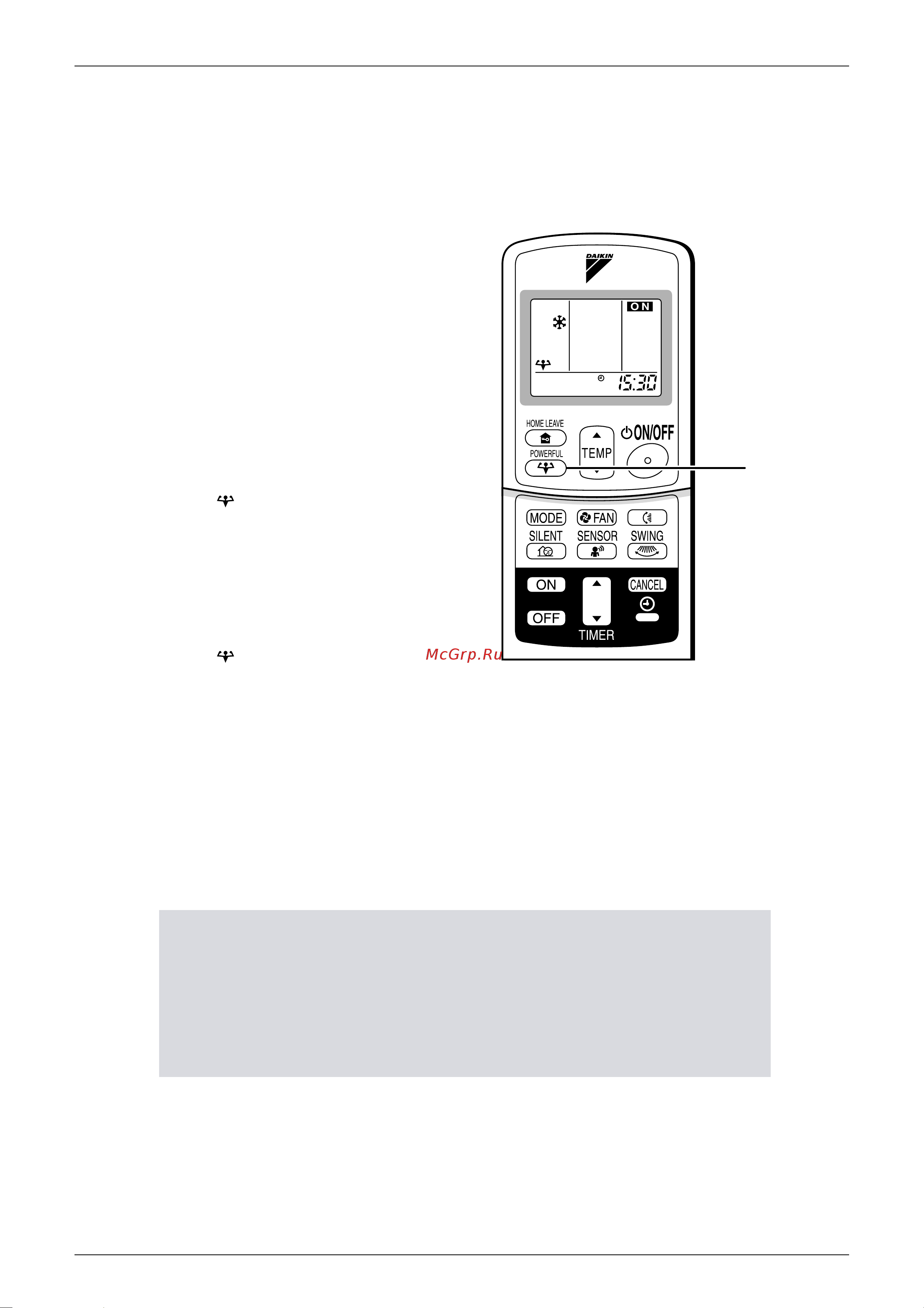

POWERFUL Operation
POWERFUL operation quickly maximizes the cooling
(heating) effect in any operation mode. You can get the
maximum capacity.
To start POWERFUL
operation
1. Press “POWERFUL button”.
• POWERFUL operation ends in 20 minutes.
Then the system automatically operates
again with the settings which were used
before POWERFUL operation.
• When using Powerful operation, there are
some functions which are not available.
• “ ” is displayed on the LCD.
To cancel POWERFUL
operation
2. Press “POWERFUL button”
again.
• “ ” disappears from the LCD.
NOTE
Notes on POWERFUL operation
•
In COOL and HEAT mode
To maximize the cooling (heating) effect, the capacity of outdoor unit must be increased
and the air flow rate be fixed to the maximum setting.
The temperature and air flow settings are not variable.
•
In DRY mode
The temperature setting is lowered by 2.5°C and the air flow rate is slightly increased.
•
In FAN mode
The air flow rate is fixed to the maximum setting.
1, 2
