SiBE04-609 Indoor Unit
Removal Procedure 157
3. Removing the titanium
apatite photocatalytic air-
purifying filter
1
The titanium apatite
photocatalytic air-
purifying filter is
attached to the back of
the air filter.
The titanium apatite
photocatalytic air-purifying
filter is not marked for
difference between the right
and left sides.
2
3

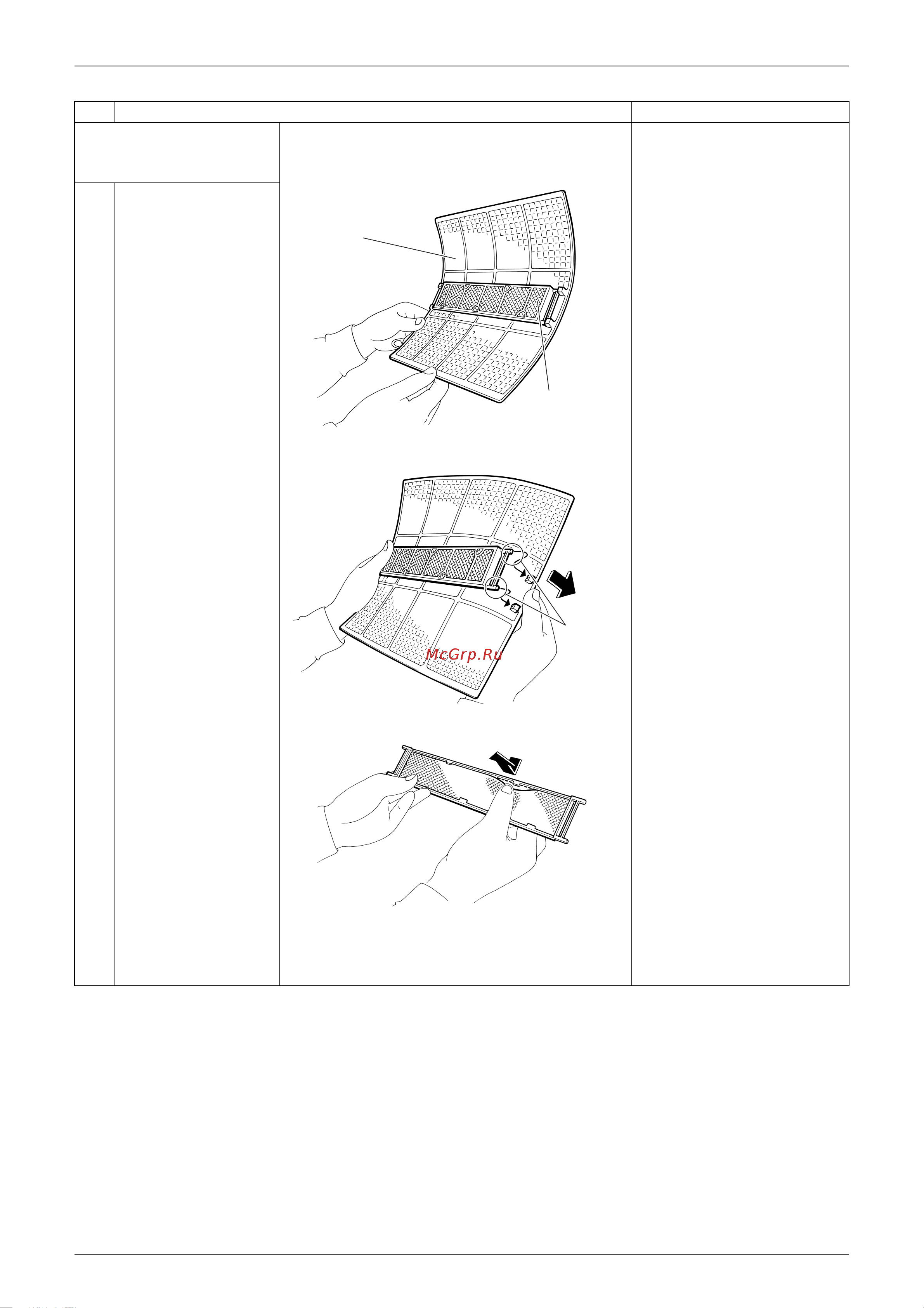

Remove the titanium
apatite photocatalytic
air-purifying filter frame
by bending the air filter
and unfastening the
projections from the air
filter frame.
Remove the titanium
apatite photocatalytic
air-purifying filter from
its frame (at 5 positions)
by bending it.
Step Procedure Points
Projections
(R4310)
Air filter
Titanium apatite
photocatalytic
air-purifying filter
(R4309)
(R4311)
