SiBE04-609 Indoor Unit
Removal Procedure 161
Step Procedure Points
2
3
4
5

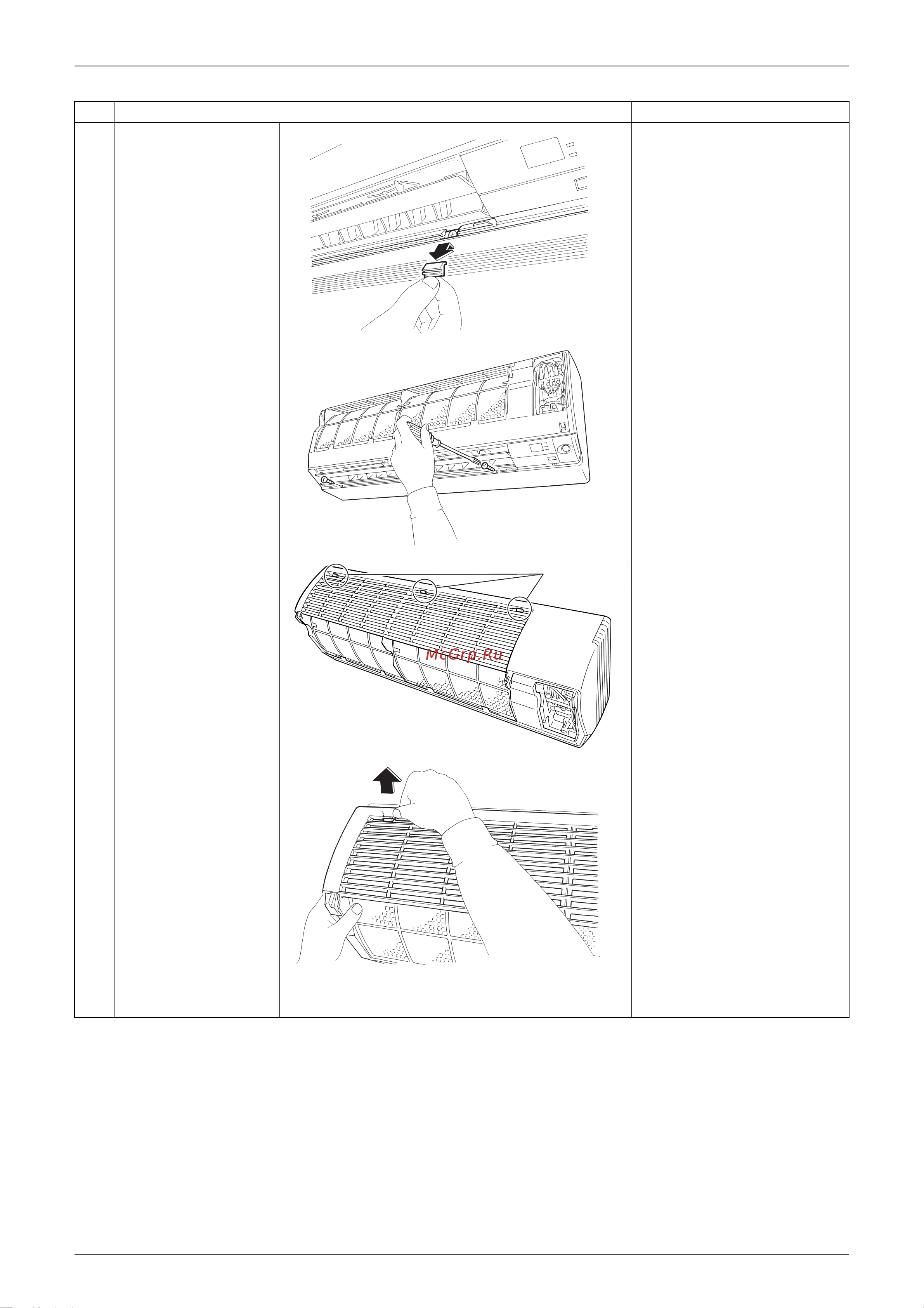

Remove the screw
covers (one each at the
right and left).
Remove the screws
(one each at the right
and left).
Release the 3 hooks at
the top.
Put your fingers into the
front grille to the depth
and lift the grille up to
unhook.
When installing the indoor
unit, drive the screws with
the horizontal blades open
or removed.
H
ooks
(R4321)
(R4322)
(R4323)
(R4324)
