SiBE04-609 Indoor Unit
Removal Procedure 193

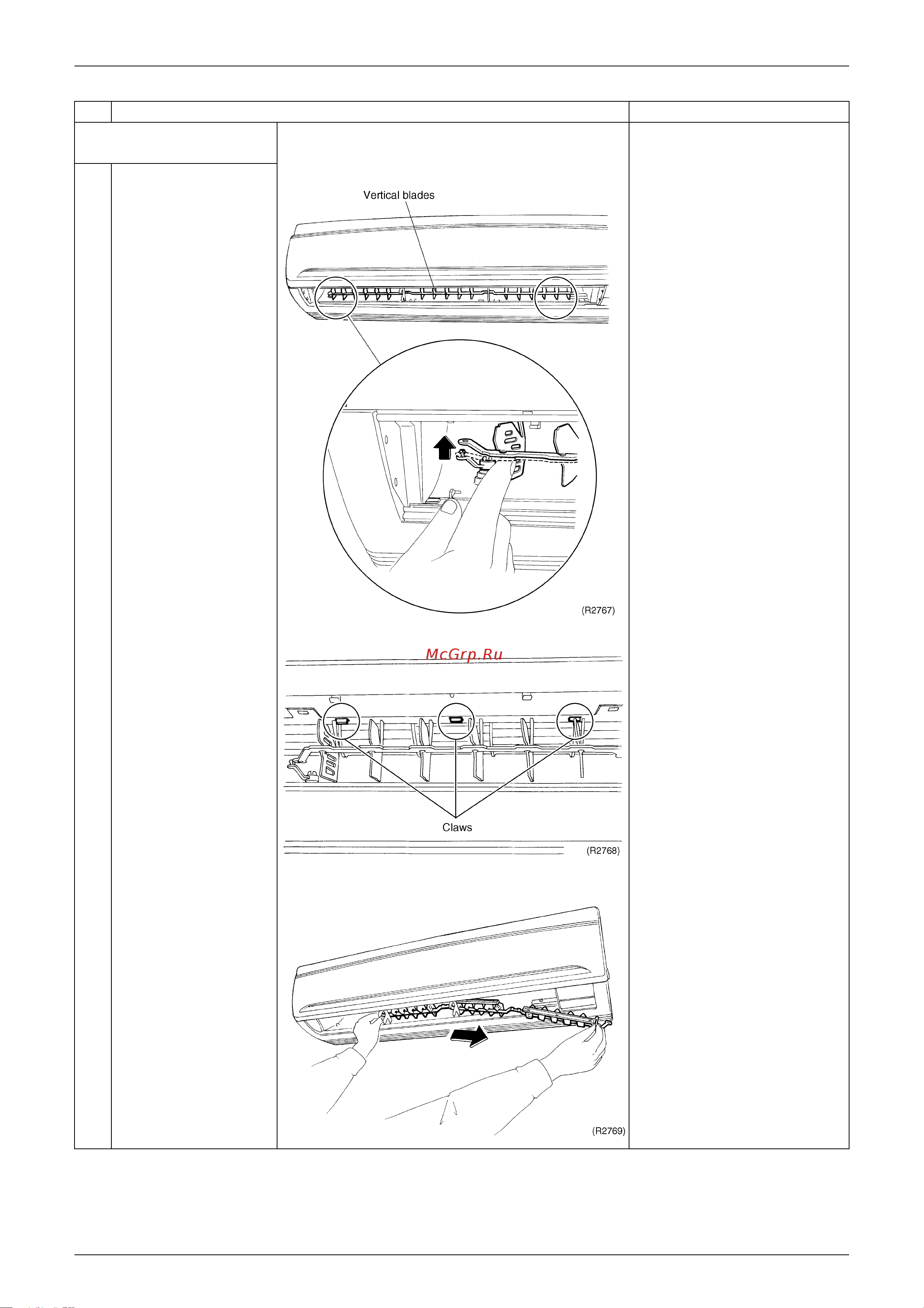

2. Remove the vertical
blades.
1
Undo the right and left
pivots.
2
Undo the 3 claws.
3
Pull the vertical blades
rightwards and remove
it.
Step
Procedure Points
