Outdoor Unit SiBE04-609

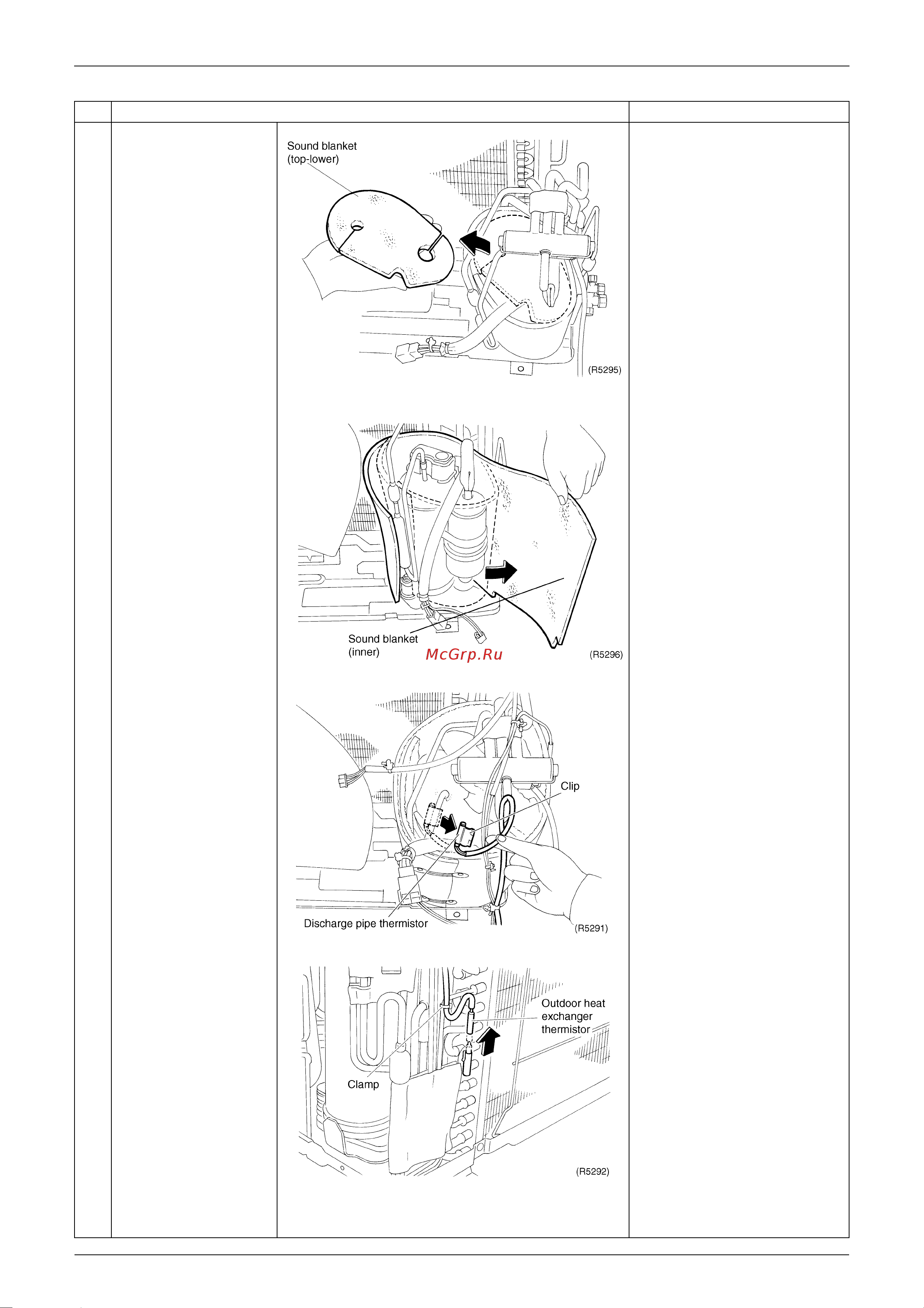

222 Removal Procedure
4
Remove the sound
blanket (top-lower).
5
Remove the sound
blanket (inner).
Since the piping ports on the
sound blanket (inner) are
torn easily, remove the
blanket carefully.
6
Release the discharge
pipe thermistor.
Pay attention to the direction
of the clip so as not to touch
the lead wire of the
thermistor when
reassembling.
7
Cut the clamp by
nippers.
Disconnect the outdoor
heat exchanger
thermistor.
Clamps should be always
available.
Fix it as it was before.
Step
Procedure Points
