Si04-703A Indoor Unit
Removal Procedure 151

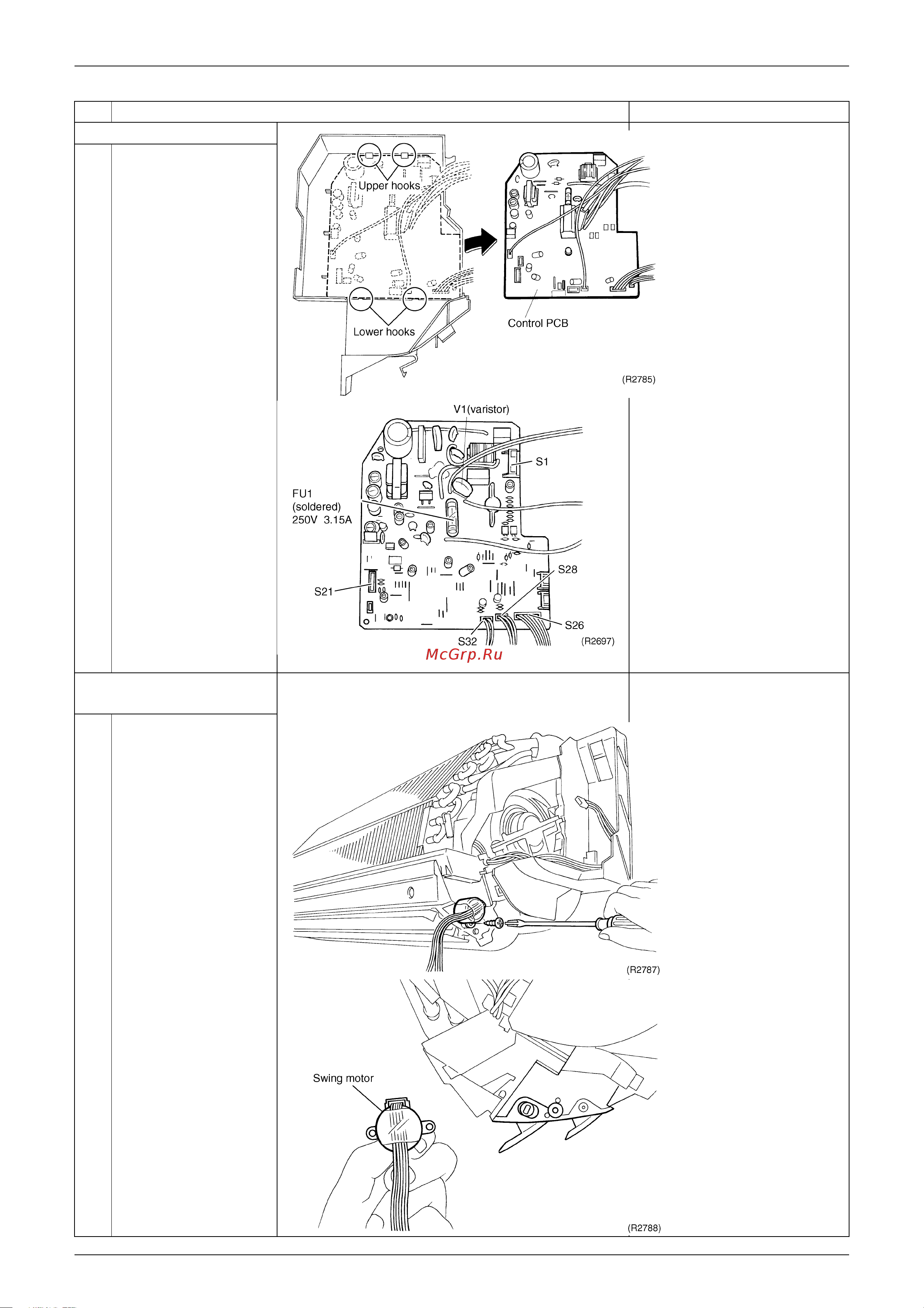

5. Remove the control PCB.
1
Undo the 2 hooks on
the lower side, and then
the 2 hooks on the
upper side.
Remove the control
PCB.
2
Control PCB (indoor
unit)
S1: connector for the
fan motor
S21: HA
S26: connector for
buzzer PCB
thermistor
S28: connector for
signal receiver
PCB
S32: connector for the
heat exchanger
thermistor
6. Remove the swing motor
for horizontal blades.
1
Remove the screw of
the swing motor.
Step
Procedure Points
