Daikin FDKS25CVMB [202/230] Removal of the sound blanket
![Daikin FDKS25CVMB [202/230] Removal of the sound blanket](/views2/1771965/page202/bgca.png)
SiBE12-519 Outdoor Unit
Removal Procedure 193
1.4 Removal of the Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

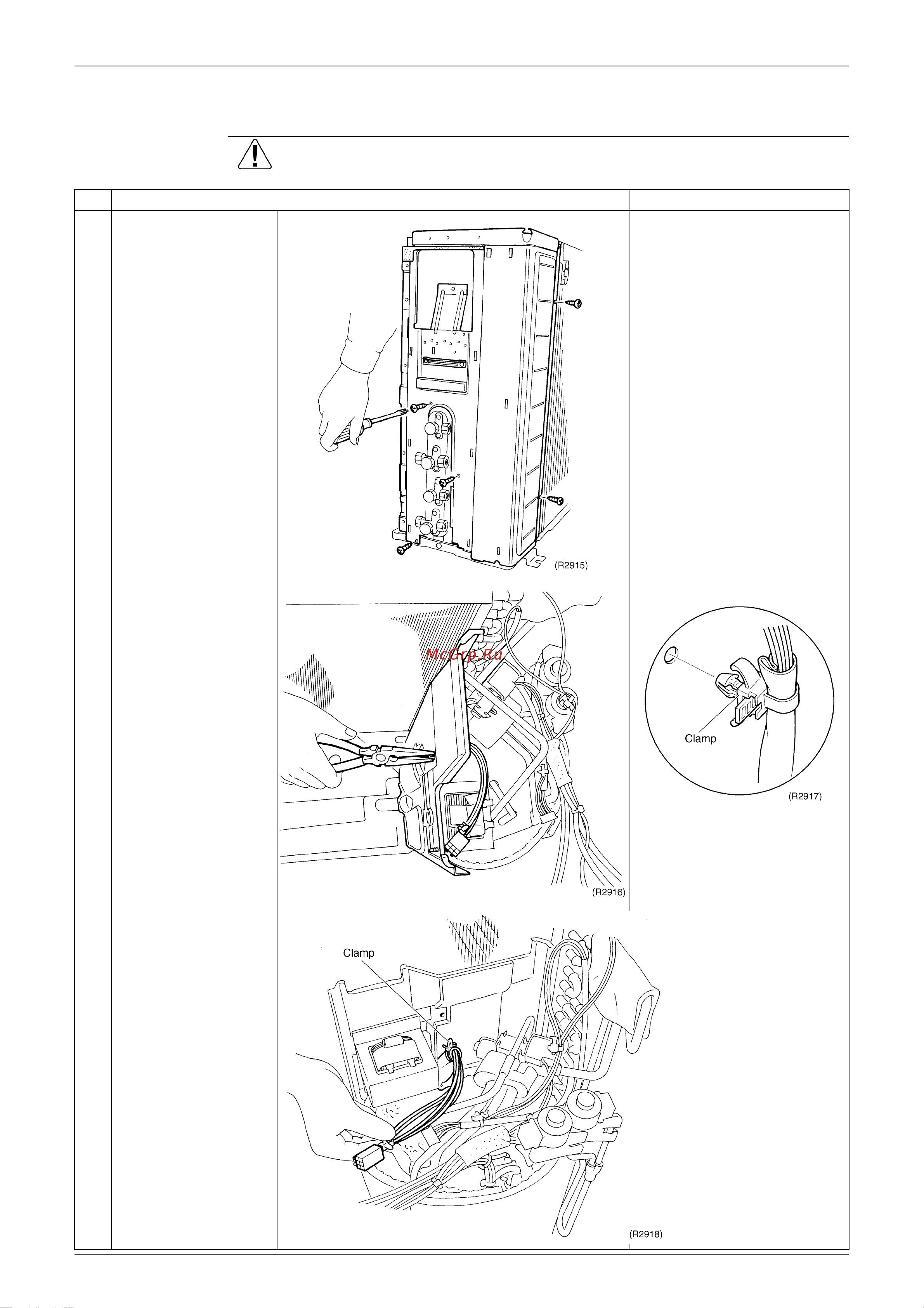

1
Loosen the five screws
of the right side panel.
2
Release the clamp of
the compressor lead
wire from the partition
plate.
