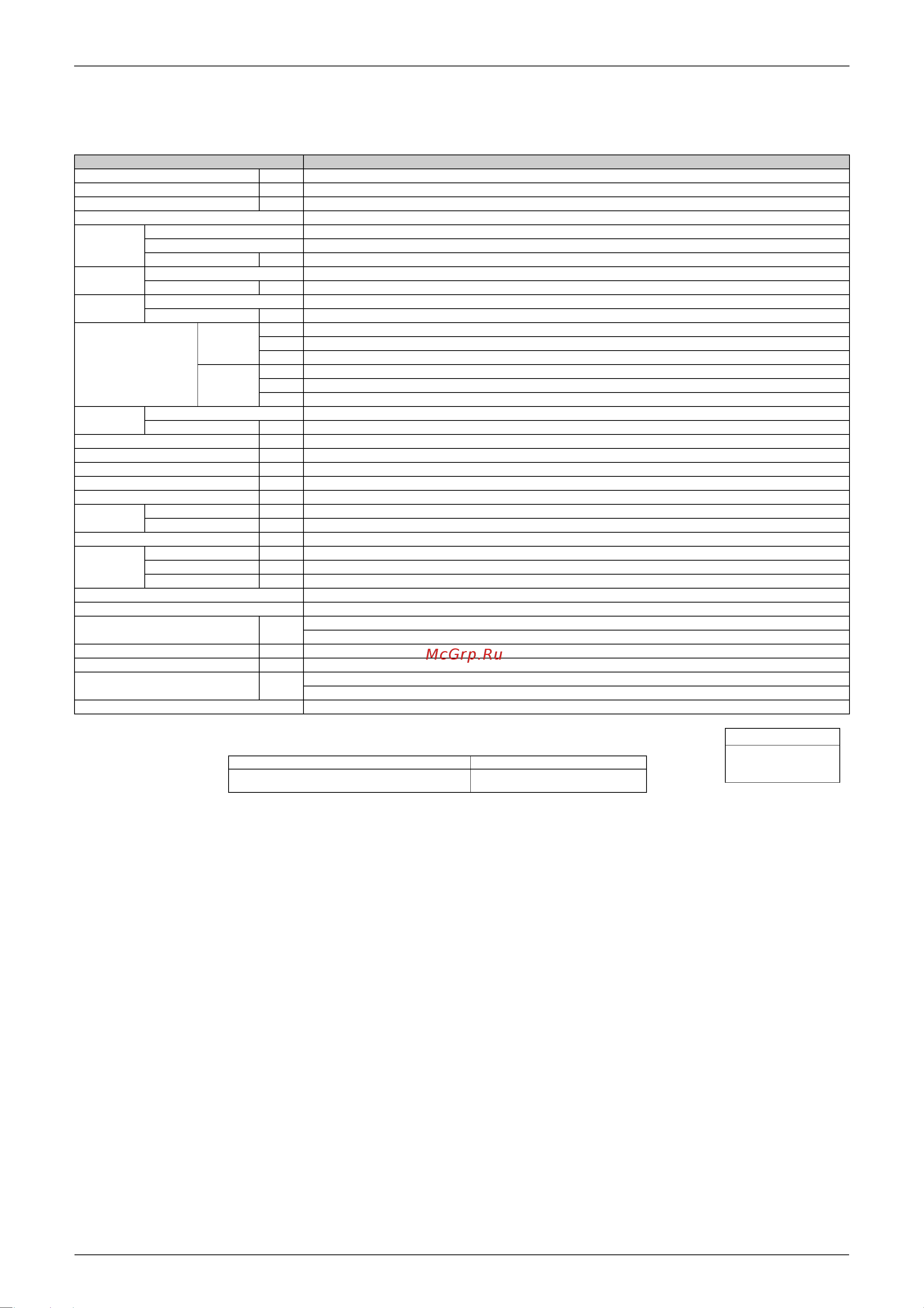

Cooling Only SiBE12-519
12 Specifications
1.2 Outdoor Units
50Hz 230V
Note:
1.
See “Combination Capacity”.
2. The data are based on the conditions shows in the table below.
Model
2MKS40DVMB
Cooling Capacity
kW —
Power Consumption
W—
Running Current
A—
Casing Color Ivory White
Compressor
Type Hermetically Sealed Swing Type
Model 1YC23GXD
Motor Output W 600
Refrigerant
Oil
Model FVC50K
Charge L 0.40
Refrigerant
Type R410A
Charge kg 0.98
Air Flow Rate
m³/min
HH 39
H35
L30
cfm
HH 1377
H 1236
L 1059
Fan
Type Propeller
Motor Output W 50
Starting Current A 5.6
Dimension (H
×
W
×
D) mm 640
×
685
×
285
Packaged Dimension (H
×
W
×
D) mm 676
×
800
×
366
Weight kg 39
Gross Weight kg 42
Operation
Sound
Sound pressure dBA 47
Silent Mode dBA 43
Sound Power dBA 62
Piping
Connection
Liquid mm
φ
6.4
×
2
Gas mm
φ
9.5
×
2
Drain mm
φ
18
Heat Insulation Both Liquid & Gas Pipes
No. of Wiring Connection 3 for Power Supply, 4 for Interunit Wiring
Max. Piping Length m
30 (for Total of Each Room)
20 (for One Room)
Min. Piping Length m 1.5 (for One Room)
Amount of Additional Charge g/m 20 (20m or more)
Max. Installation Height Difference m
15 (between Indoor Unit and Outdoor Unit)
7.5 (between Indoor Units)
Drawing No. 3D049739#1
Conversion Formulae
kcal/h=kW×860
Btu/h=kW×3414
cfm=m³/min×35.3
Cooling Piping Length
Indoor ; 27°CDB/19°CWB
Outdoor ; 35°CDB
7.5m
