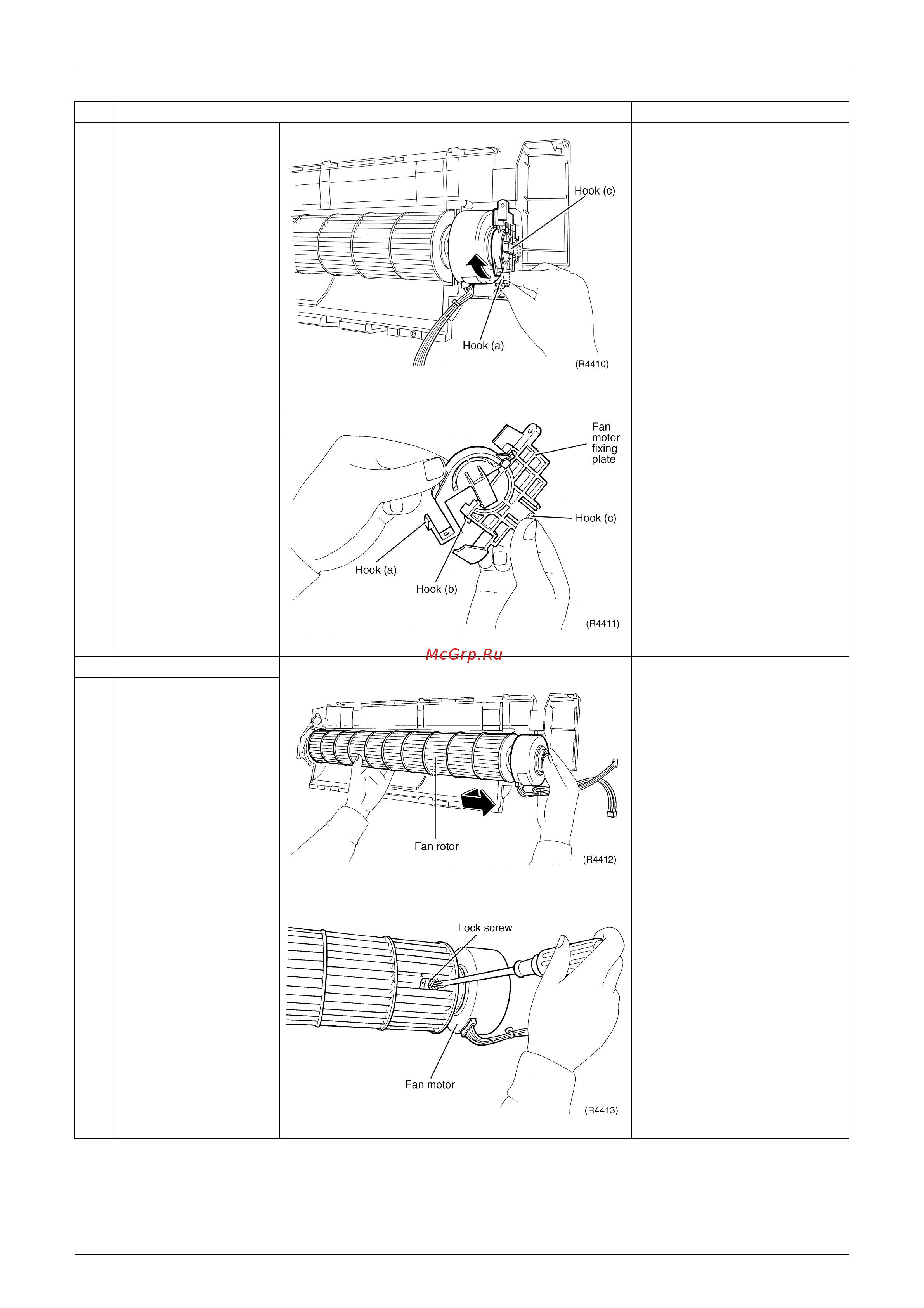

Indoor Unit Si04-803
168 Removal Procedure
4
Unfasten the hook (a)
of the fan motor fixing
plate with your thumb
and unfasten the hook
(b).
5
The fan motor fixing
plate can be removed
from the unit when the
hook (c) is unfastened.
2. Removing the fan rotor
1
Dislocate the fan rotor
by sliding it to the right.
2
Remove the fan rotor
by loosening the lock
screw.
Step Procedure Points
