Si04-803 Outdoor Unit
Removal Procedure 187

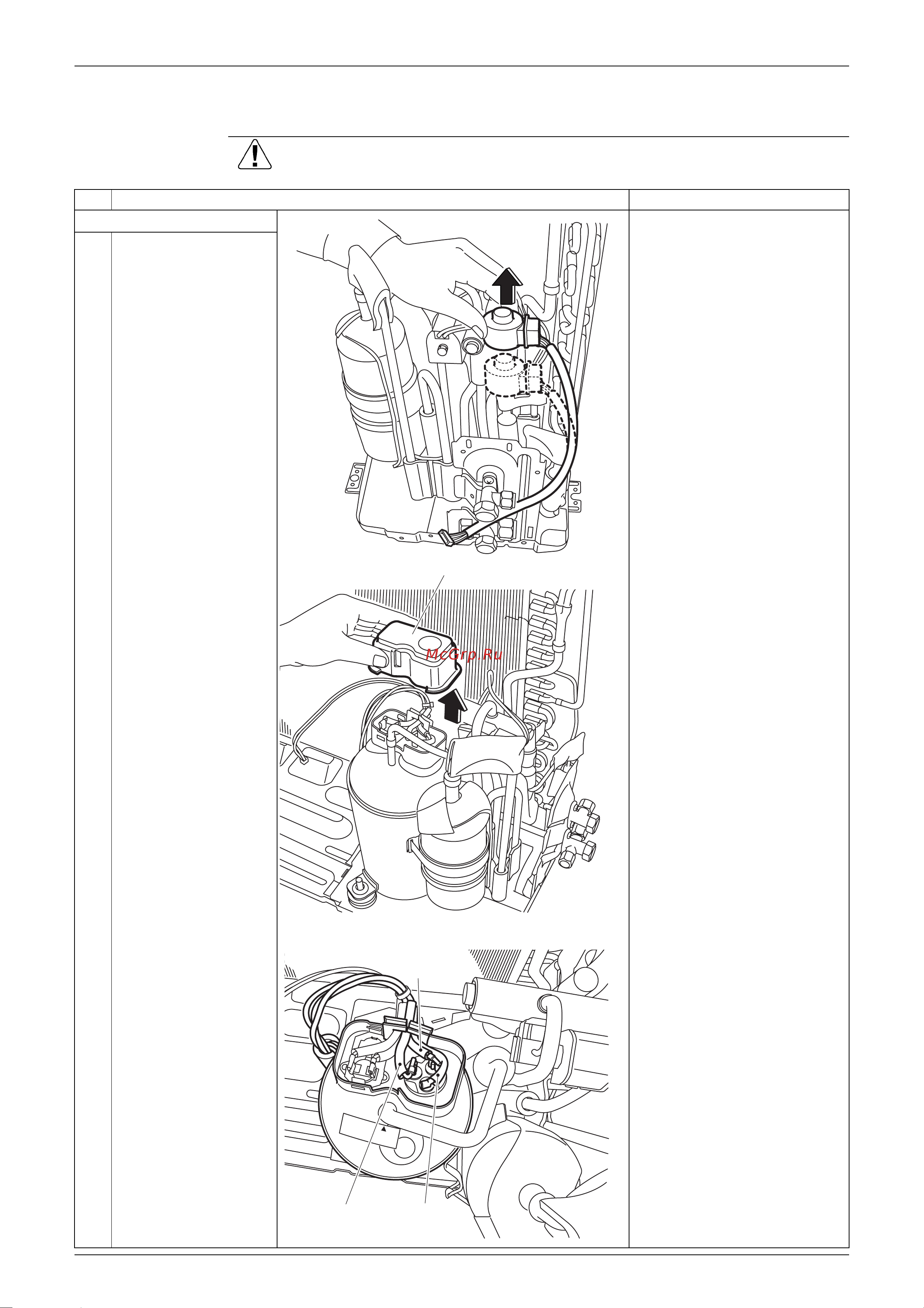

2.5 Removal of Four Way Valve
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the peripheries.
1
Remove the electronic
expansion valve coil.
2
Remove the terminal
cover.
Remove the four way valve
and the sheets of putty so as
not to burn them.
Be careful so as not to burn
the compressor terminals or
the name plate.
Make a note.
(R7233)
(R7234)
Terminal cover
V
W
U
(R7235)
Red (U)
Yellow (V) Blue (W)
