Radio Controls
Record your radio’s programmable button
functions in the blanks provided.
SP represents Short Press.
LP represents Long Press.
LED Indicator
Blinking red – Radio is transmitting at low
battery condition, receiving an emergency
transmission, has failed the self-test upon
powering up, or has moved out of range if
radio is configured with Auto-Range
Transponder System.
Solid yellow – Radio is monitoring a digital
conventional channel or in Bluetooth
Discoverable Mode. Also indicates fair
battery charge when programmable button
is pressed.
Blinking yellow – Radio is scanning for
activity or receiving a Call Alert, or all local
Linked Capacity Plus channels are busy.
Double blinking yellow – Radio is no
longer connected to the repeater while in
Capacity Plus or Linked Capacity Plus, all
Capacity Plus channels or Linked Capacity
Plus channels are currently busy, Auto
Roaming is enabled, radio is actively
searching for a new site. Also indicates
radio has yet to respond to a group call alert,
or radio is locked.
Solid green – Radio is powering up, or
transmitting. Also indicates full charge of the
battery when programmable button is
pressed.
Blinking green – Radio is receiving a
non-privacy-enabled call or data, or
detecting activity or retrieving Over-the-Air
Programming transmissions over the air.
Double blinking green – Radio is receiving
a privacy-enabled call or data.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

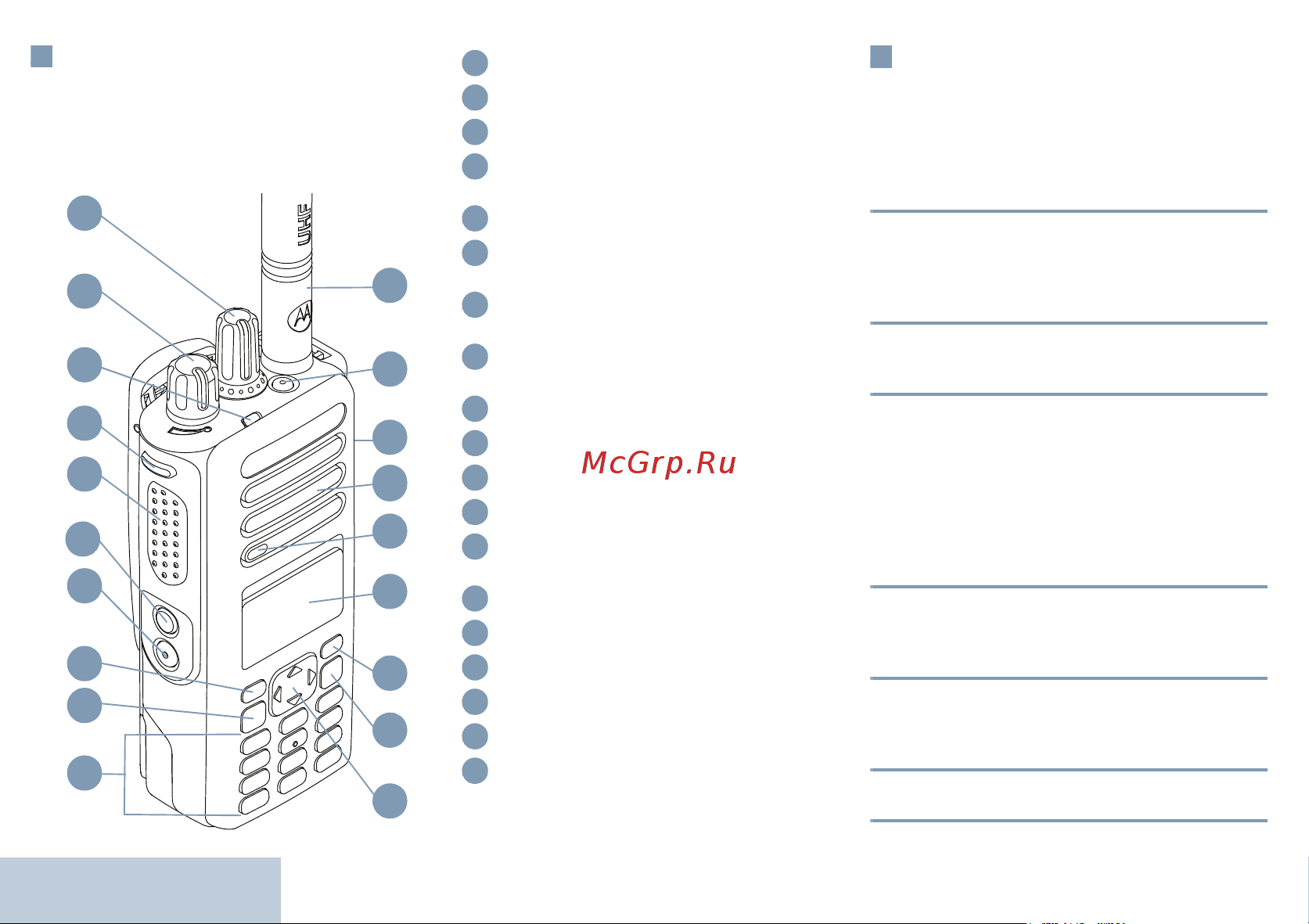

Channel Selector Knob
On/Off/Volume Control Knob
LED Indicator
Side Button 1 (Programmable)
SP: ______ LP: _______
Push-to-Talk (PTT) Button
Side Button 2 (Programmable)
SP: ______ LP: _______
Side Button 3 (Programmable)
SP: ______ LP: _______
Front Button P1 (Programmable)
‡
SP: ______ LP: _______
Menu/OK Button
‡
Keypad
†‡
Keypad 4-Way Navigation Button
‡
Back/Home Button
‡
Front Button P2 (Programmable)
‡
SP: ______ LP: _______
Display
‡
Microphone
Speaker
Universal Connector for Accessories
Emergency Button (Programmable)
Antenna
†
Not for Limited Keypad radio models
‡
Not for Non-Keypad radio models
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
