Daikin FTYS35BVMB [11/23] Piping diagrams
![Daikin FTYS35BVMB [11/23] Piping diagrams](/views2/1780830/page11/bgb.png)
4

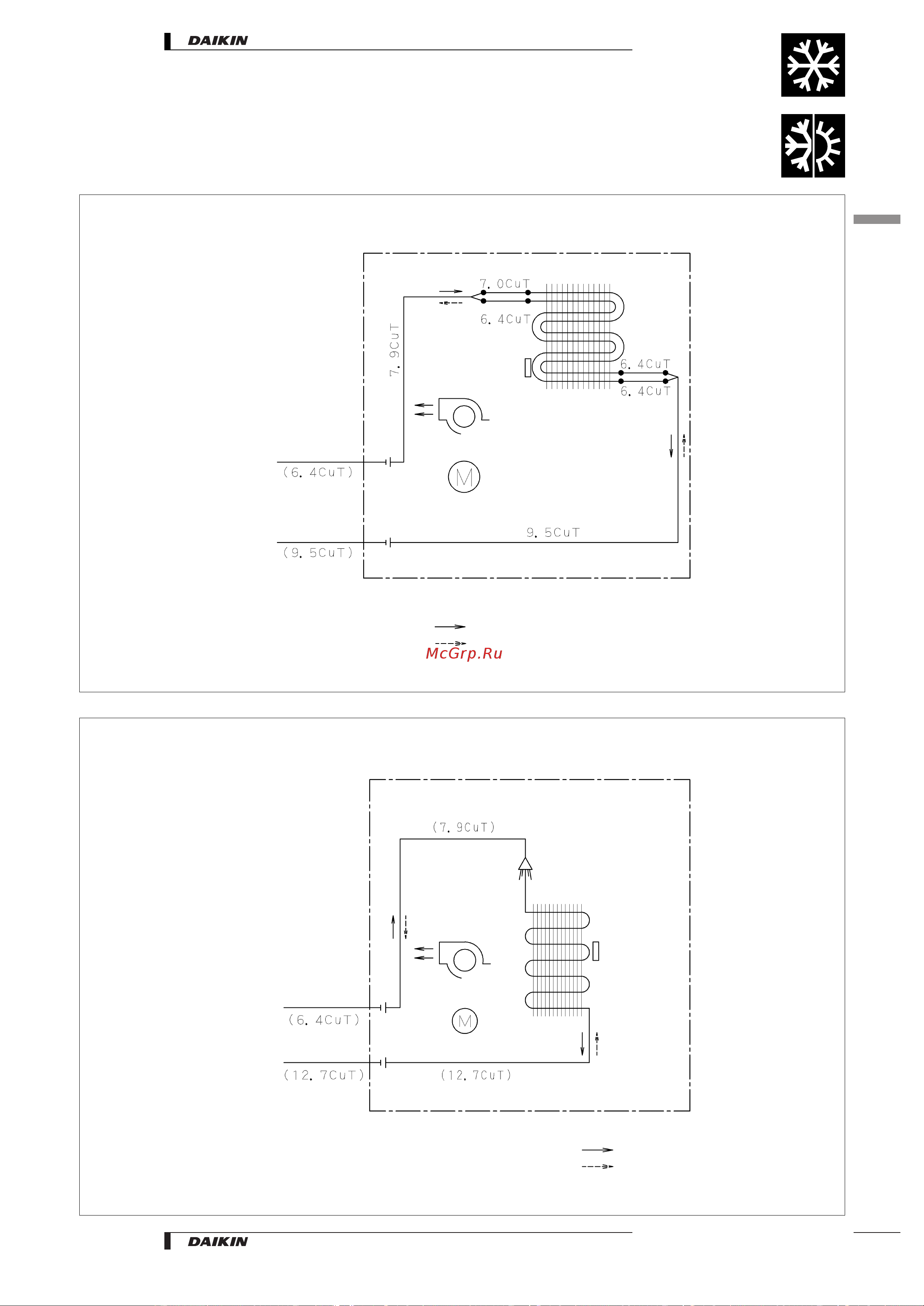

Piping diagrams
FT(Y)S20-25-35B
4D033698A
Indoor unit
Heat exchanger
Cross flow fan
Fan motor
Field piping
Field piping
Refrigerant flow
Thermistor on heat
exchanger
Cooling
Heating
FT(Y)S50-60B
4D040081
Indoor unit
Heat exchanger
Cross flow fan
Fan motor
Field piping
Field piping
Refrigerant flow
Thermistor on heat
exchanger
Cooling
Heating
•
Wall Mounted Unit • R-410A • FT(Y)S20,25,35,50,60BVMB
1
4
9
• Split - Sky Air • Indoor units
