Daikin FTYS35BVMB [12/23] Wiring diagrams
![Daikin FTYS35BVMB [12/23] Wiring diagrams](/views2/1780830/page12/bgc.png)
5

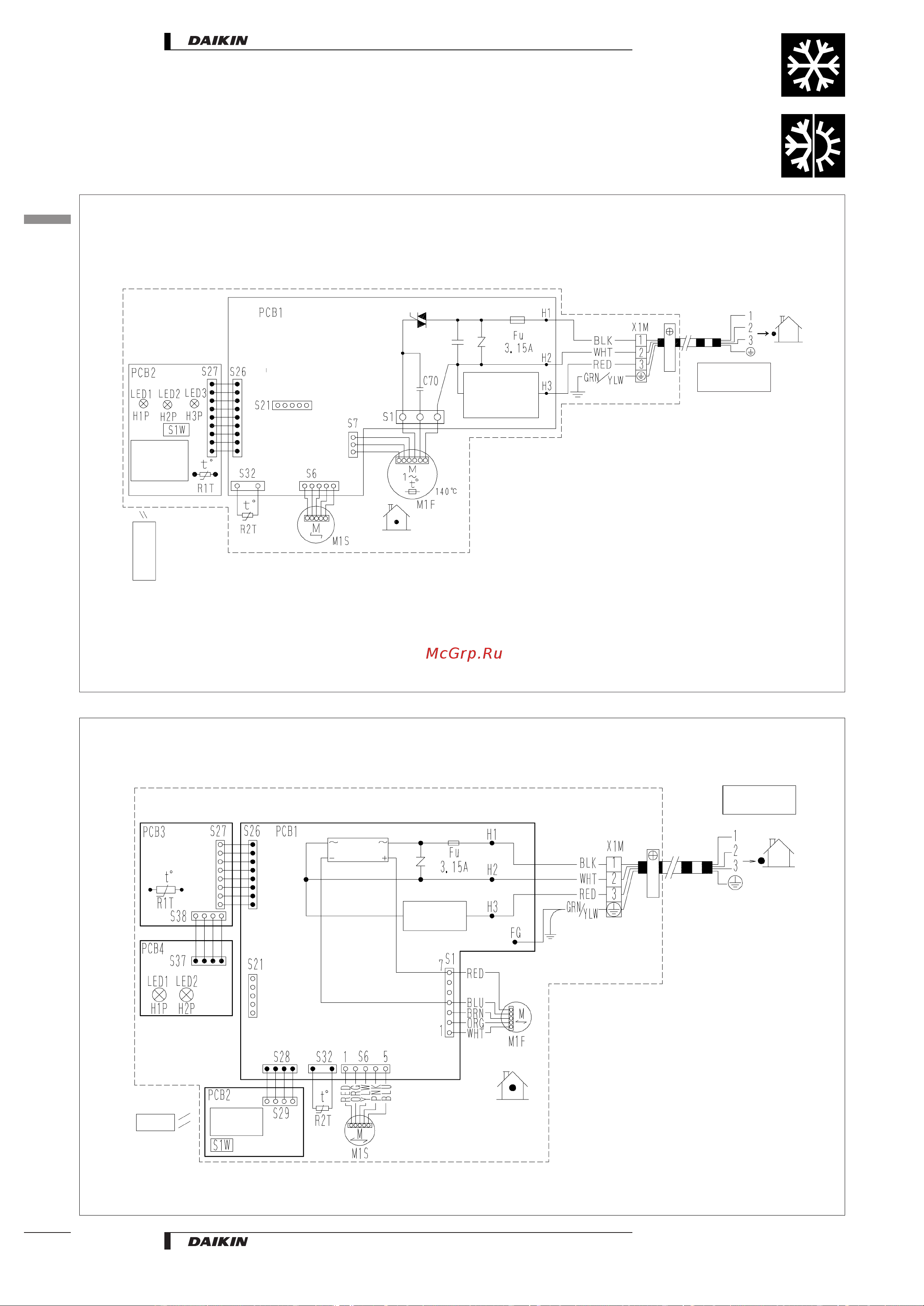

Wiring diagrams
FT(Y)S20-25-35B
3D038629
g
Field wiring
Outdoor
Indoor
Infrared remote
control
R
: Protective earth
C70 : Running capacitor
FU : Fuse
H1P∼H3P : Pilot lamp
M1F : Fan motor
M1S : Swing motor
PCB1∼PCB3 : Printed circuit board
R1T, R2T : Thermistor
S1∼S36 : Connector
S1W : Operation switch
X1M : Terminal strip
Signal
receiver
CAUTION
Note that operation will restart
automatically if the main power supply is
turned off and then back on again.
(Terminal for centralised
control)
Transmission
circuit
FT(Y)S50B
3D038466A
g
Field wiring
Outdoor
Indoor
Infrared remote
control
R
: Protective earth
FG : Frame ground
FU : Fuse
H1∼H3 : Harness
H1P∼H3P : Pilot lamp
M1F : Fan motor
M1S, M2S : Swing motor
PCB1∼PCB5 : Printed circuit board
R1T, R2T : Thermistor
S1∼S38 : Connector
S1W : Operation switch
X1M : Terminal strip
Signal
receiver
CAUTION
Note that operation will restart
automatically if the main power supply
is turned off and then back on again.
Rectifier
Transmission
circuit
•
Wall Mounted Unit • R-410A • FT(Y)S20,25,35,50,60BVMB
1
5
10
• Split - Sky Air • Indoor units
