Daikin ARK25BVMB [12/16] Wiring diagrams

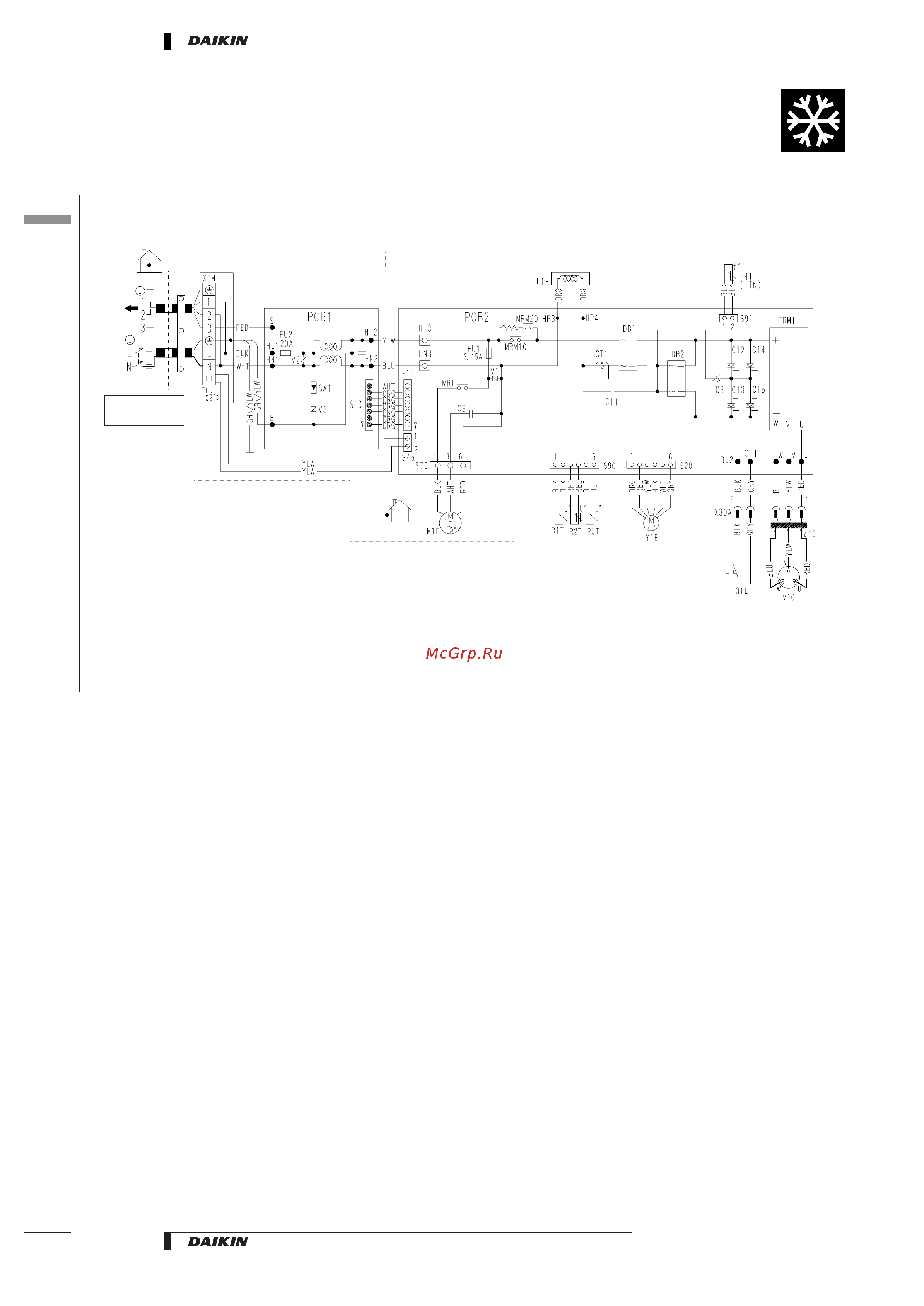

Wiring diagrams

3D038019C

ARK25,35

: Protective earth

X1M : Terminal strip

C9, C11

C12∼C15 : Capacitor

CT1 : Current transformer

DB1, DB2 : Diode bridge

F1U, F2U : Fuse

L : Live

L1 : Coil

L1R : Reactor

M1C : Compressor motor

M1F : Fan motor

PCB1 : Printed circuit board

MRL,

MRM10, MRM20 : Magnetic relay

N : Neutral

PCB2 : Printed circuit board

Q1L : Overload protector

R1T, R2T, R3T, R4T : Thermistor

S10, S11, S20, S45

S70, S90, S91

HL3, HN3 : Connector

SA1 : Surge arrester

Z1C : Ferrite core

IC3 : Solid state relay

TFU : Thermal fuse

TRM1 : Transistor module

V1, V2, V3 : Varistor

Y1E : Electronic expansion valve coil

Field wiring

Indoor

Outdoor

(outdoor)

(Condenser)

(discharge)

•

Pair application • R-410A • ARK25,35BVMB

• Split - Sky Air • Outdoor Units
