Daikin ARK25BVMB [16/16] Installation

Installation

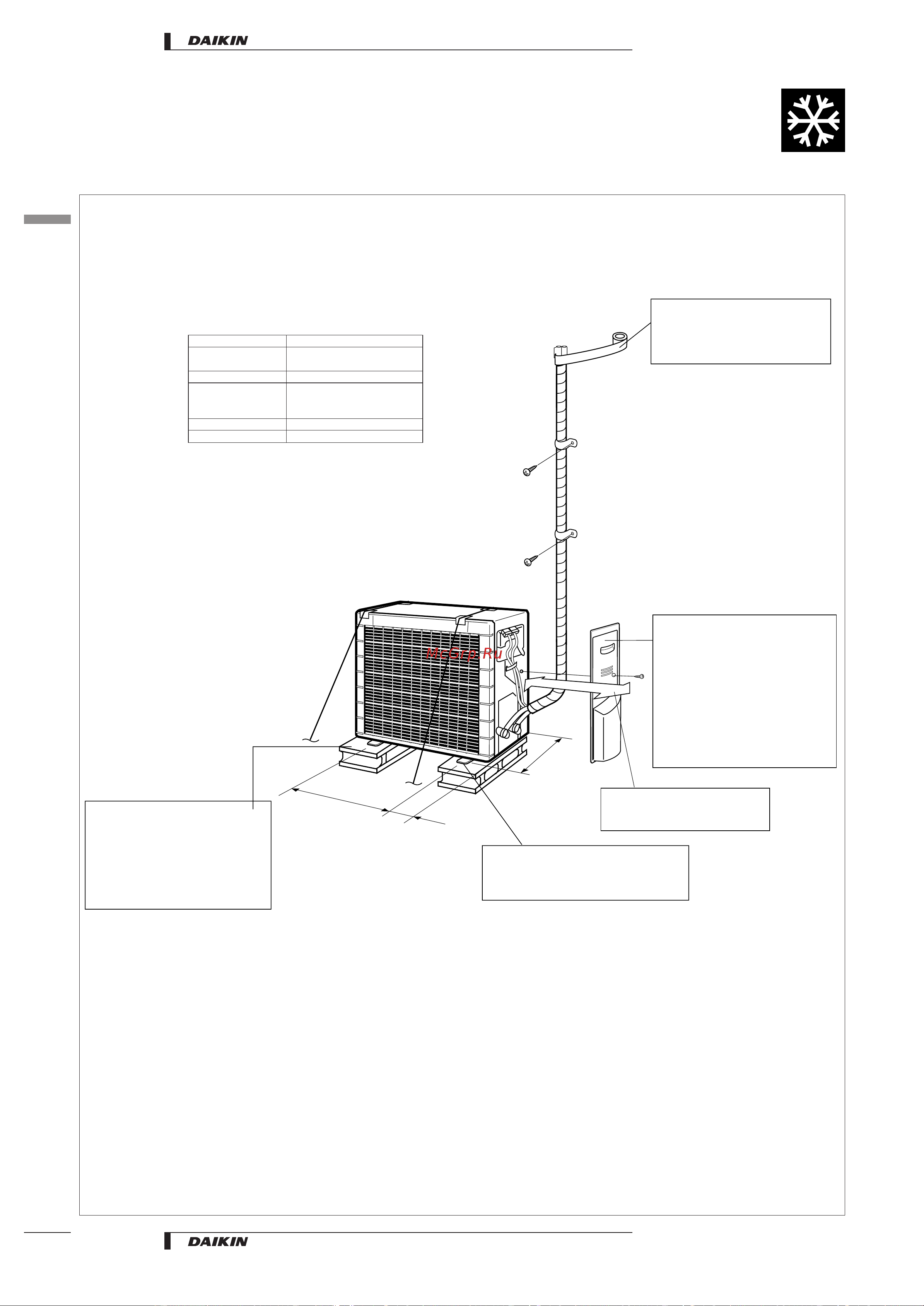

Outdoor unit installation drawings

Wrap the installation pipe with the finishing

tape from bottom to top

Model 25 / 35 class

Max. allowable length

Cooling only: 25m

Heat pump: 15m

Max. allowable height 15m

Additional refrigerant required

for refrigerant pipe exceeding

10 m in length.

20 g/m

Gas pipe O.D. 9.5 mm

Liquid pipe O.D. 6.4 mm

* Be sure to add the proper amount of additional refrigerant.

Failure to do so may result in reduced performance.

In sites with poor drainage, use block bases for outdoor

unit. Adjust foot height until the unit is leveled. Otherwise,

water leakage or pooling of water may occur.

Where there is a danger of the unit falling, use foot bolts, or

wires.

Allow space for piping and electrical servicing.

Service lid

How to remove the service lid.

This service lid is an open/close type.

Slide the lid downward to remove it.

How to attach the service lid.

Insert the upper part of the service lid into the

outdoor unit to install.

Tighten the screws.

Foot bolt-hole

centres

Foot bolt-hole

centres

From unit’s side

470

115

288

250 mm from wall

•

Pair application • R-410A • ARK25,35BVMB

• Split - Sky Air • Outdoor Units
