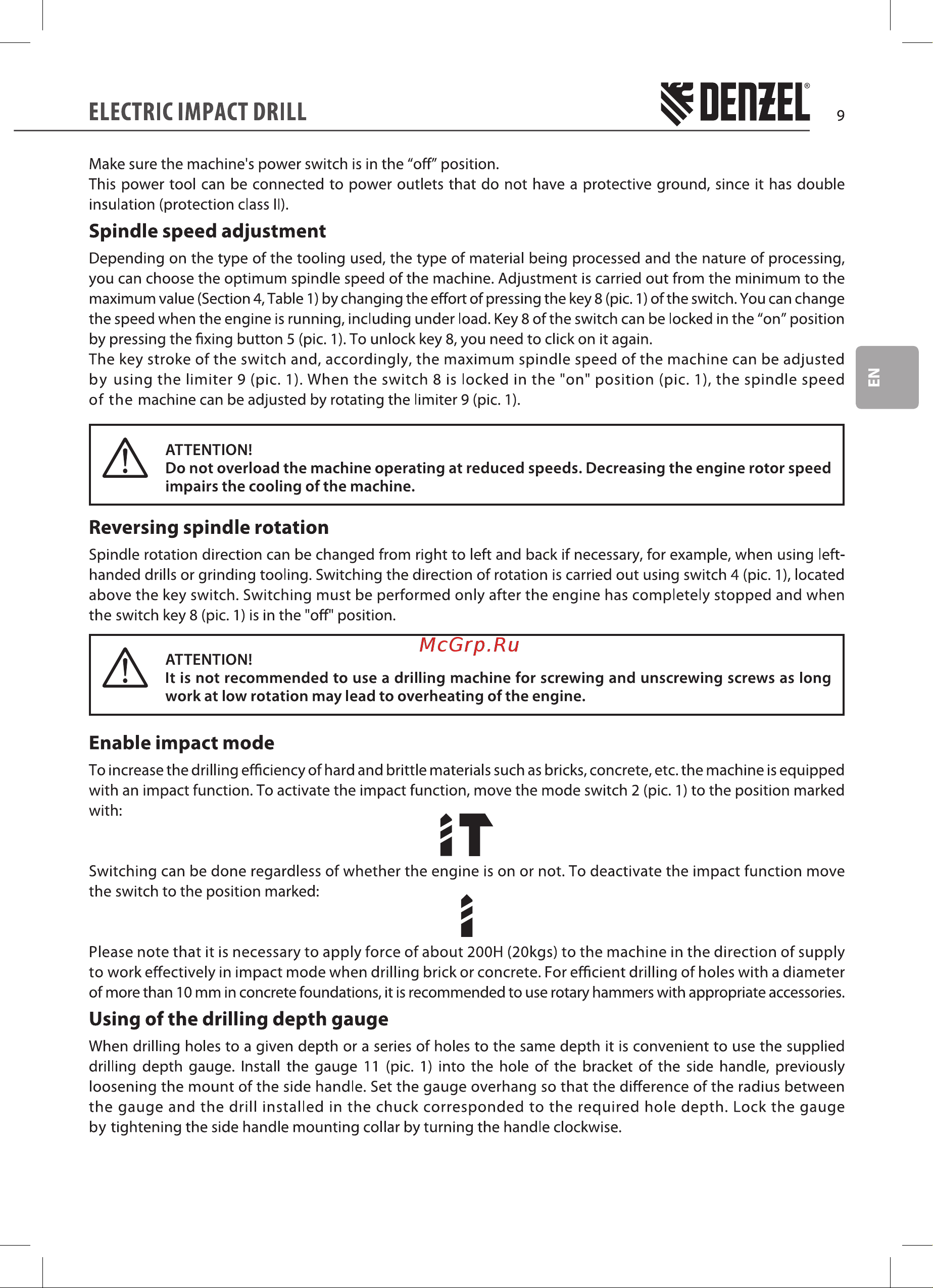

DEnZEL ELECTRIC IMPACT DRILL Make sure the machine s power switch is in the off position This power tool can be connected to power outlets that do not have a protective ground since it has double insulation protection class II Spindle speed adjustment Depending on the type of the tooling used the type of material being processed and the nature of processing you can choose the optimum spindle speed of the machine Adjustment is carried out from the minimum to the maximum value Section 4 Table 1 by changing the effort of pressing the key 8 pic 1 of the switch You can change the speed when the engine is running including under load Key 8 of the switch can be locked in the on position by pressing the fixing button 5 pic 1 To unlock key 8 you need to click on it again The key stroke of the switch and accordingly the maximum spindle speed of the machine can be adjusted by using the limiter 9 pic 1 When the switch 8 is locked in the on position pic 1 the spindle speed of the machine can be adjusted by rotating the limiter 9 pic 1 A ATTENTION Do not overload the machine operating at reduced speeds Decreasing the engine rotor speed impairs the cooling of the machine Reversing spindle rotation Spindle rotation direction can be changed from right to left and back if necessary for example when using left handed drills or grinding tooling Switching the direction of rotation is carried out using switch 4 pic 1 located above the key switch Switching must be performed only after the engine has completely stopped and when the switch key 8 pic 1 is in the off position A ATTENTION It is not recommended to use a drilling machine for screwing and unscrewing screws as long work at low rotation may lead to overheating of the engine Enable impact mode To increase the drilling efficiency of hard and brittle materials such as bricks concrete etc the machine is equipped with an impact function To activate the impact function move the mode switch 2 pic 1 to the position marked with Switching can be done regardless of whether the engine is on or not To deactivate the impact function move i Please note that it is necessary to apply force of about 200H 20kgs to the machine in the direction of supply to work effectively in impact mode when drilling brick or concrete For efficient drilling of holes with a diameter of more than 10 mm in concrete foundations it is recommended to use rotary hammers with appropriate accessories Using of the drilling depth gauge When drilling holes to a given depth or a series of holes to the same depth it is convenient to use the supplied drilling depth gauge Install the gauge 11 pic 1 into the hole of the bracket of the side handle previously loosening the mount of the side handle Set the gauge overhang so that the difference of the radius between the gauge and the drill installed in the chuck corresponded to the required hole depth Lock the gauge by tightening the side handle mounting collar by turning the handle clockwise
