Split Sky Air • Indoor Units
12
Indoor Units • Cooling Only/Heat Pump • FCQH-D8VEB

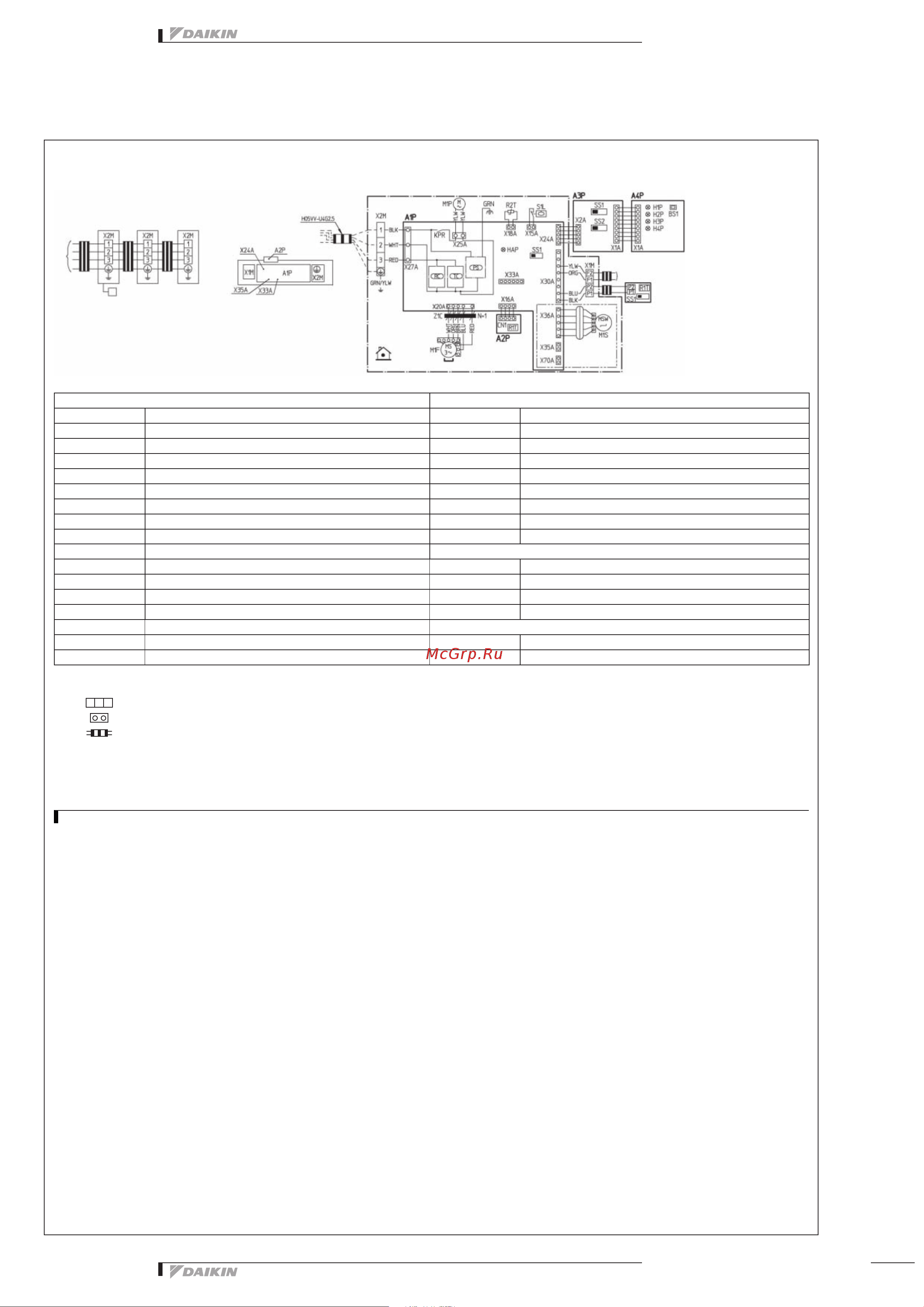

7 Wiring diagram
7 - 1 Wiring diagram
FCQH71-140D8VEB
3TW32426-1
NOTES
In case of using a central remote control, connect it to the unit in accordance with th attached installation manual.
X24A, X33A and X335A are connected when the optional accessories are being used.
Remote control model varies according to the combination system, confi rm engineering data and catalogs, etc. before connecting.
Confi rm the method of setting the selector switch (SS1, SS2) by installation manual and engineering data, etc.
In case of self cleaning panel follow the self cleaning panel installation instruction.
1.
2.
3.
4.
5.
Indoor unit
(master)
Indoor unit Receiver display unit (attached to wireless remote controller)
A1PPrinted circuit board A3PPrinted circuit board
A2P Printed circuit board (Humidity sensor unit) A4PPrinted circuit board
HAP Light emitting diode (Service monitor green) BS1 Push button (On/off)
KPR Magnetic relay (M1P)H1P Light emitting diode (On-red)
M1F Motor (Indoor fan) H2P Light emitting diode (Timer-green)
M1P Motor (Drain pump)H3P Light emitting diode (Filter sign-red)
M1S Motor (Swing fl ap)H4P Light emitting diode (Defrost - orange)
PS Power supply circuit SS1 Selector switch (Main/sub)
R1T Thermistor (Air) SS2 Selector switch (Wireless address set)
R2T Thermistor (Coil)
Connector for optional parts
RC Signal receiver circuit X24A Connector (Wireless remote control)
S1L Float switch X33A Connector (Adapter for wiring)
SS1 Selector switch (Emergency) X35A Connector (Group control adapter)
TC Signal transmission circuit X70A Connector (Self cleaning panel)
X1M Terminal strip
Wired remote control
X2M Terminal strip R1T Thermistor (Air)
Z1C
Ferrite core SS1 Selector switch (Main/sub)
: Terminal Colors: RED Red YLW Yellow BRN Brown
: Connector BLK Black GRN Green GRY Grey
: Field wiring WHT White ORG Orange BLU Blue
Indoor unit
(slave)
Indoor unit
(slave)
Remote control
To outdoor unit
Control box
To outdoor unit
Norm. emg.
Receiver display unit
Central remote
control (note1)
Wired remote
control
indoor
Exept for self
cleaning panel
(note 5)
In case of simultaneous operation system
35~140-Class
