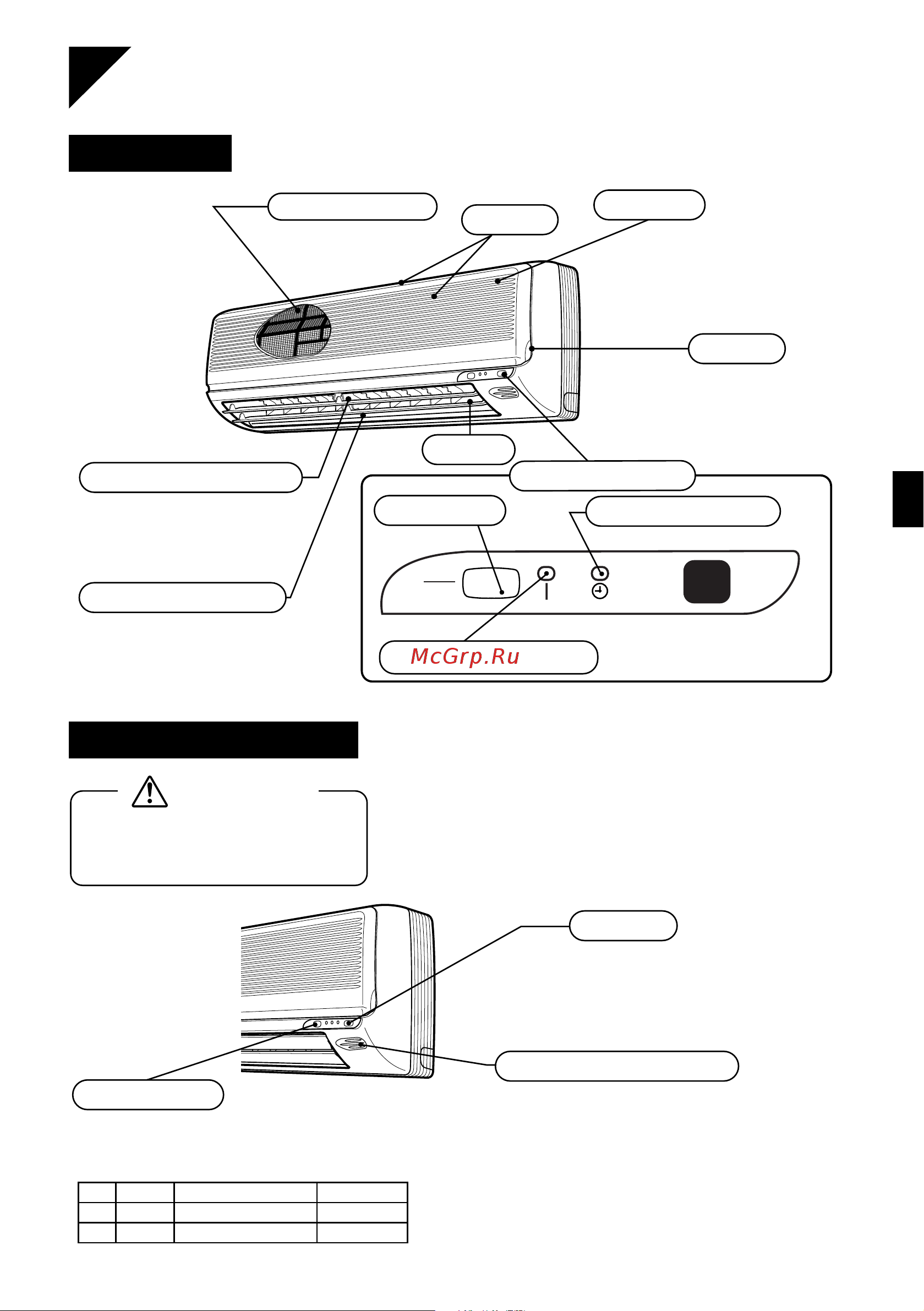

Indoor unit
Receiver explanation
Names of Parts
Room temperature sensor:
• It senses the air temperature around the unit.
FT
FTY
Mode
COOL
AUTO
Air flow rate
AUTO
AUTO
Temperature setting
22˚C
25˚C
• The operation mode refers to the following table.
• Push this button once to start operation. Push once again to stop it.
• This button is useful when the remote controller is missing.
ON/OFF button
• It receives signals from the
remote controller.
• When the unit receives a signal,
you will hear a short beep.
Before opening the front grille, be sure to
stop the operation and turn the breaker
OFF. If the power is on, the fan may rotate
inside and may cause injury.
CAUTION
Receiver:
ON
OFF
Front grille
Indicator lamps
Grille tab
Operation lamp (green)
Flap (horizontal blade)
(See page 10.)
TIMER lamp (orange)
The louvre is inside of the air
outlet.
(See page 10.)
Air outlet
Louvre (vertical blades)
ON/OFF button
Air inlet
Air purifying filter
Air purifying filters are
attached to the inside of
the air filters.
(See page 11.) (See page 11.)
