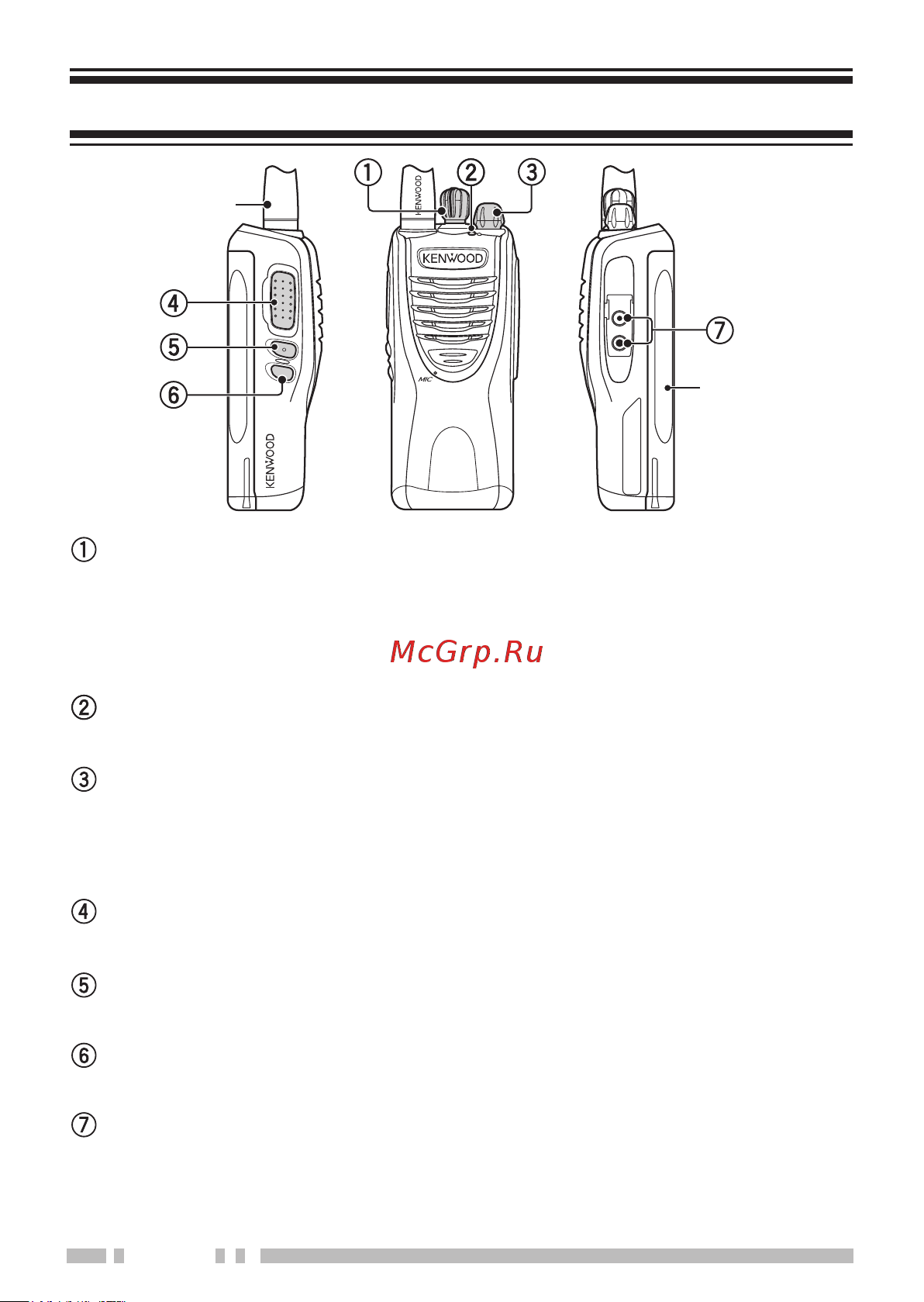

ORIENTATION

Antenna

Battery pack

Channel selector

Rotate to change the operating channel.

• Channel Annunciation: When changing channels, the

transceiver will announce the newly selected channel number.

(This can be deactivated by your dealer.)

LED indicator

For the LED indicator status, refer to page 9.

Power switch/ Volume control

Turn clockwise to switch ON the transceiver. To switch OFF

the transceiver, turn counterclockwise until a click sounds.

Rotate to adjust the volume level.

PTT (Push to Talk) switch

Press and hold, then speak into the microphone to transmit.

Side 1 key {refer to page 7}

Press to activate its programmable function.

Side 2 key {refer to page 7}

Press to activate its programmable function.

Speaker/ microphone jacks

Insert the Speaker/ microphone or Headset plug into this

jack.
