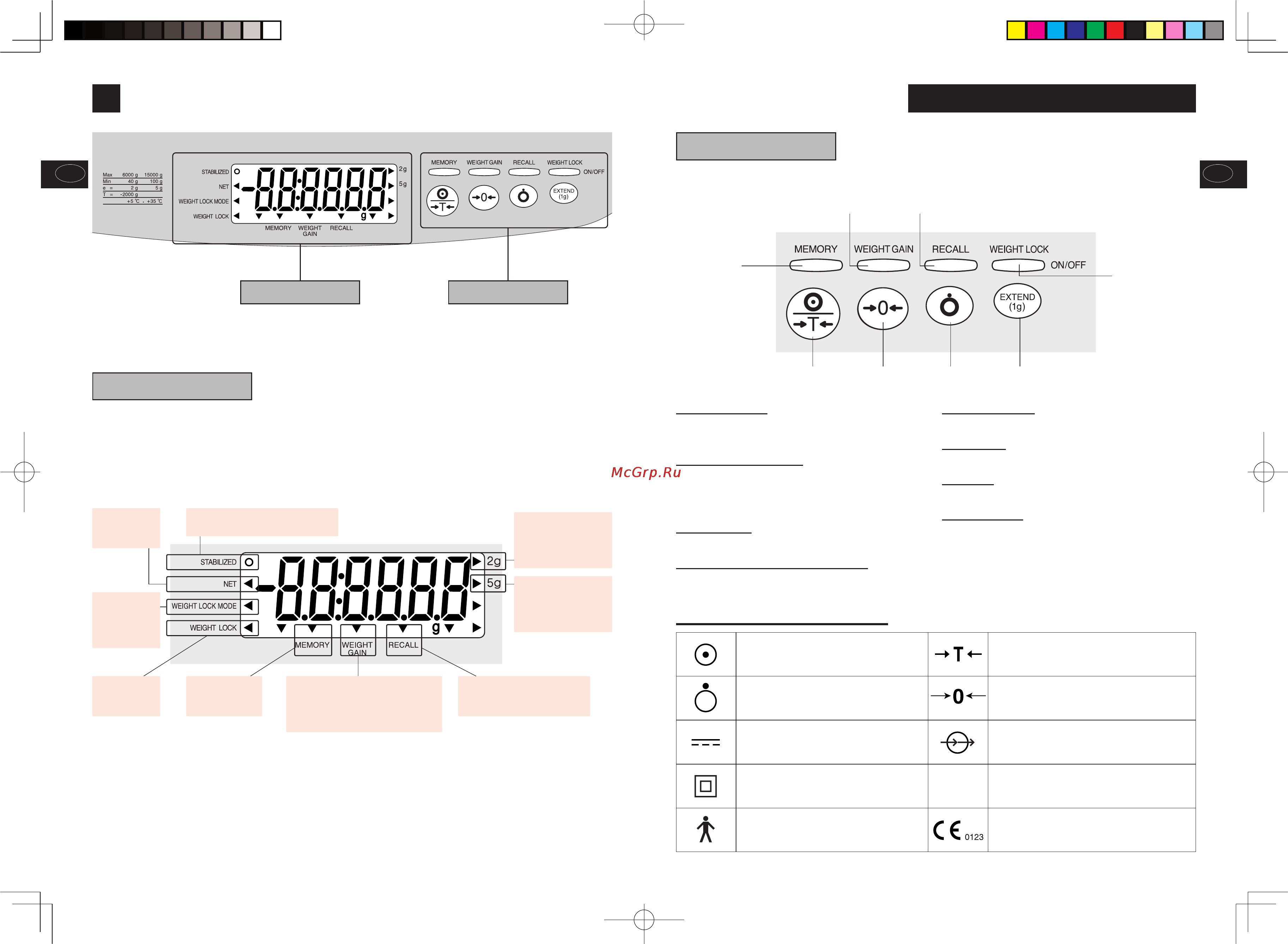

Names and Functions of Display Panel and Operation Keys
* The pointers (black triangles) indicate active items.
* The backlight is on only when the AC adapter is used.
* The
s
mark appears in the digital display next to each of the following operations, indicating
which are in effect.
Measurement is stabilized.
Tare is
specified.
Memorized value is
recalled and displayed.
Weight gain is displayed
for 5 seconds after pressing
the Weight Gain key.
Weight is
memorized.
Display is
on hold.
Weight
Lock Mode
is on.
* Each key makes a “beep” sound when pressed.
(2)
(5) (6) (7) (8)
(3)
(1)
(4)
Display Panel
Operation Keys
Lit when
minimum
graduation is 2 g.
Lit when
minimum
graduation is 5 g.
(1) MEMORY
•Sets the current weight in memory.
•In set mode – sets the “display hold” time.
(2) WEIGHT GAIN
•Indicate the weight difference between mem-
ory weight and current weight.
•Set auto power off time.
(3) RECALL
•Recalls previous reading.
(4) WEIGHT LOCK ON/OFF
•Sets the “weight lock mode” on or off.
(5) ON/TARE
•Turns the power on or sets the tare.
(6) ZERO
•Scale resets to zero.
(7) OFF
•Turns power off.
(8) EXTEND
•Pressing this button, displays graduation in
units of 1g. T
his is not legal for transaction
certification (NAWI). Only operates in “weight
lock mode”.
Display Panel
Operation Keys
Symbols and their Meanings
Display Unit On.
Display Unit Off.
Direct current
Class II Equipment
Output
Zero reset
Turn on the tare weighing function.
Caution. Refer to the attached
notes.
Conformity with Medical Device
Directive 93/42/EEC
Type B applied part
BD815MA_GB 07.11.20, 11:35 AM12-13
