Part Number:
Sheet no.
DESCRIPT ION OF CHA NGE
ECN #
Format Change -
Tacony CFC
Hydromist 35
HM35
Reference Parts
List
Issue: 31
Drawing Number: 09-1108- Series( )A 0000
1 / 3
Drawing Issue:
C
Modified By:
J WYLES

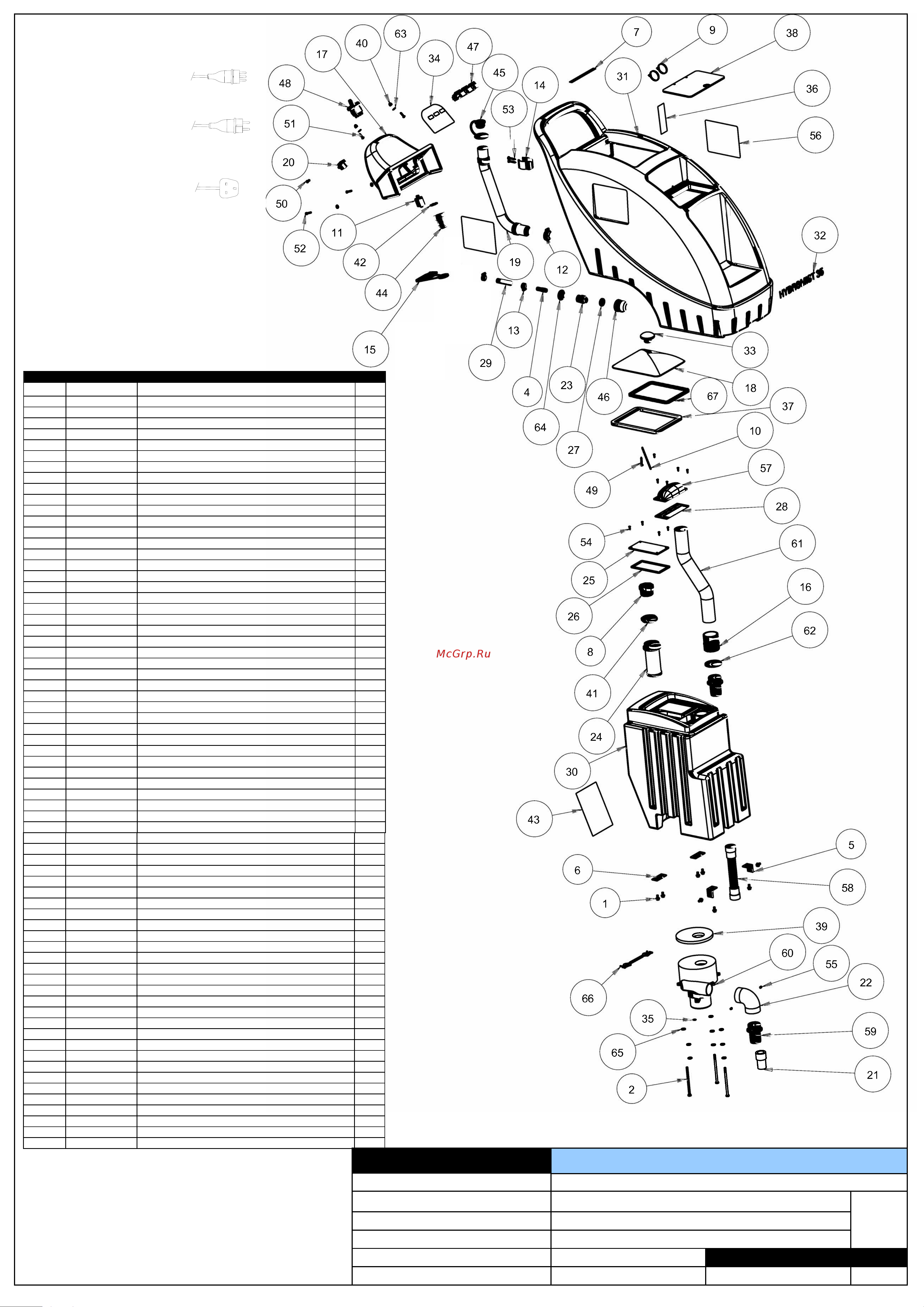

Ref. No. Part No. Part Description Qty
HM35 Sheet 1
0
81 X8209S 1/4-20 X 1/2" SERRATED HEX
3
2
X8288
1/4-20 X 4-1/2" BOLT
1
3A
04-3055-0053 POWER CORD UK 15M 3CORE ORANGE 16A C19 CONNECTOR
1
3B
04-3055-0153 POWER CORD EURO 15M 3CORE ORANGE 16A C19 CONNECTOR
1
3C
04-3055-0353 POWER CORD AUS 15M 3CORE ORANGE 16A C19 CONNECTOR
14 7AT004
BARB 1/2 HOSE 1/4 MALE
25
X9086
BRACK TANK MOUNT 90 DEGREES
2
6
X9085 BRACKET TANK MOUNT
1
7
X9134 BRUSH WARNING LABEL
1
8
X9075
BUSHING 1-1/2" X 1-1/4" PVC
29
X8150 CABLE TIE 11" BLACK
1
10 X9068
CHAIN FOR LID
1
11 X1192 CIRCUIT BREAKER 2.5 AMP
1
12
7DL005 CLAMP 1-1/2 WORM GEAR StSt HEX
2
13
7DL008 CLAMP 1/2 WORM GEAR STAINLESS HEX
1
14
72173A
CLIP SPRING
1
15 BA00163582
CORD STRAIN RELIEF BLACK
1
16 PX63
COUPLER PLASTIC 1-1/2" SLIP
1
17 X9043TEAL
COVER TEAL SCE
1
18
X9034-C
DOME LID AND GASKET
119 PAS37 DRAIN HOSE
1
20 X9281 EMI FILTER
1
21 K1123
EXPANDER CUFF 1-1/4" TO 1-1/2" GRAY
1
22 PX11A FITTING PLASTIC ELBOW 90
1
23 PX48
FITTING, BRASS, BULKHEAD 3/4"
124
X9053L FLOAT CAGE WITH LIGHT BALL
1
25 X9080
FLOAT COVER
1
26 X9084
GASKET COVER SCE
1
27
PX48G GASKET FIBER 1.125 OD X .75 ID
1
28 X9071 GASKET SMALL DOME
1
29 70079C HOSE 1/2" WIRE REINFORCED 21" LONG
1
30 X9041 REPRO HOUSING RECOVERY
1
31 X9042TEAL HOUSING SOLUTION
1
32
X8400TV
HYDROMIST 35 LABEL
1
33 X9110 KNOB LARGE DOME LID
1
34
X9093TV LABEL 3 HOLE SWITCH PANEL
1
35 X9214
LABEL, GROUND SYMBOL
1
36
X9125-1
LABEL, TANK CAPACITY
1
37
X9120-2
LARGE DOME SPACER GASKET
1
38 X9081
LID SOLUTION TANK
139 X9120-1
MOTOR GASKET
2
40 7DN004
NUT CAP 10-32
141 PX46
NUT LOCK 1-1/2"
1
42 X8008N
NUT, LOCK, 1/2" STEEL CONDUIT
143 X9057
OPEATING INSTRUCTION LABEL
1
44 X8008P
PLASTIC STRAIN RELIEF **
145 PAS36
PLUG DRAIN HOSE
146 71495A
PUMP PROTECTION FILTER
347 X9506
ROCKER SWITCH
1
48 X9200
ROCKER SWITCH WITH PADDLE
149
X8270
SCREW 10-24 X 1/2" PHIL
1
50 71651A
SCREW 10-32 X 1/2 PHIL 18-8 StSt
2
51 7BR005
SCREW 10-32 X 3/4" PHIL StSt
2
52 X9135
SCREW 10-32 X 7/8" SOC
2
53 X9098
SCREW #10 X 1" BLACK ZINC
9
54 X8261SS
SCREW #6 X 1/2 PHIL StSt
255 X8222
SCREW 1/4-20 X 3/16 SOC
2
56 X9206TV
SIDE LABEL
1
57 X9033
SMALL DOME
158 X9092
VAC HOSE 1.5" x 21"
259 PX25
VAC INLET STRAIGHT
160 72611B
VACUUM 3-STAGE 230V
1
61 X9129
VACUUM STACK ASSEMBLY
162 PX14A
VALVE GASKET
463 7CM003
WASHER #10 FLAT S/S
164 72274A
WASHER 3/4" NEOPRENE-BOND
965 X8858
WASHER ID.299 OD.622 THK.055
166 X9842
WIRING HARNESS INCLUDES PART WITH **
1
67 X9124
RECOVERY DOME GASKET
3A
3B
3C
Date: r-19p-A42
