Part Number:
Sheet no.
DESCRIPT ION OF CHA NGE
ECN #
Format Change -
Tacony CFC
Hydromist 35
HM35
Dat
24
e:
pr-19
A
-
Reference Parts
List
Issue:
31
Drawing
Number: 09-1108- )A Series(0000
2 / 3
Drawing Issue:
C
Modified By:
J WYLES

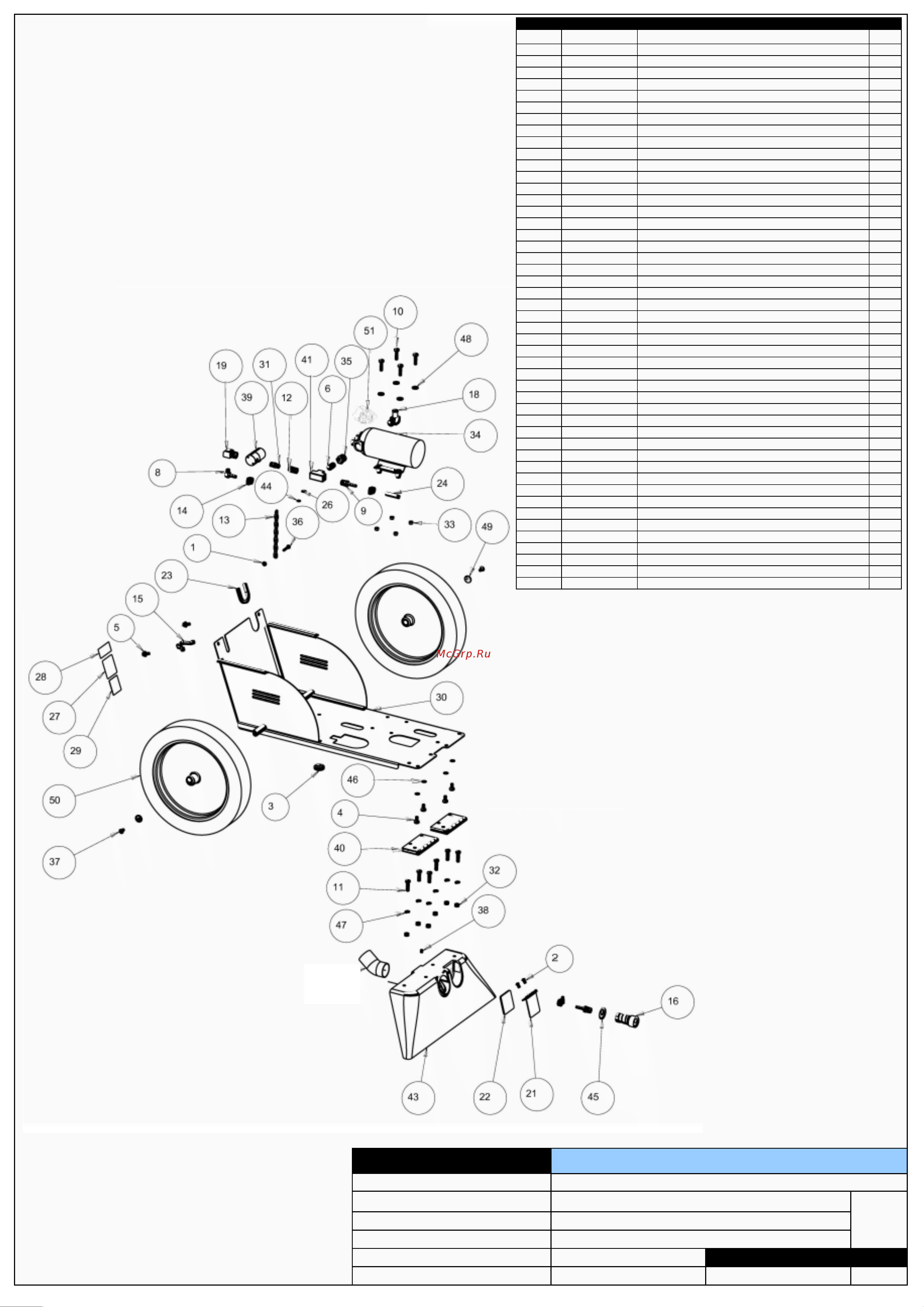

Ref. No. Part No. Part Description Qty
HM35 Sheet 2
1
1 X8241
NUT HEX HEAD 10-24 StSt
2
2 7BH004
SCREW Philips Pan Head 10-32 x 3/8" StSt
1
3 X9100
GROMMET 1/2"
4
4 X8209
SCREW HEX HEAD CAP 1/4-20 X 1/2" ZINC
1/4-20 X 1/2 INCH SERRATED HEX SELF LOCKING FLANGE SCREW ZP
25 X8209S
16 PX32
1/4" CLOSE NIPPLE BRASS
1
8 7AT006
BARBED ELBOW CONNECTOR 1/4 - 1/8
29 7AT003
HOSE BARB 1/4" HOSE X 1/4 MALE
4
10
X9211
BOLT 1/4-20 x 1"
6
11
X8282
BOLT HEX HEAD 1/4-20 X 1 StSt
1
12
7AG002
BUSHING 1/4-1/8 NPT
1
13 X9144
CHAIN 28" ZINC PLATED
3
14
7DL003
CLAMP 1/4" WORM GEAR StSt
1
15
X9111
Cord Clamp
1
16
PX6
FEMALE DISCONNECT
1
18
71507A
ELBOW 1/2H - 3/8 MPT
1
19
SW139
ELBOW STREET 1/8"
1
21
X9096
FLIP DOOR WITH HINGE ASSEMBLY
1
22
X9097
FLIP DOOR GASKET
1
23
X9109
GROMMET 5/8" LONG EXTRUDED
124
71817A
BRAIDED HOSE 1/4" (16" LONG)
1
26
X9214
LABEL Grounding Symbol
1
27
X8459
LABEL SERIAL NUMBER PLAIN
1
28
X8976
LABEL WARNING
1
29
X1003
MADE IN THE USA LABEL
1
30
X9012
MAIN CHASSIS ASSEMBLY
1
31
7CX001
NIPPLE HEX 1/8"
6
32
7CN001
NUT 1/4-20 HEX
4
33
X8237
NUT, 1/4-20, LOCK NYLON INSERT ZINC PLATED
1
34
SF814-2
100 PSI SHURFLO PUMP 220V
1
35 PC20
REDUCER 3/8" TO 1/4"
1
36
7CU001
SCREW PHILLIPS PAN HEAD 10-24 X 1 StSt
2
37
X8210
SCREW 1/4-20 X 1/2" PHILLIPS FLAT HEAD ZP
1
38
X8222
SCREW SOCKET SET FLAT POINT LOC-TITE 1/4-20 X 3/16
1
39
SW132-6
SOLENDOID 240v 50hz 100PSI
2
40
X9014
TANK HINGE
1
41 7AV001
TEE UNION 1/4 NPT
1
43 X9009A
VACUUM SHOE ALUMINIUM AND TUBE PFXS900S
1
44 7CY001
WASHER INTERNAL LOCK StSt
1
45 X8239
WASHER 1.5" O/D X .400" I/D ZP
446 7CY002
WASHER 1/4" INTERNAL LOCK StSt
647
7CL002
WASHER 1/4" SPLIT LOCK
4
48 X8858
WASHER ID.299 OD.622 THK.055
249
X8020
WASHER COUNTERSUNK
2
50 X9066
12" WHEEL
1
51
X1535
SF814-2 PUMP HEAD
1
Not Shown PT400H
PRIMING HOSE (HM35 HM55/100 HM55/400)
9
14
