SiE-84
2 Service Manual

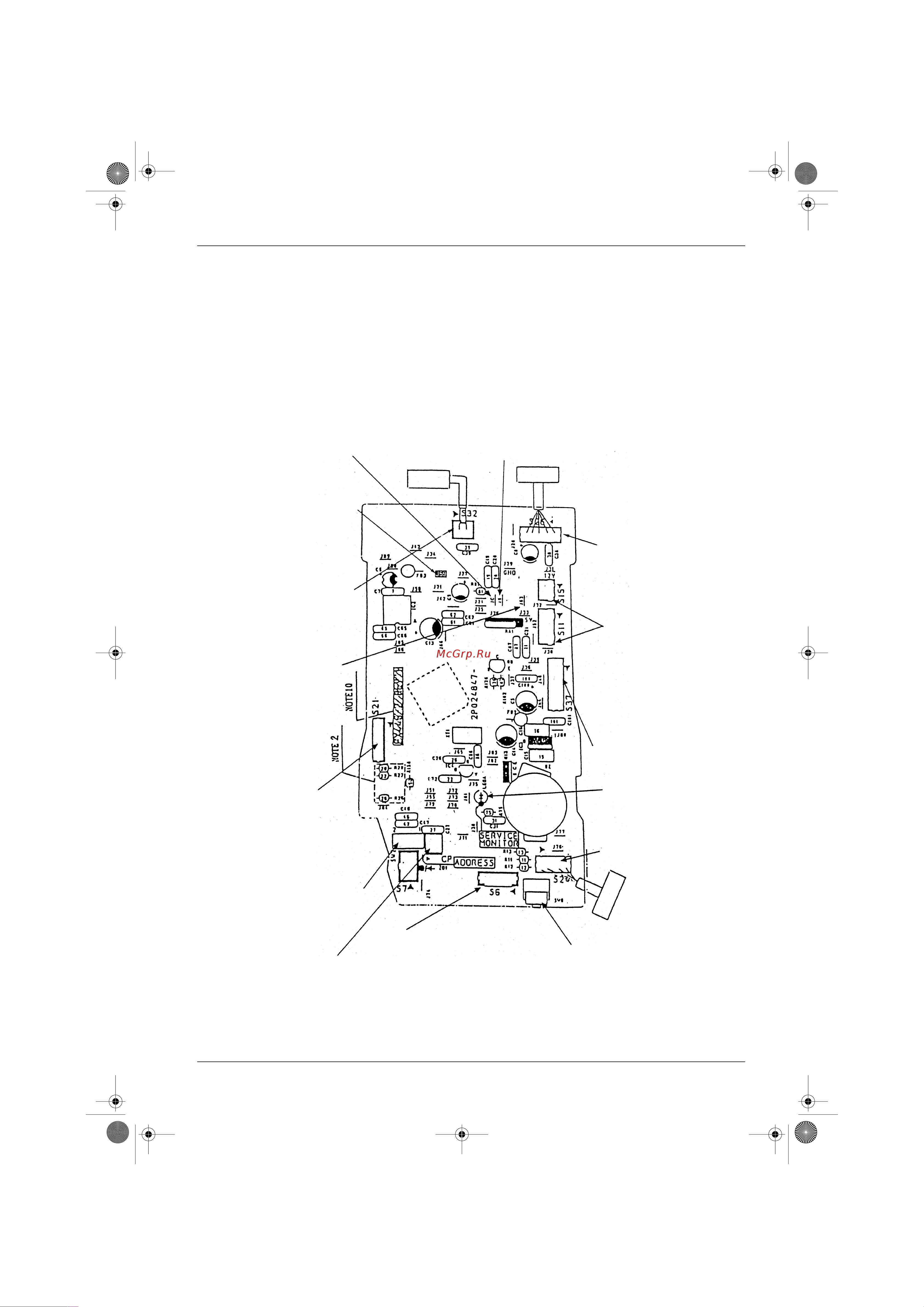

1. Printed circuit board connector wiring diagram and name
(1) FL25/35/40/45GV1NB
FLY22/35/40/50GV1NB
PCB1 (Control)
JC : Control function change
jumper
(When cut → No Auto-restart
function)
J59 : Jumper cut :
Ceiling Initial. Floor
(Heat Pump Only)
S32 : Connector for heat
exchange thermostat
J63 : Control function
change jumper
(When cut →
Cancellation of time limit
for powerful operation)
S21 : Connector for
RS232C interface (For
live test)
SW2(S2W) :
Address switch
CP : Connector for line check
JB : Control function change
jumper
(When cut → Setting of fan RPM
"0" during thermostat off)
S26 : Connector for PC
Board
S11, 15 : Connector for
centralized control PC
Board
S37 : Connector for
Power Supply PC Board
LED A : LED for service
Monitor
S24 : Connector for
display PC Board
SW8 (S8W) : Cleaning
indicator reset switch
S6 : Connector for swing motor
