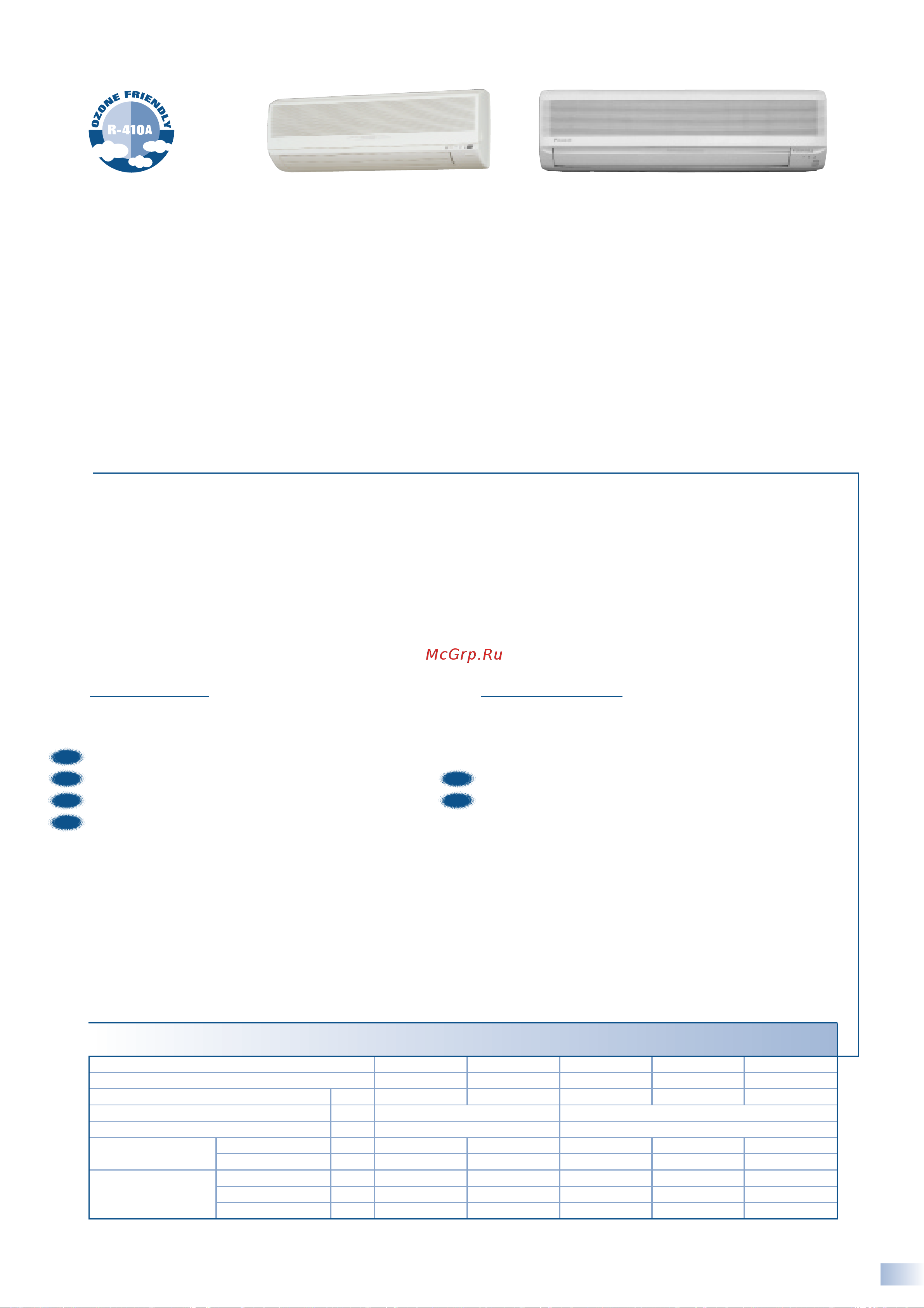

13
FTK/FTX25-71AZVMB
FEATURES
FTK/FTX25-35AZ
FTK/FTX50-60-71AZ
• Inverter powerful mode • Inverter powerful mode
• Movement sensor • Home leave operation
• Home leave operation • Outdoor unit silent operation
• Outdoor unit silent operation • Indoor unit silent operation
• Indoor unit silent operation • Photocatalytic deodorising filter
• Photocatalytic deodorising filter • Air purification filter
•
Air purification filter • Washable grille
• Washable grille • Night set mode
• Night set mode • Power air flow flap (auto swing: up & down)
•
Power air flow dual flap (auto swing: up & down) • Wide angle louvers (auto swing: right & left)
• Wide angle louvers • 24 hour ON/OFF timer
• 24 hour ON/OFF timer • Interface adapter for DIII-net (optional)
•
Interface adapter for DIII-net (optional)
FTX50-71AZVMB
FTK/FTX25,35AZVMB
NEW
NEW
NEW
NEW
NEW
NEW
SPECIFICATIONS
FTK25AZVMB FTK35AZVMB FTK50AZVMB FTK60AZVMB
FTX25AZVMB FTX35AZVMB FTX50AZVMB FTX60AZVMB FTX71AZVMB
2.5 3.5 5.0 6.0 7.1
273x784x185 298x1,050x190
7.5 12
38/25/22 39/26/23 44/35/32 45/37/35 46/37/34
38/25/22 39/26/23 42/32/29 44/34/31 46/34/31
Ø6.4 Ø6.4 Ø6.4 Ø6.4 Ø9.5
Ø9.5 Ø9.5 Ø12.7 Ø12.7 Ø15.9
Ø18.0 Ø18.0 Ø18.0 Ø18.0 Ø18.0
COOLING ONLY
HEAT PUMP
Capacity/class kW
Dimensions mm
Weight kg
Sound pressure level Cooling dB(A)
H/L/LL Heating dB(A)
Piping connection Liquid mm
Gas mm
Drain mm
Wall mounted,
inverter controlled unit
