49
16 EUW(L)*40-200MXY1/T1
BACKGROUND
The current EUW(L)*40-200KX series will be replaced by the new MX series. These chillers contain
the new G-type compressor and are equipped with the new pCO
2
controllers (see chapter 17).
Water-cooled water chillers Remote condenser chillers
EUW40MXY EUW40MXT EUWL40MXY EUWL40MXT
EUW60MXY EUW60MXT EUWL60MXY EUWL60MXT
EUW80MXY EUW80MXT EUWL80MXY EUWL80MXT
EUW100MXY EUW100MXT EUWL100MXY EUWL100MXT
EUW120MXY EUW120MXT EUWL120MXY EUWL120MXT
EUW140MXY EUW140MXT EUWL140MXY EUWL140MXT
EUW160MXY EUW160MXT EUWL160MXY EUWL160MXT
EUW180MXY EUW180MXT EUWL180MXY EUWL180MXT
EUW200MXY EUW200MXT EUWL200MXY EUWL200MXT
MODEL RANGE
FEATURES
• All models are PED pressure vessel approved
• Daikin single screw compressor
• All components optimised for use with R-134a refrigerant
• Advanced pCO
2
DDC controller
• Electronic expansion valve for refrigerant circuits >= 80HP
• Modular format
• Standard operating range down to -15°C ambient
• High quality, anti-corrosion treated components as standard
• Moisture indicator as standard
• Victaulic joints as standard
• Chilled water temperatures down to -10°C on standard unit.
(Parameter in the service menu of the DDC controller must be set by the installer)
• DICN operation as standard between all listed air-cooled and listed water-cooled units.
(air-cooled and water-cooled can not be mixed)
• Evaporator heater tape as standard on all units
• Multiple capacity steps
• Double refrigeration circuit (from 120HP on)

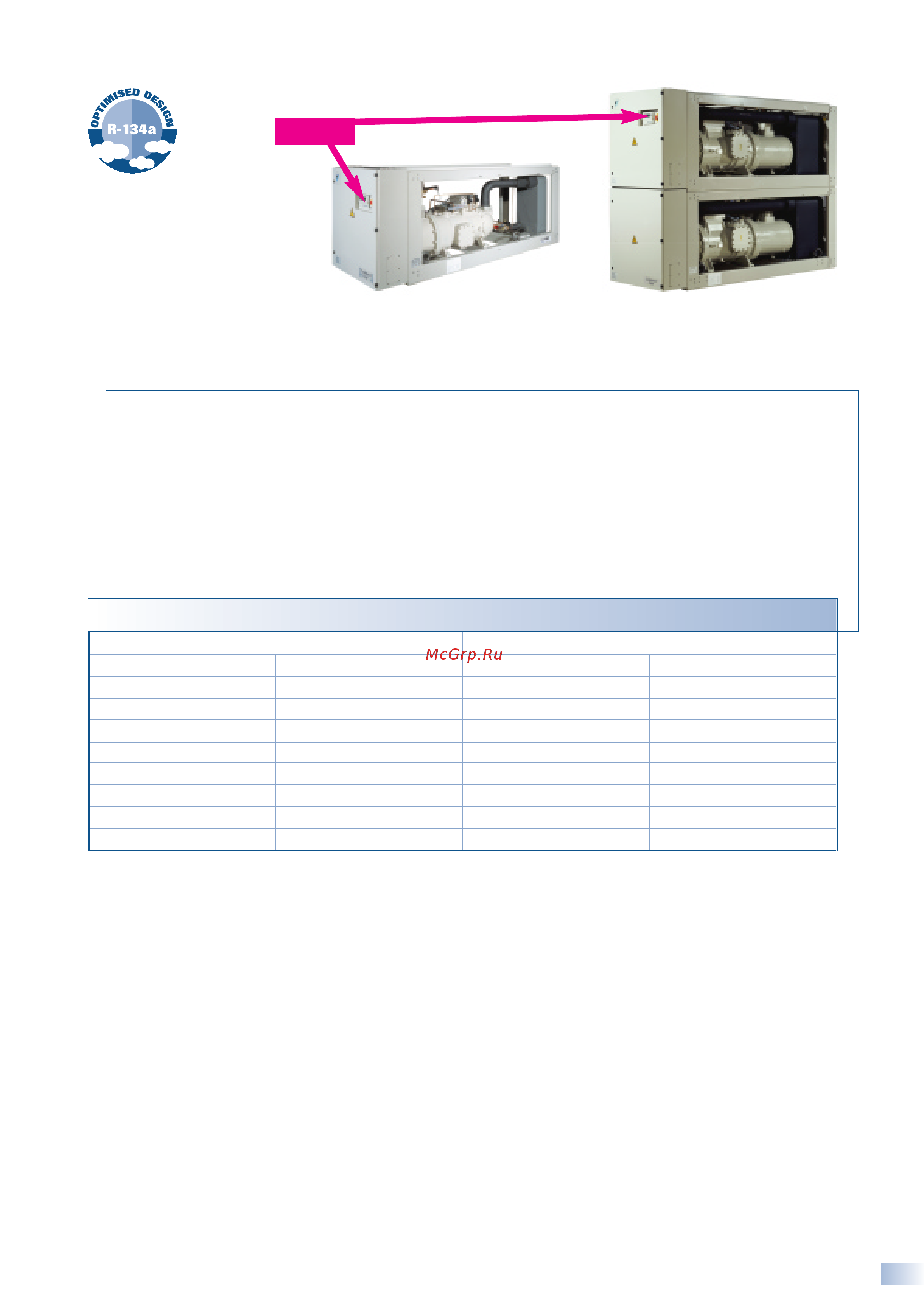

EUWL*40-100MX
Water-cooled (remote condenser)
chillers using R-134a
controller
wegretoucheren
EUW*120-200MX
