Korting HG995CTX [23/32] Electrical connection

C = Hood for exhaust removal of combustion fumes

E = Electric extractor fan for removal

of combustion fumes

A = Opening for air supply

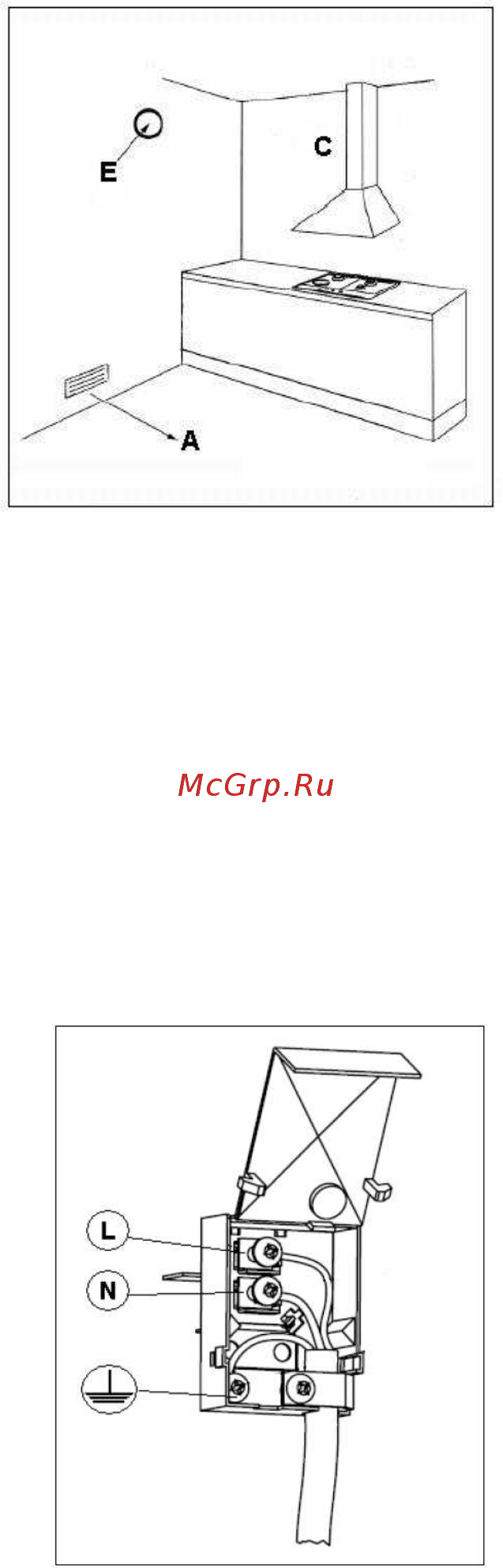

Figure 4.

The opening A must be free and keep assured that it is not obstructed from the inside or outside. Preferably

position it on the floor level, on the opposite side of the fume exhaust devices.

If the area does not allow such solution, the air could be supplied by an adjacent suitable ventilated room, as

long as it is not a bedroom, a low-pressure area or a dangerous area.

Removal of combustion fumes

Combustion fumes produced by gas appliances must get outside by means of a hood (C) connected either

directly to an exhaust duct or to the outside. See figure 4 above.

If a hood cannot be installed, an electric extractor fan (E) must be fitted to the outside wall or the window.

See figure 4 above. This electric extractor fan must have a sufficient capacity to guarantee a change of air of

the kitchen (or area) of at least 3 to 5 times its volume.

3. ELECTRICAL CONNECTION

Before connecting the appliance to the electricity supply, check if the voltage and frequency corresponds to

that indicated on the product plate, and the power supply cable is suitable for the appliance

capacity indicated on the product plate.

Assembly of the power cable

BROWN - LIVE (L)

BLUE - NEUTRAL (N)

YELLOW-GREEN - EARTH ( Ũ )

Figure 5.
