4 About the units and options
Installer reference guide
10
ERLQ004~008CA + EHVH04+08SU18+26CB6W
Daikin Altherma – Low temperature split
4P449978-1 – 2016.06

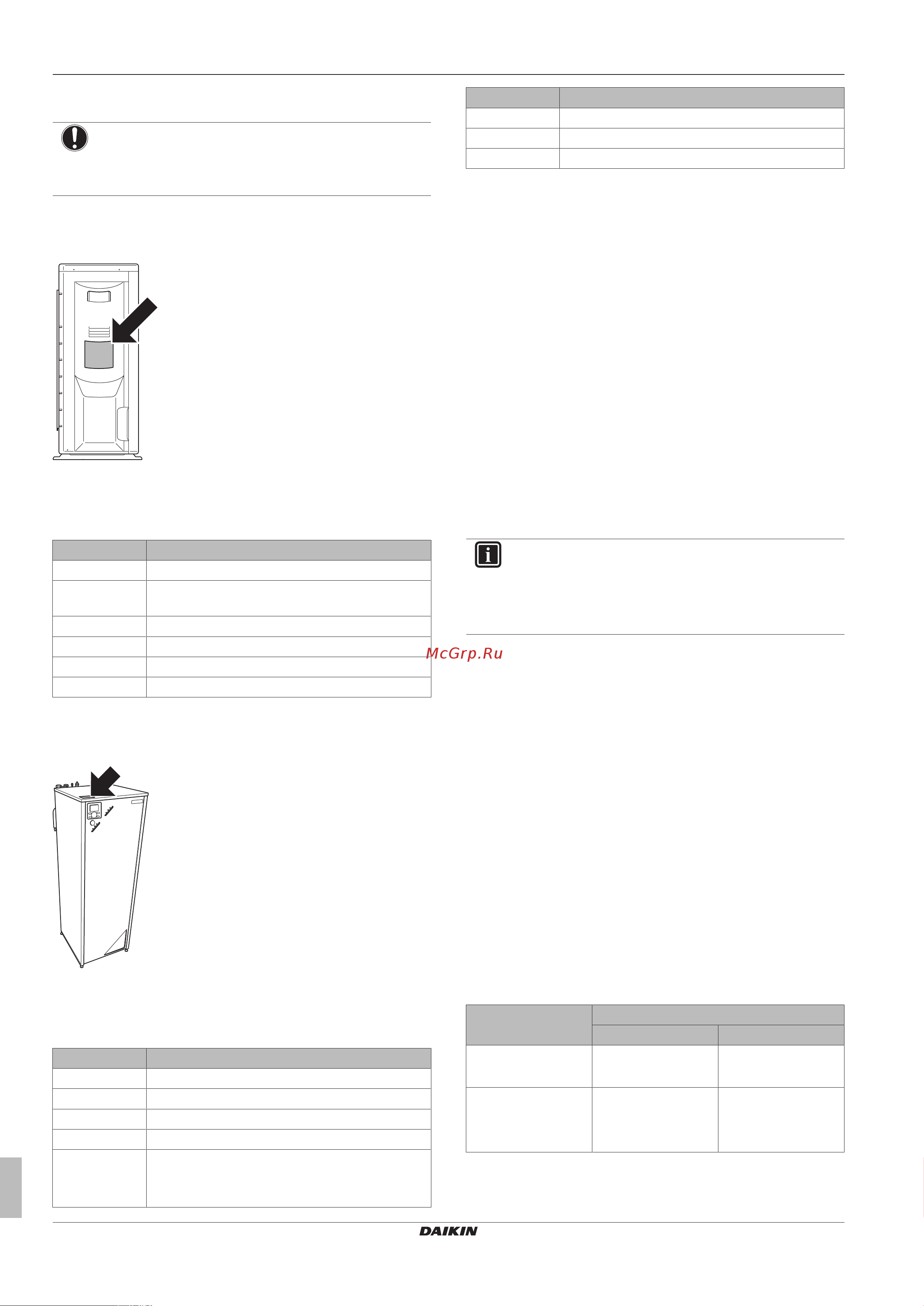

4.2 Identification
NOTICE
When installing or servicing several units at the same time,
make sure NOT to switch the service panels between
different models.
4.2.1 Identification label: Outdoor unit
Location
Model identification
Example: ERLQ006CAV3
Code Explanation
ER European split outdoor pair heat pump
L Low water temperature – ambient zone: −10~
−20°C
Q Refrigerant R410A
006 Capacity class
CA Model series
V3 Power supply
4.2.2 Identification label: Indoor unit
Location
Model identification
Example: EHVH04SU18CB6W
Code Description
E European model
HV Floor-standing indoor unit with integrated tank
H Heating only
04 Capacity class
SU Integrated tank material: Stainless steel
Model compatible with the G3 Building
Regulations in the UK.
Code Description
18 Integrated tank volume
CB Model series
6W Backup heater model
4.3 Combining units and options
4.3.1 Possible options for the outdoor unit
Drain pan (EKDP008CA)
The drain pan is required to gather the drain from the outdoor unit.
The drain pan kit consists of:
▪ Drain pan
▪ Installation brackets
For installation instructions, see the installation manual of the drain
pan.
Drain pan heater (EKDPH008CA)
The drain pan heater is required to avoid freezing-up of the drain
pan.
It is recommended to install this option in colder regions with
possible low ambient temperatures or heavy snowfall.
For installation instructions, see the installation manual of the drain
pan heater.
INFORMATION
In case the drain pan heater is used, the jumper JP_DP on
the service PCB on the outdoor unit MUST be cut.
After cutting the jumper, you MUST reset the outdoor unit
to activate this function.
U-beams (EKFT008CA)
The U-beams are installation brackets on which the outdoor unit can
be installed.
It is recommended to install this option in colder regions with
possible low ambient temperatures or heavy snowfall.
For installation instructions, see the installation manual of the
outdoor unit.
4.3.2 Possible options for the indoor unit
Domestic hot water tank kit (EKVSU180+260A)
The domestic hot water tank kit makes it easier to comply with
section G3 of the Building Regulations in the UK. It contains the
following components:
▪ Pressure relief valve
▪ Pressure reducing valve
▪ Expansion vessels (1 and 2)
▪ Tundishes
Possible combinations of indoor unit and domestic hot water kit:
Indoor unit Domestic hot water kit
EKVSU180A EKVSU260A
EHVH04SU18CB6W
EHVH08SU18CB6W
O —
EHVH08SU26CB6W
EHVH11SU26CB6W
EHVH16SU26CB6W
— O
For installation instructions, see the installation manual of the
domestic hot water tank kit, or this installer reference guide.
