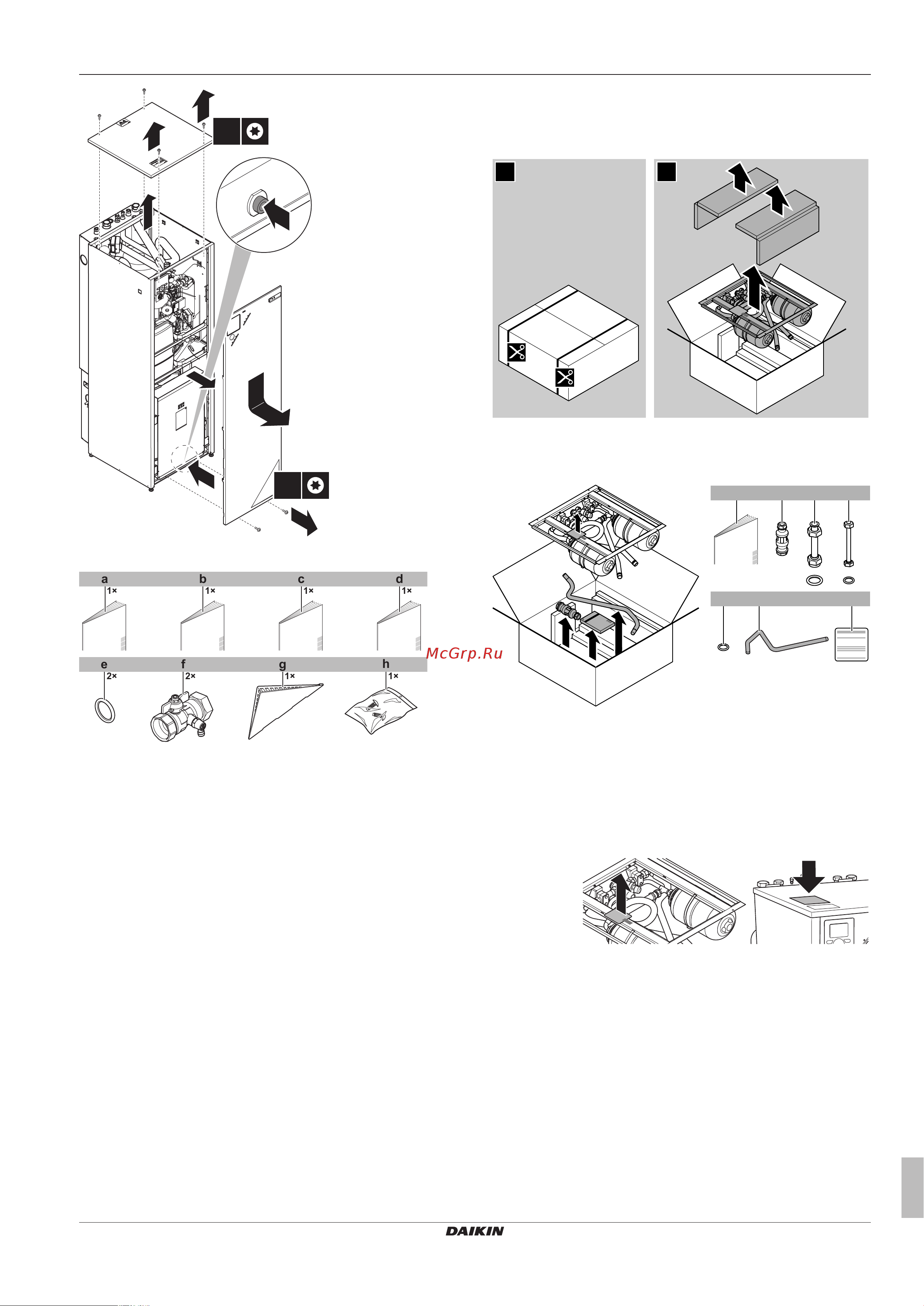

4 About the units and options
Installer reference guide
9
ERLQ004~008CA + EHVH04+08SU18+26CB6W
Daikin Altherma – Low temperature split
4P449978-1 – 2016.06
a~e+h
g
f
5
4
1
2
3
4
4×
2×
6 Remove the accessories.
1×
1× 1× 1× 1×
2× 1×2×
a b c d
f ge
h
a General safety precautions
b Addendum book for optional equipment
c Indoor unit installation manual
d Operation manual
e Sealing ring for shut-off valve
f Shut-off valve
g User interface cover
h 2 screws for fixing the user interface.
7 Reinstall the top panel and the front plate.
3.4 Domestic hot water tank kit
3.4.1 To unpack the domestic hot water tank kit
21
3.4.2 To remove the accessories from the
domestic hot water tank kit
1× 1× 2×
1×
a b c
1×
d
2× 1×
fe g
+ +
a Installation manual
b Tundish
c Water piping extension pieces for space heating IN and
OUT + sealings (38×27×2mm) (EKVSU260A only)
d Water piping extension piece for domestic hot water OUT +
sealing (24×17×2mm) (EKVSU260A only)
e Sealings for the flexible hoses of the domestic hot water
tank kit (24×17×2mm)
f Discharge pipe
g Identification label of the domestic hot water tank kit. Fix it
near the identification label of the indoor unit.
1
2
4 About the units and options
4.1 Overview: About the units and
options
This chapter contains information about:
▪ Identifying the outdoor unit
▪ Identifying the indoor unit
▪ Combining outdoor and indoor units
▪ Combining the outdoor unit with options
▪ Combining the indoor unit with options
