3 x Set-up and installation
Daikin Altherma EHS(X/H)
Daikin Solar tank with integrated interior heat pump unit
008.1420744 – 06/2015
Installation and maintenance manual
15

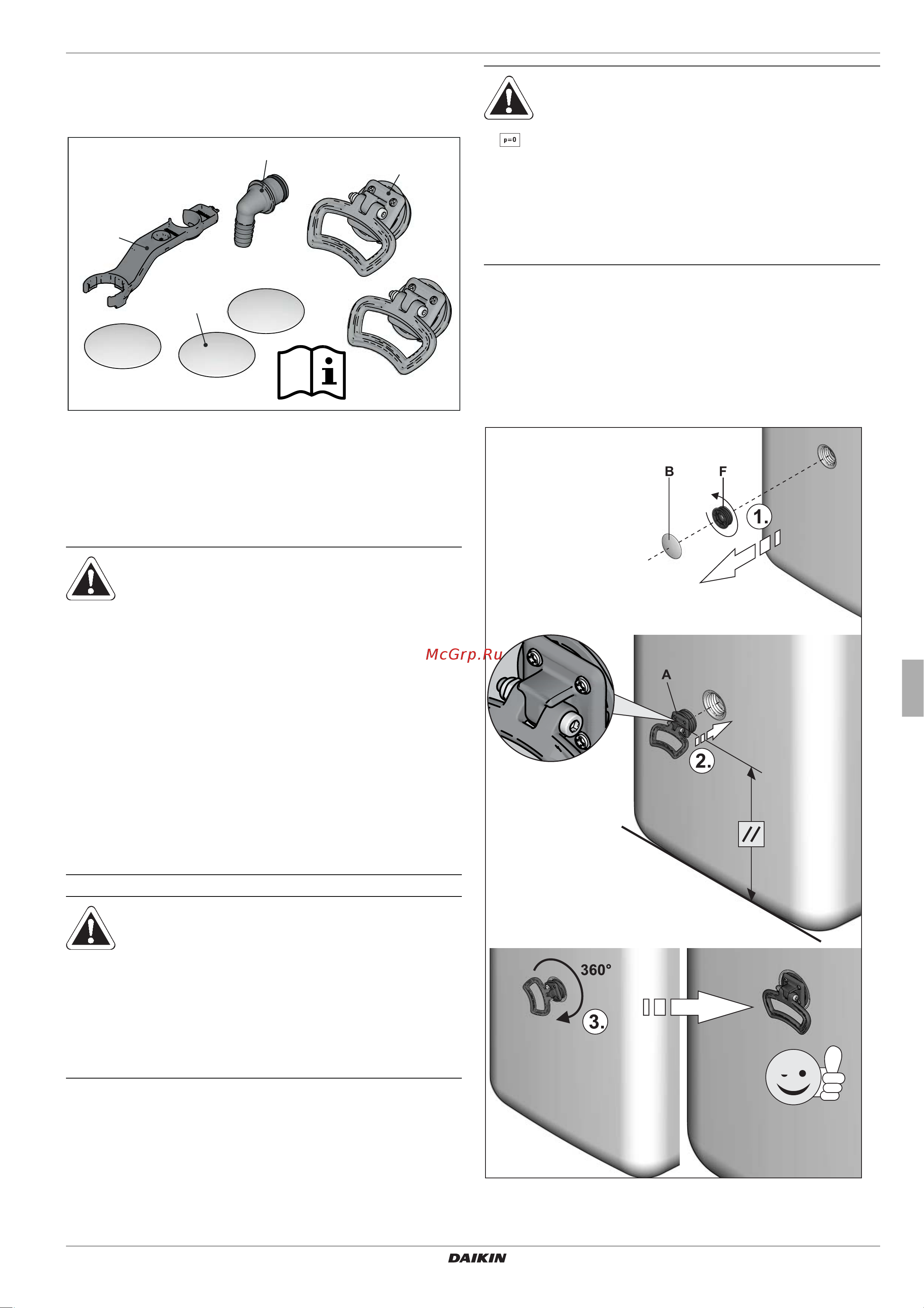

3.1.3 Scope of delivery
Daikin Altherma EHS(X/H)
Bag of accessories (see fig. 3-3)
A (2x)
B (3x)
C (1x)
D (1x)
A Handles (only required for
transport)
B Cover screen
C Hose connection piece for
safety overflow
D Spanner
Fig. 3-3 Content of bag of accessories
3.2 Set-up
CAUTION!
Onl
y erect the Daikin Altherma EHS(X/H) when a
sufficient ground load-bearing capacity, of
1050 kg/m² pl
us safety margin, has been assured.
The ground must be flat and level.
Outdo
or installation is not permitted.
The electronic control system must not be
subjected to atmospheric factors under any
circumstances.
The
storage tank must not be exposed to
continuous direct sunlight, as the UV radiation
and the effects of the weather will damage the
plastic.
The
Daikin Altherma EHS(X/H) must be installed in
a manner protected from frost.
Make sure that the supply company does not
provide corrosive domestic water.
Suitable water treatment may be required.
WARNING!
The plastic wall of the storage tank on the Daikin
Altherma EHS(X/H) may melt due to the effects of ex-
ternal heat (>80 °C) and, in the extreme case, can
catch fire.
Ere
ct the Daikin Altherma EHS(X/H) only at a
minimum distance of 1 m to other heat sources
(>80 °C) (e.g. electric heater, gas heater, chimney)
and flammabl
e materials.
CAUTION!
If the Daikin Altherma EHS(X/H) is not erected with
sufficient distance beneath the solar flat collectors
(top edge of storage tank is higher than the lower edge
of the solar panel), the unpressurised solar system in
the outdoor area will be unable to drain completely.
Erect
the Daikin Altherma EHS(X/H) with a
DrainBack solar connection at a sufficient depth to
the flat solar panels (observe the minimum
gradient in the solar connecting lines).
Remo
ve packing and dispose of it in an environment-friendly
manner.
Remove the cover plates on the storage tank (fig. 3-4, item B)
and unscrew the threaded pieces (fig. 3-4, item F) from the
apertures on which the handles are to be mounted (fig. 2-2 to
fig. 2-5, item 24).
Screw han
dles (fig. 3-4, item A) into the threaded holes that
are now free.
A Handle
B Cover screen
F Threaded piece
Fig. 3-4 Attach handles
