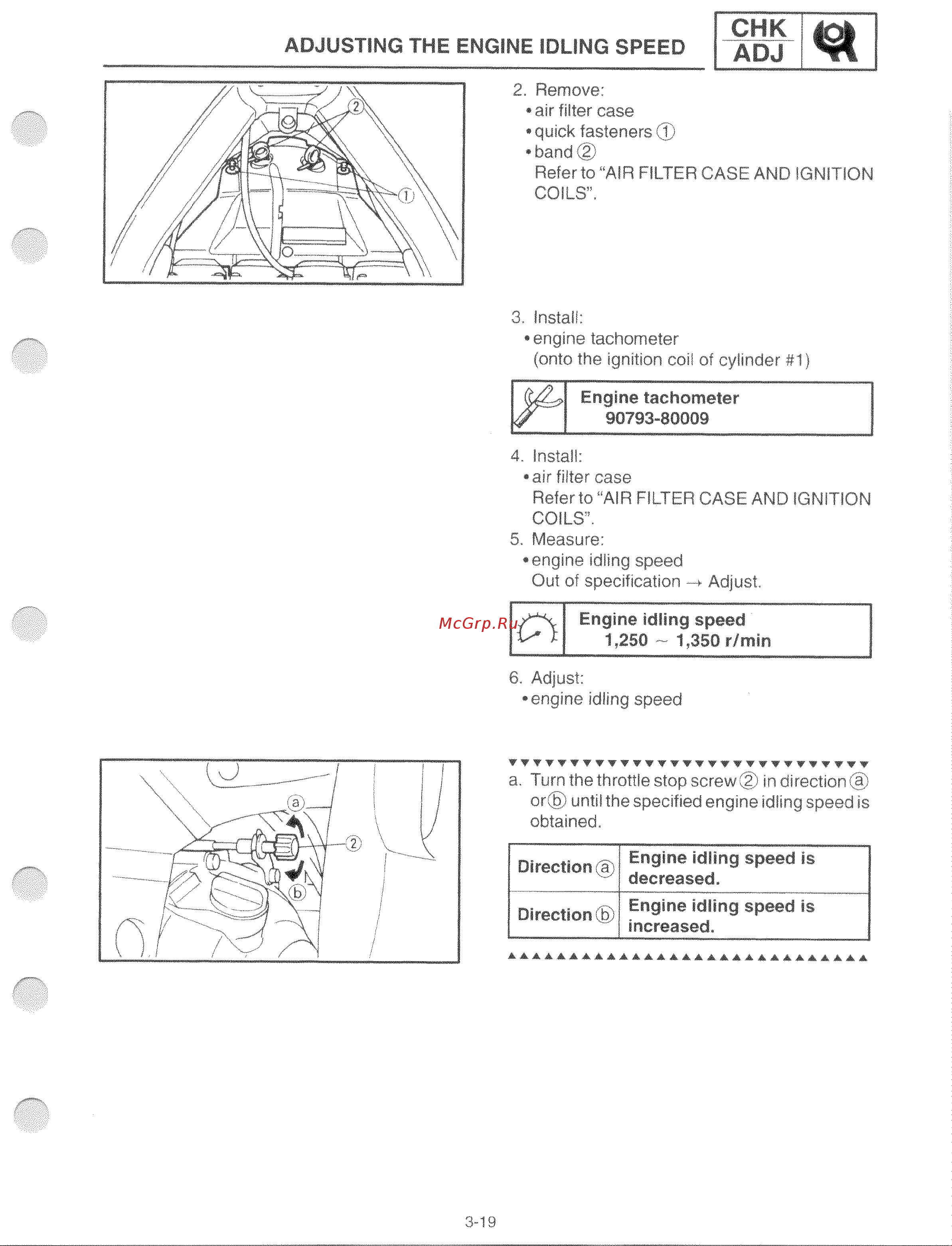

ADJUSTING THE ENGINE IDLING SPEED CHK ADJ 2 Remove air filter case quick fasteners 1 band 2 Refer to AIR FILTER CASE AND IGNITION COILS 3 Install engine tachorwter onto the ignition coil of cylinder 1 Engine tachometer 90793 80009 4 Install air filter case Refer to AIR FILTER CASE AND IGNITION COILS 5 Measure engine idling speed Out of specification Adjust z Engine idling speed A 1 250 1 350 r min 6 Adjust erngine idling speed v v v v a Turn the throttle stop scr or until the specified engine idling speed is obtained Direction â Engine idling speed is decreased Direction Engine idling speed is increased A A A A A A A A A A A A A A A A A A A A A A A A A A A A A
