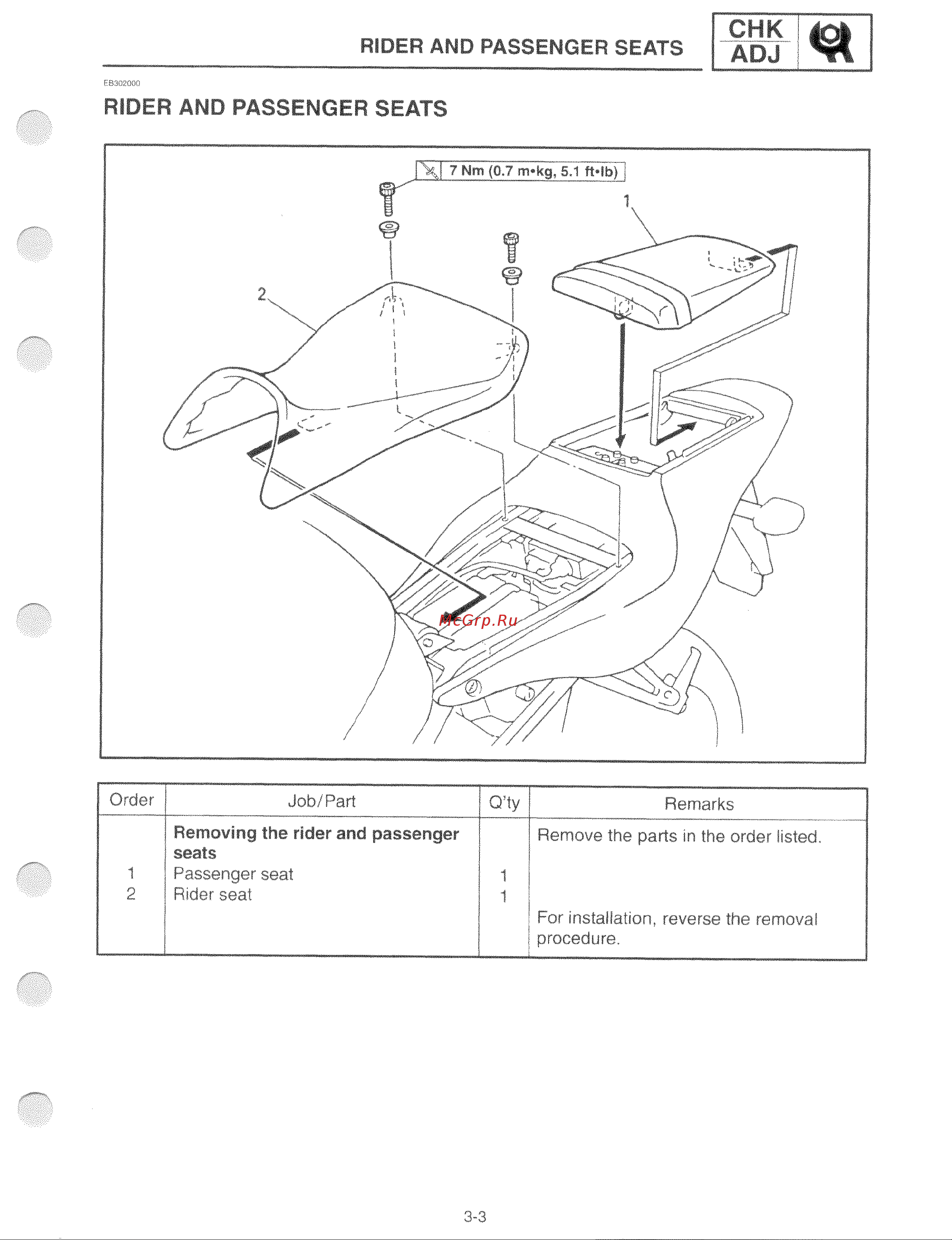

RIDER AND PASSENGER SEATS EB3G20ûâ RIDER AND PASSENGER SEATS Order 1 2 Job Part Removing the rider and passenger seats Passenger seat Rider seat Q ty Remarks Remove the parts in the order listed 1 1 For installation reverse the removal procedure j I
