12 Technical data

A subset of the latest technical data is available on the regional Daikin website (publicly accessible). The full set of latest technical data is

available on the Daikin extranet (authentication required).

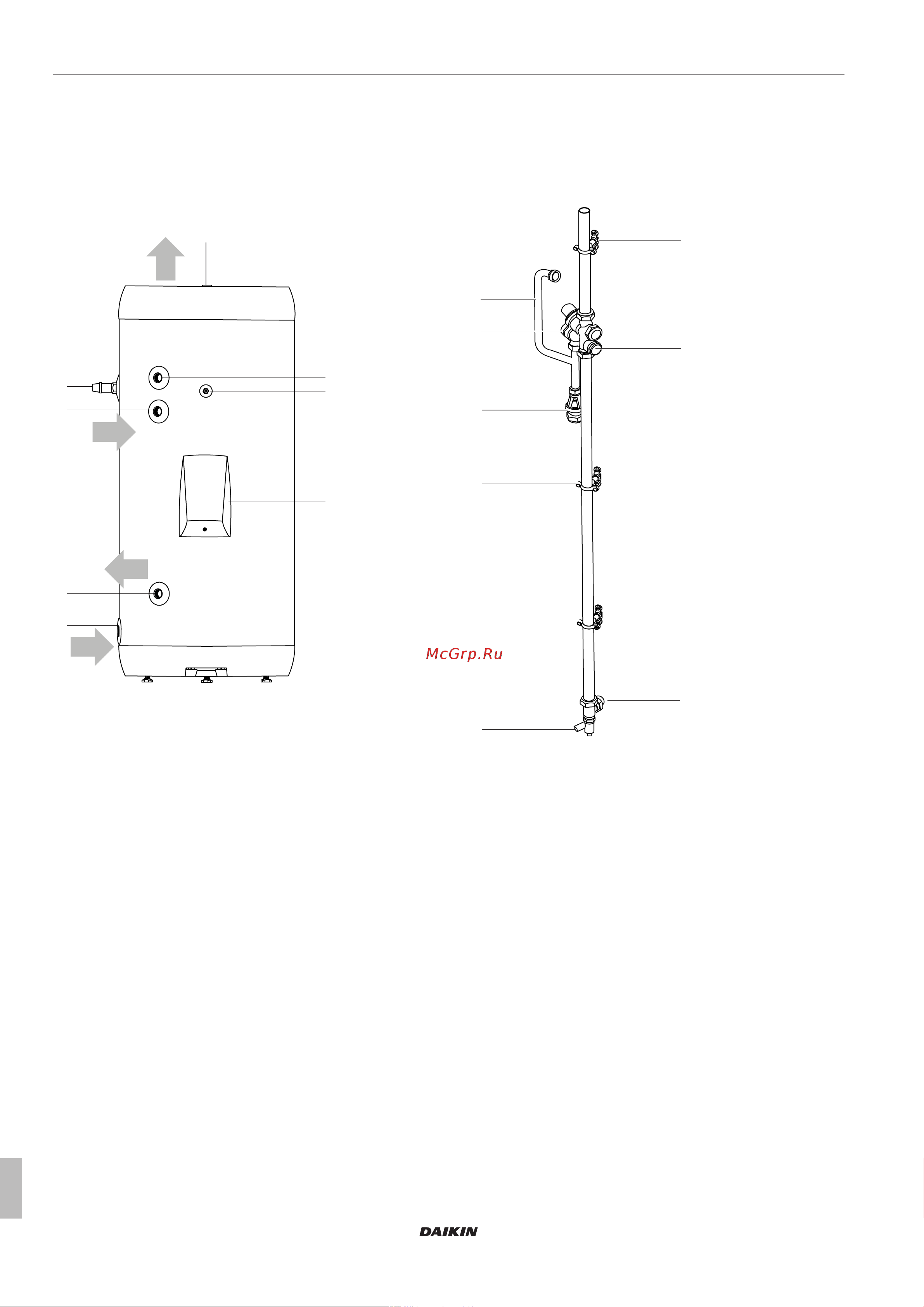

12.1 Components: Domestic hot water

tank

a Hot water outlet, 3/4" BSP

b Cold water inlet, 3/4" BSP

c Entering water from heat pump, 3/4" BSP

d Returning water to heat pump, 3/4" BSP

e Temperature and pressure relief valve

f Electrical connection box

g Recirculation hole, 3/4" BSP

h Thermistor inserting tube (ONLY for EKHWS200*)

12.2 Components: G3 kit

a Tundish pipe

b Inlet control group (pressure reducing valve with integrated

non return valve and line strainer)

c Tundish (15 mm x 22 mm)

d Drain

e Support bracket (included in the accessory bag)

f Expansion vessel connection

g Straight connection (22 mm × 3/4")
