Addendum to the documentation set 4P412945-1 – 2015.06
4

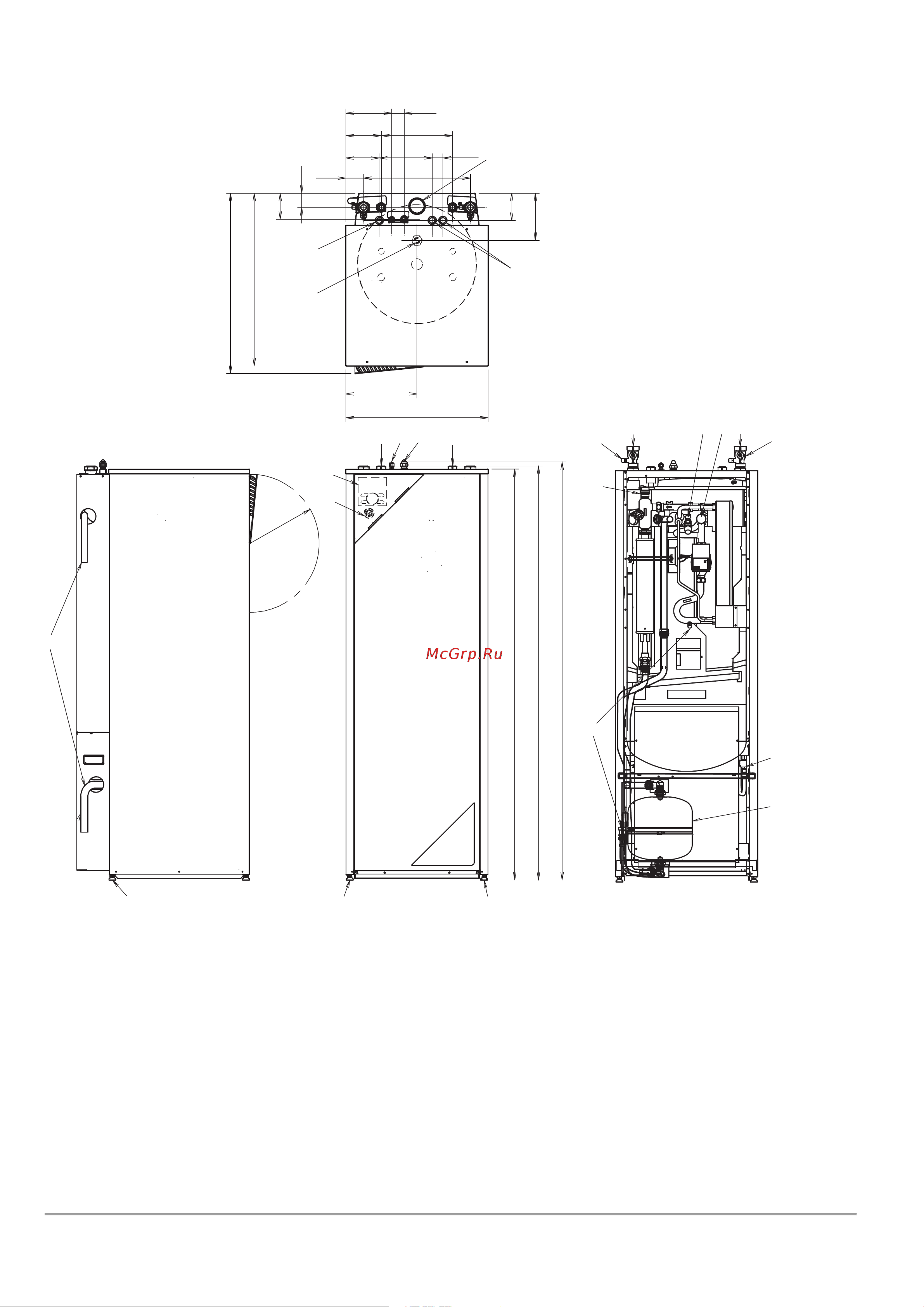

Dimensions and service space: Indoor unit
Dimensions
Pay special attention towards position of water piping connections and of refrigerant piping connections.
Service space
Service space of EHVH04CB3VF or EHVH08CB3VF units is same as service space of EHVH04CB3V and EHVH08CB3V units, and therefore not
considered in this addendum.
m
R210
300
600
194 52
150 301
141 223 45
45075
761
728
110
115
199
60
1732
1744
1762
r
n
s
t
ooo
c
p
l
ba
k
3D087616-1
e
f
g
hi
dj
g
q
u
a Gas pipe connection Ø15.9 mm
b Liquid pipe connection Ø6.35 mm
c Pressure gauge
d Safety valve
e Drain valve water circuit
f Air purge
g Stop valve with fill valve (included accessory)
h Water filter
i Water IN connection 1-1/4" female British standard pipe thread
j Water OUT connection 1-1/4" female British standard pipe thread
k Tank IN connection 1" female British standard pipe thread
l Tank OUT connection 1" female British standard pipe thread
m Control wiring intake (Ø24 mm)
n Power supply wiring intake (Ø24 mm)
o Levelling feet
p User interface (included accessory)
q Drain valve tank circuit
r Recirculation connection G 1/2" female
Note 1: Typical field installation is according to local and
national regulations.
s Hole for recirculation piping or option wiring (Ø62 mm)
t Drain outlet (unit+safety valve)
u Flow-through vessel (12 l)
