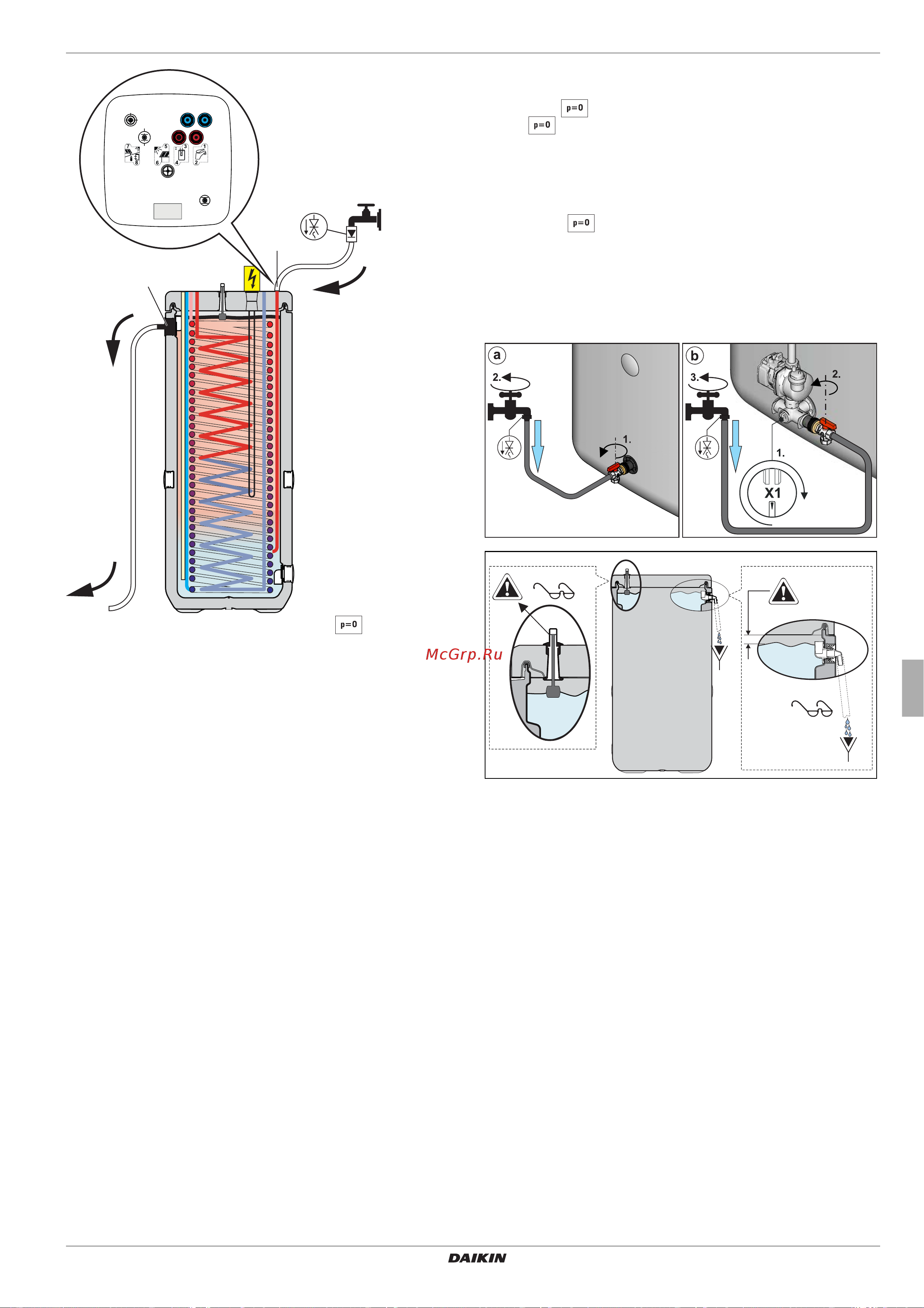

Fig. 3-4 Filling the buffer storage tank - without solar system and

without KFE filling connection

3 x Set-up and installation

Daikin EKHWP300+500

Daikin High-performance hot water storage tank

008.1618744 – 08/2015

Installation and maintenance manual

EKHWP hot water storage tank with solar system

● Install KFE filling connection (accessory KFE BA):

a) Wi

th solar system: On the connection bracket of the

regulation and pump unit (EKSRPS3).

b) With solar system: On the filling and draining connection

of the Daikin EKHWP.

● Con

nect the filling hose with backflush prevention (1/2") to

the previously installed KFE filling connection.

● Only with

solar system:

Adjust the valve insert on the connecting angle so that the

path to the filling hose is opened (fig. 3-5).

● Open the KFE cock on th

e KFE filling connection and the

cold water inlet and fill the storage tank on the Daikin EKHWP

until water comes out of the safety overflow (fig. 3-5, 

item 5).

Fig. 3-5 Filling the buffer storage tank - with KFE filling connection
