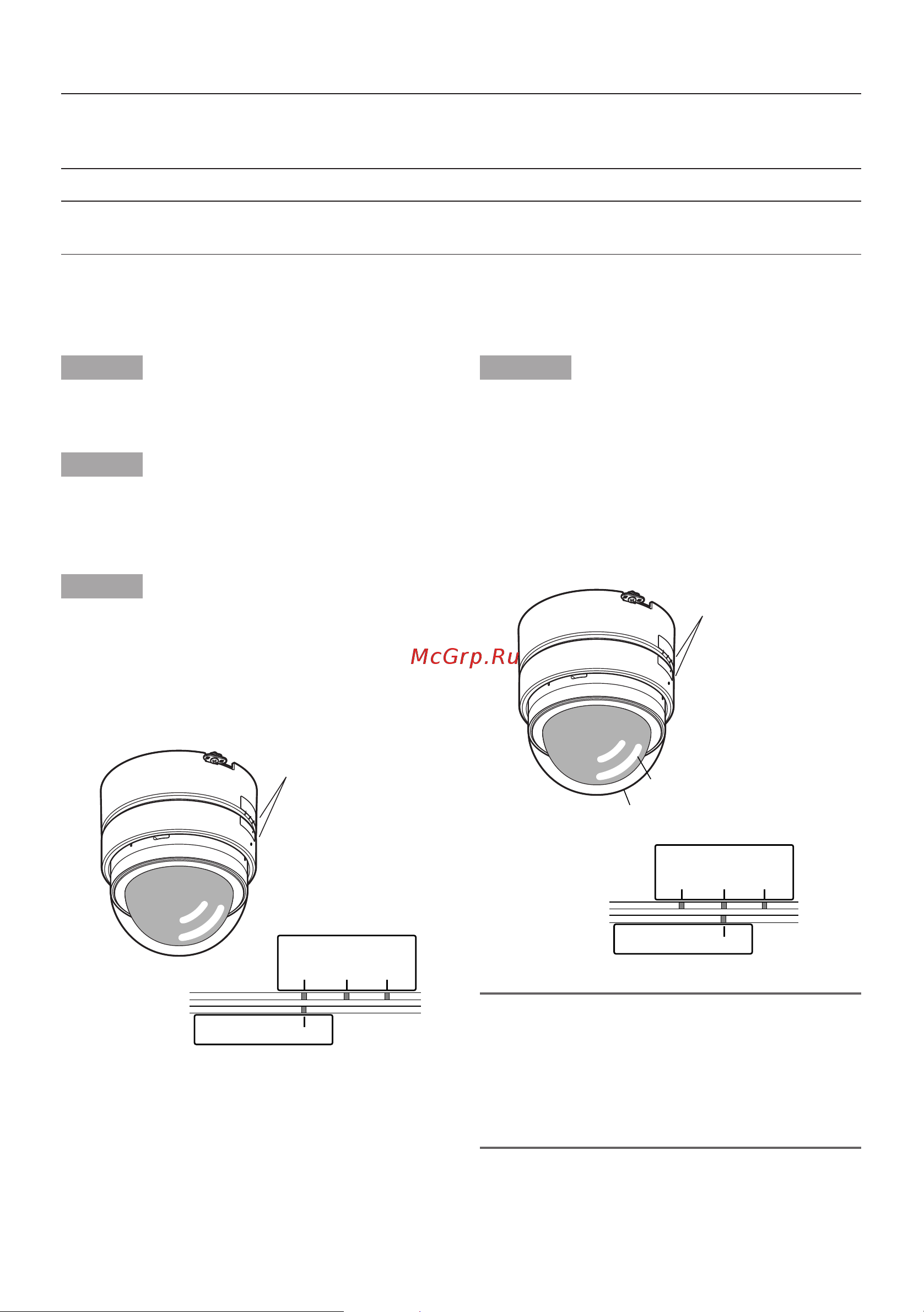

Step 7
Turn on the power of the camera.
Step 8
Adjust angular field of view and focus.
(☞ pages 26 and 27)
Step 9
Attach the dome cover to the main body.
Insert the dome cover into the camera body
so that the "I" mark of the dome cover is
aligned with the "INSERT" position.
Step 10
Adjust images using a video monitor.
Rotate the dome cover clockwise until the
indication "❘" reaches the position "ADJUST".
Then, rotate the clear dome from side to side
while monitoring images on the video monitor
to find a place where images are displayed
without vignetting.
Important:
When adjusting images by accessing the
inside the dome cover, make sure that
the indication "❘" is at the position
"ADJUST". Otherwise, it may damage the
camera and cause a malfunction.
19
The mounting requirements are shown as follows.
* Make sure that the installed mount bracket can support more than 5 times of the weight of
the camera.
Dome cover lock
marker
IN
S
E
R
T
A
D
J
U
S
T
L
O
C
K
D
O
C
O
ME
V
E
R
D
O
M
E
C
O
V
E
R
DOME COVER
INSERT ADJUST LOCK
DOME COVER
Inner dome
Clear dome
Dome cover lock marker
IN
S
E
R
T
A
D
J
U
S
T
L
O
C
K
D
O
C
O
ME
V
E
R
D
O
M
E
C
O
VE
R
DOME COVER
DOME COVER
INSERT ADJUST LOCK
Mounting place
Ceiling/wall
Model
(Direct mounting)
Recommended
screw
M4 or equivalent
Number of
screws
4 pcs.
196 N {20 kgf}
Ceiling WV-Q167
(Approx. 285 g)
––*
Minimum pull-
out strength of
a single screw
