Nissan Note [6/14] Steering wheel

PS-6

STEERING WHEEL

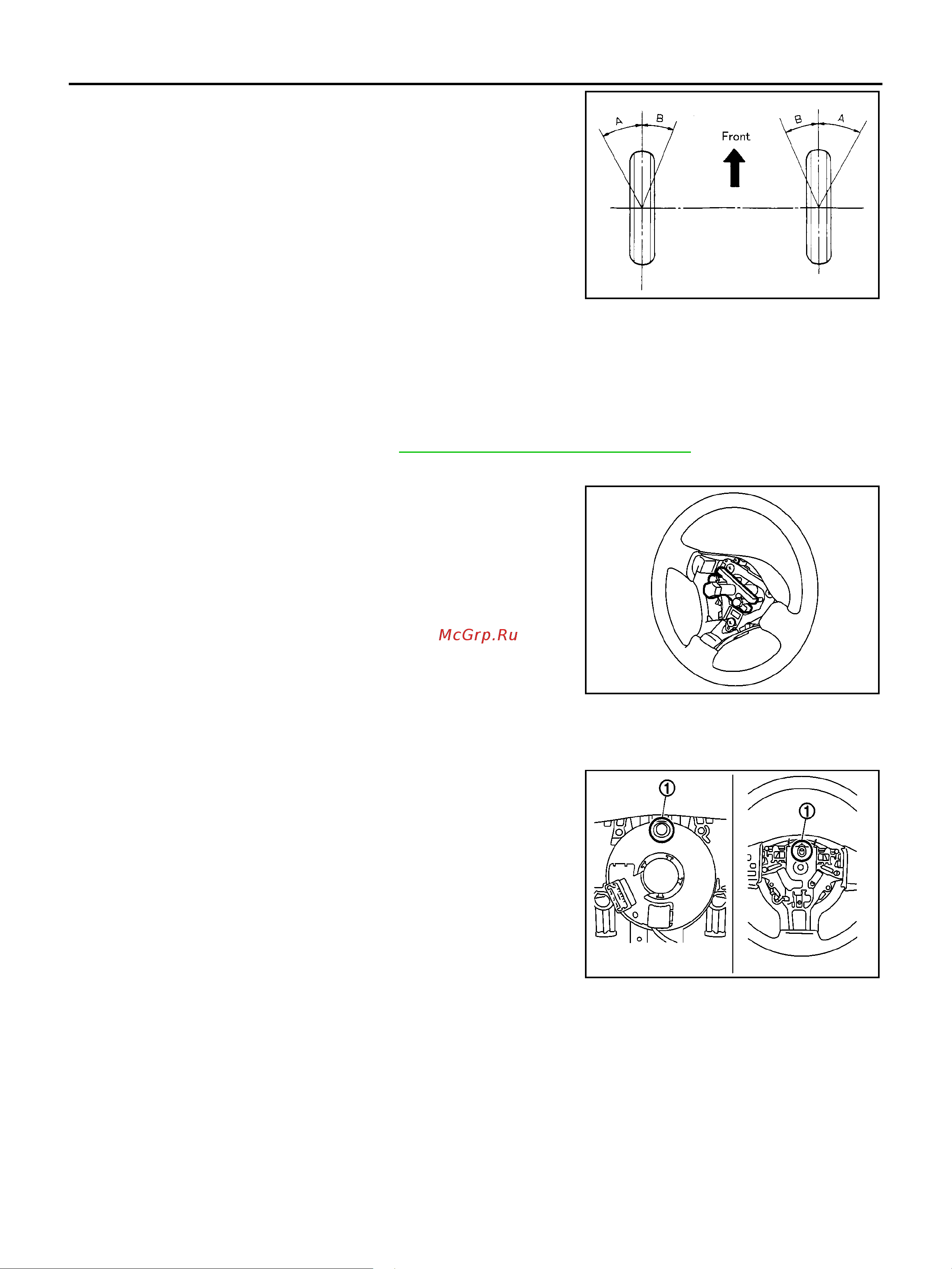

● With the engine at idle, turn steering wheel from stop to stop and

measure the steering angles.

● Steering angles are not adjustable. If any of the steering angles

is different from the specified value, check steering gear, column

and front suspension components for wear or damage. If any

non-standard condition exists, replace if necessary.

Removal and Installation

BGS0001T

REMOVAL

NOTE:

When reconnecting spiral cable, fix cable with a tape so that fixing case and rotating part keep aligned. this will

omit neutral position alignment procedure during spiral installation.

1. Set vehicle to the straight-ahead position.

2. Remove driver air bag module. Refer to SRS-36, "

DRIVER AIR BAG MODULE" .

3. Remove steering wheel lock bolt after steering is locked.

4. Remove steering wheel using the steering wheel puller (SST:

ST27180001).

INSTALLATION

Reverse the removal procedure for installation attentive to the following operation.

NOTE:

Make sure that the spiral cable is in the neutral position. The neutral

position is detected by turning left 2.6 revolutions from the right end

position and ending with the locating pin (1) at the top.

CAUTION:

Do not run spiral cable idle needlessly. And do not turn it more

than necessary (or it leads to disconnection of the cable).

Inner wheel : 38° +1°

-3°

Outer wheel : 33°

SGIA0055E

SRS823

MGIB9046E
