Nissan Note [4/8] Aluminum wheel

WT-4

ROAD WHEEL

PFP:40300

Inspection

BES0003A

ALUMINUM WHEEL

1. Check tyres for wear and improper inflation.

2. Check wheels for deformation, cracks and other damage. If

deformed, remove wheel and check wheel runout.

a. Remove tyre from aluminum wheel and mount on a tyre balance

machine.

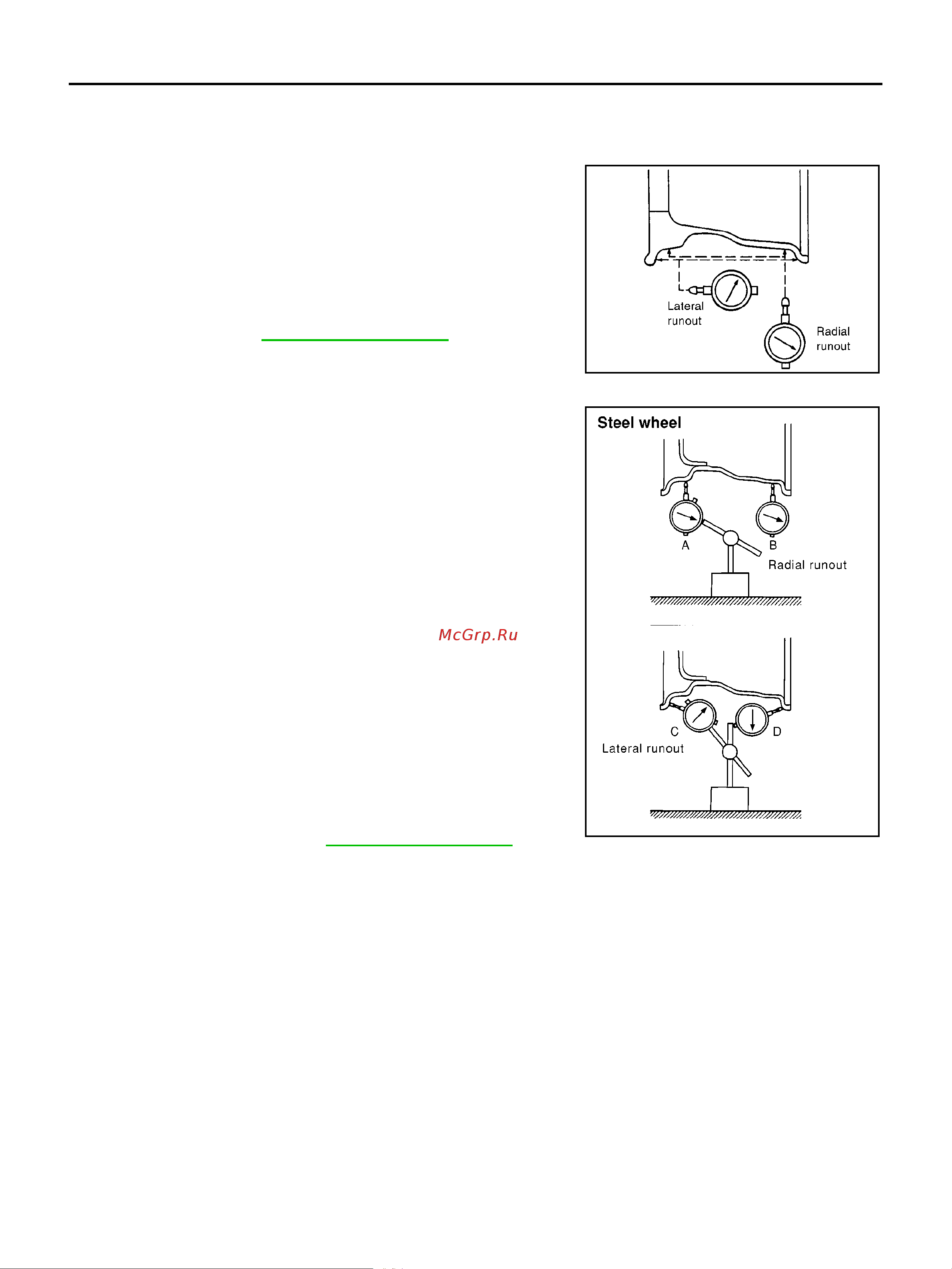

b. Set dial indicator as shown in the illustration.

STEEL WHEEL

1. Check tyres for wear and improper inflation.

2. Check wheels for deformation, cracks and other damage. If

deformed, remove wheel and check wheel runout.

a. Remove tyre from steel wheel and mount wheel on a tyre bal-

ance machine.

b. Set two dial indicators as shown in the illustration.

c. Set each dial indicator to 0.

d. Rotate wheel and check dial indicators at several points around

the circumference of the wheel.

e. Calculate runout at each point as shown below.

f. Select maximum positive runout value and the maximum nega-

tive value.

Add the two values to determine total runout.

In case a positive or negative value is not available, use the

maximum value (negative or positive) for total runout.

If the total runout value exceeds the limit, replace steel wheel.

Wheel runout (Dial indicator value):

Refer to WT-8, "

SERVICE DATA"

SFA975B

Radial runout = (A + B)/2 : 0.5 mm (0.020 in)

Lateral runout = (C + D)/2 : 0.8 mm (0.031 in)

Wheel runout:

Refer to WT-8, "

SERVICE DATA"

MDIA0001E
