WT-6
ROAD WHEEL AND TYRE ASSEMBLY

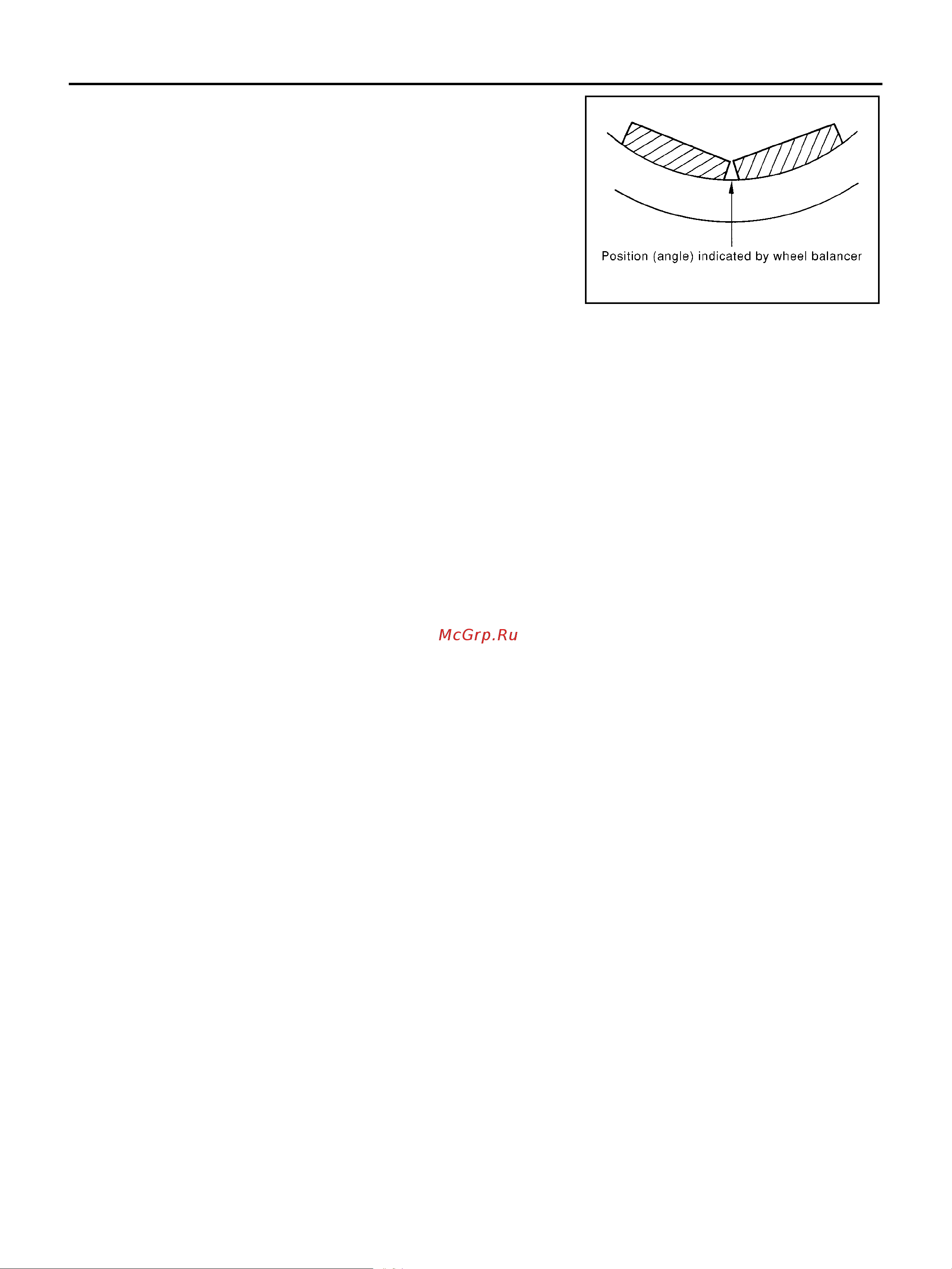

● If calculated value exceeds 50 g (1.76 oz), attach two weights
side by side, as shown in figure.
CAUTION:
When attaching two weights, do not attach them one on top of
the other.
3. Start the wheel balancer again.
4. As before, attach drive-in weight to inner side of road wheel,
according to amount and position (angle) of imbalance indicated
by wheel balancer.
5. Start wheel balancer. Check that residual imbalance amount is
10 g (0.35 oz) or less for both outer and inner sides.
● If residual imbalance exceeds 10 g (0.35 oz), then repeat procedure from start.
Balancing Wheels (Drive-in Weight Type)
BES0003C
WHEEL BALANCE ADJUSTMENT
1. Remove wheel from vehicle.
2. Set road wheel on wheel balancer and start balancer machine.
● Set with top/bottom reversed from vehicle installation position. After setting wheel on wheel balancer,
make mark on top surface of wheel.
● Adjust wheel balance using a wheel balancer with straight cone attachment. Be sure cone contacts
reverse side of wheel.
● If a general-purpose taper cone must be used to adjust wheel balance, place cone against reverse side of
wheel and support it.
● Resinhammermustbeusedtodriveinbalanceweights.
CAUTION:
Do not reuse balance weights after they are removed. Be sure to use new Nissan genuine weights
designed for use with steel wheels.
3. Remove wheel from wheel balancer.
4. Install wheel to vehicle, with mark on lower side.
● Minimize imbalance by keeping same relative positions between hub-wheel contact points when installing
to vehicle as when adjusting wheel balance.
CAUTION:
So as not to deform wheel, install by tightening at opposite angles, in 2 - 3 steps.
Permissible amount of residual imbalance
Dynamic (at lug) : 10 g (0.35 oz) or less (one side)
Static (at lug) : 20 g (0.71 oz) or less
Maximum balance weight correction : 100 g (3.53 oz)
MDIA0003E
Permissible amount of residual imbalance
Dynamic (at lug) : 10 g (0.35 oz) or less (one side)
Static (at lug) : 20 g (0.71 oz) or less
Maximum balance weight correction : 60 g (2.12 oz)
Tightening torque
of wheel nut
: 105 N·m (11 kg-m, 77 ft-lb)
